| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EYBS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Tumbler Vibratory Sieve | Materials: | 304/316 Stainless Steel |
|---|---|---|---|
| Feeding Particle Size: | 5--15（mm） | Usage: | Removing Impurities And Grading |
| Application Industry: | Powder, Granules, Lump Materials | Layer: | 1~5 |
| Capacity: | 6（t/h） | Motor: | ABB Schneider Electric |
| Highlight: | Stainless Steel Round Tumbler Vibratory Sieve,Metal Round Tumbler Vibratory Sieve,Stainless Steel Tumbler Screening Machine |
||

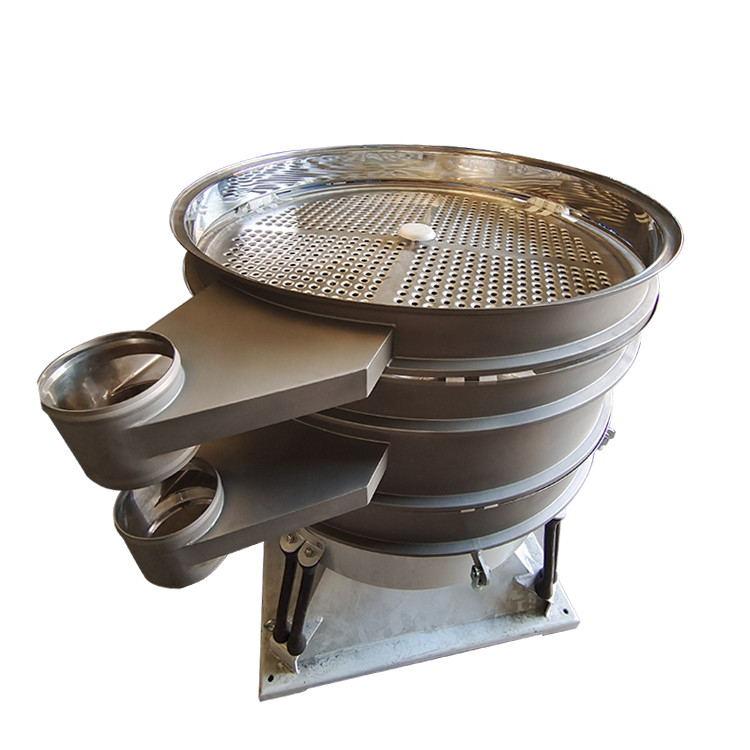

The circular swing screen is a new type of screening equipment that uses a motor to rotate the screen body at a certain angle to screen materials. It is mainly composed of screen box, screen frame, screen mesh, motor, etc. The screen is the core part of the circular swing screen and is usually made of high-strength, high-wear-resistant materials, such as stainless steel, high-strength manganese steel, etc.
The working principle of the circular swing screen is that it is driven by a motor and through the action of the eccentric wheel, so that the screen frame rotates at a certain angle to screen materials repeatedly. The screening process of materials mainly depends on the size of the screen mesh for separation. Large particle materials are screened to one side of the screen frame, while small particle materials enter the next layer through the screen, thereby achieving the purpose of screening.
|
Model
|
Deck
|
Equipment diameter
|
Screen mesh Area(m2)
|
Frequency
(r/min) |
Screen slope
(degree) |
Sreen mesh
|
Amplitude
(mm) |
Power
(kw) |
|
EYBS-600
|
1-5 |
600mm
|
0.28
|
220-280
|
0-10
|
20microns
to 20 mm
|
20-70
|
0.75
|
|
EYBS-1000
|
1000mm
|
0.66
|
220-280
|
0-10
|
20-70
|
1.5
|
||
|
EYBS-1200
|
1200mm
|
0.98
|
220-280
|
0-10
|
20-70
|
2.2
|
||
|
EYBS-1500
|
1500mm
|
1.67
|
220-280
|
0-10
|
20-70
|
3
|
||
|
EYBS-1800
|
1-4
|
1800mm
|
2.37
|
220-280
|
0-10
|
20-70
|
4
|
|
|
EYBS-2000
|
2000mm
|
2.89
|
220-280
|
0-10
|
20-70
|
4
|
||
|
EYBS-2600
|
2600mm
|
5.3
|
220-280
|
0-10
|
20-70
|
5.5
|
||
|
Machine can be customized based on your need
|
||||||||
Circular swing screens are widely used in various industries, such as chemical industry, food, pharmaceutical, mining, etc. Especially in some fields that require fine screening, such as API screening in the pharmaceutical industry, catalyst screening in the chemical industry, additive screening in the food industry, etc., the advantages of the circular swing screen have been fully utilized.
1. High efficiency: The circular swing screen has high screening efficiency and can quickly separate materials according to particle size.
2. High precision: Because the screen is made of high-strength, high-wear-resistant materials, it can ensure the accuracy and stability of screening.
3. Wide scope of application: The circular swing screen is suitable for screening various materials and can meet the needs of different industries.
4. Easy to maintain: The circular swing screen has a simple structure, easy operation and low maintenance cost.
5. Environmental protection and energy saving: The circular swing screen has low noise and vibration, and has less impact on the environment.

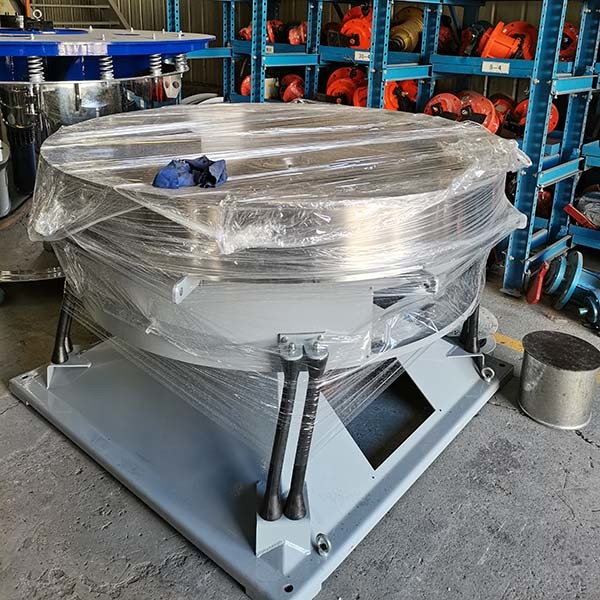

1. Package:
Choose a wooden box with sturdy packaging materials to provide adequate protection and support.
2. Logo and documentation:
Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:
Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.
