| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EYBS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Tumbler Vibratory Sieve | Usage: | Removing Impurities And Grading |
|---|---|---|---|
| Application Industry: | Powder, Granules, Lump Materials | Feeding Particle Size: | 5--15（mm） |
| Layer: | 1~5 | Capacity: | 6（t/h） |
| High Light: | 500 Mesh Tumbler Vibratory Sieve,Tumbler Vibratory Sieve Sorting Machine,Black Soldier Fly Farm Equipment |
||

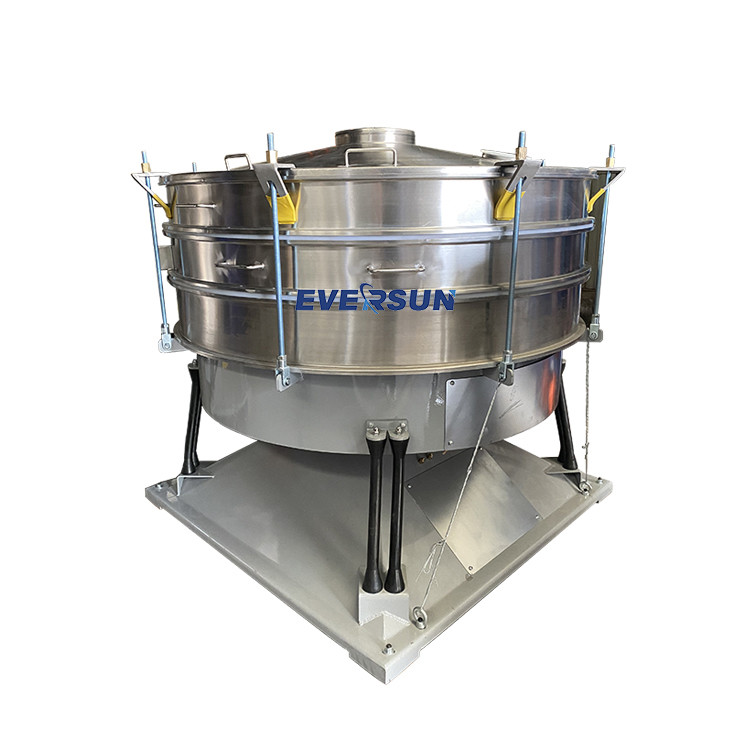

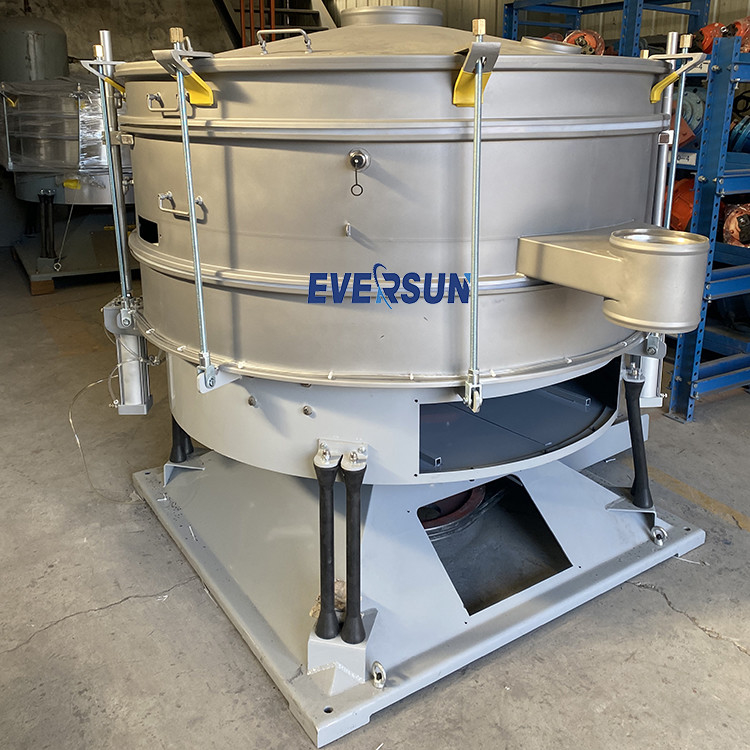

Black Soldier Fly Farm Equipment Tumbler Vibratory Sieve is a screening equipment specially designed for use in black soldier fly farms. Black soldier fly farming is a sustainable agricultural practice widely used in organic waste disposal and feed production. It is an efficient screening device that combines rocking motion and vibration technology to achieve screening and classification of materials. It uses a circular screen and rocking vibration to effectively separate black soldier fly larvae from other solid materials.
Using Tumbler Vibratory Sieve for screening operations in black soldier fly farming can improve work efficiency, reduce labor costs, and achieve efficient resource utilization. However, specific equipment selection and operating parameters should be selected and adjusted according to actual needs and material characteristics to ensure the best screening effect.
|
Model
|
Deck
|
Equipment diameter
|
Screen mesh Area(m2)
|
Frequency
(r/min) |
Screen slope
(degree) |
Sreen mesh
|
Amplitude
(mm) |
Power
(kw) |
|
EYBS-600
|
1-5 |
600mm
|
0.28
|
220-280
|
0-10
|
20microns
to 20 mm
|
20-70
|
0.75
|
|
EYBS-1000
|
1000mm
|
0.66
|
220-280
|
0-10
|
20-70
|
1.5
|
||
|
EYBS-1200
|
1200mm
|
0.98
|
220-280
|
0-10
|
20-70
|
2.2
|
||
|
EYBS-1500
|
1500mm
|
1.67
|
220-280
|
0-10
|
20-70
|
3
|
||
|
EYBS-1800
|
1-4
|
1800mm
|
2.37
|
220-280
|
0-10
|
20-70
|
4
|
|
|
EYBS-2000
|
2000mm
|
2.89
|
220-280
|
0-10
|
20-70
|
4
|
||
|
EYBS-2600
|
2600mm
|
5.3
|
220-280
|
0-10
|
20-70
|
5.5
|
||
|
Machine can be customized based on your need
|
||||||||
1. Swinging vibrating screen design: This equipment adopts a swinging vibrating screen design, which can effectively separate black soldier fly larvae from other solid materials through swinging motion and vibration technology.
2. Efficient screening capacity: Tumbler Vibratory Sieve has efficient screening capacity, which can quickly and accurately screen and classify black soldier fly larvae to improve production efficiency.
3. Fine separation capability: The equipment uses a circular screen, which can screen out smaller-sized black soldier fly larvae to achieve fine separation and ensure product quality.
4. Durable and easy to maintain: The equipment is made of high-quality materials and has good durability and long life.
5. Suitable for a variety of application scenarios: Tumbler Vibratory Sieve is widely used in black soldier fly farms and can be used in multiple application scenarios such as larvae separation, feed production, liquid discharge and waste disposal.
The application of this equipment in black soldier fly farms mainly includes the following aspects:
1. Larvae separation: By using the Tumbler Vibratory Sieve, the larvae in the black soldier fly breeding process can be separated from waste and residues for subsequent processing and utilization.
2. Feed production: The swinging vibrating screen can be used to separate black soldier fly larvae from other feed materials in order to obtain high-protein black soldier fly larvae as feed additives to meet the nutritional needs of poultry, livestock and other animals.
3. Liquid discharge: During the breeding process of black soldier flies, liquid waste may be produced. Tumbler Vibratory Sieve can be used to separate solid particles from liquid so that the liquid part can be further processed or recycled.
4. Waste treatment: Black soldier fly farms usually deal with a large amount of organic waste, and the swing vibrating screen can be used to screen and classify the solid waste for subsequent composting, fermentation or other processing processes.
1. Package:
Choose a wooden box with sturdy packaging materials to provide adequate protection and support.
2. Logo and documentation:
Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:
Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.
FAQ
Q1: Is the Tumbler Vibratory Sieve customizable?
A: Yes, the Tumbler Vibratory Sieve can be customized to suit specific requirements. It can be tailored based on the scale of the farm, material characteristics, and process requirements.
Q2: How do I maintain the Tumbler Vibratory Sieve?
A: Maintenance of the Tumbler Vibratory Sieve typically involves regular cleaning of the equipment, including the sieve screen, to prevent clogging and ensure optimal performance. Additionally, any necessary repairs or replacements should be carried out as needed.
Q3: Can the Tumbler Vibratory Sieve be used for other applications besides Black Soldier Fly farming?
A: While the Tumbler Vibratory Sieve is specifically designed for Black Soldier Fly farming, its principles of operation and features may be applicable to other similar separation processes in different industries. However, it is recommended to consult with the manufacturer or an expert to determine its suitability for specific applications.
