| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EYBS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Tumbler Vibrating Sieve Equipment | Sieve Hole Size: | 0.028-10（mm） |
|---|---|---|---|
| Layer: | 1~5 | Screen Cleaning Method: | Bouncing Ball/ultrasonic System |
| Application Industry: | Food, Chemical, Agriculture, Mining , Etc. | Capacity: | 6（t/h） |
| Highlight: | Automated Tumbler Vibrating Sieve Equipment,Coal Particles Tumbler Vibrating Sieve Equipment,Coal Particles Tumbler Vibrating Sieve Equipment |
||

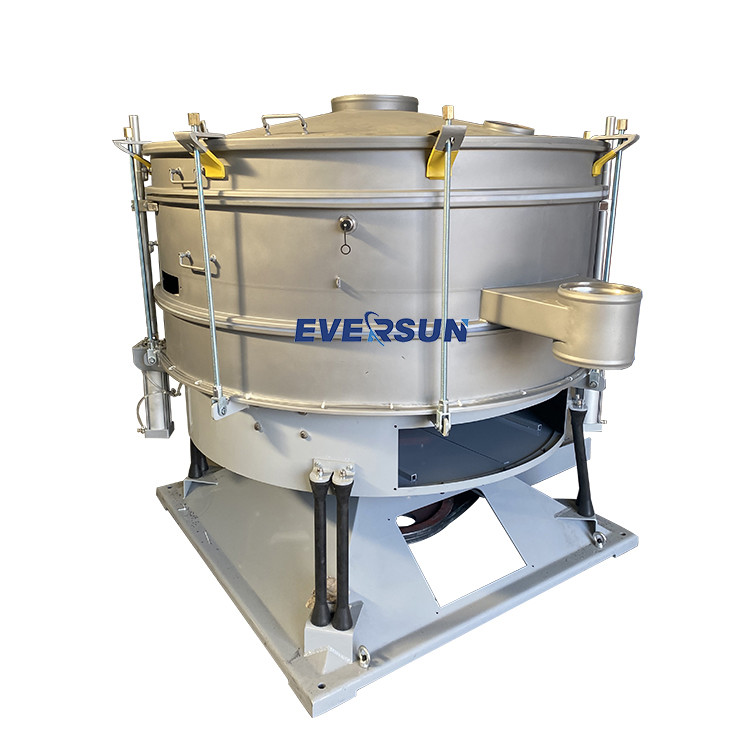

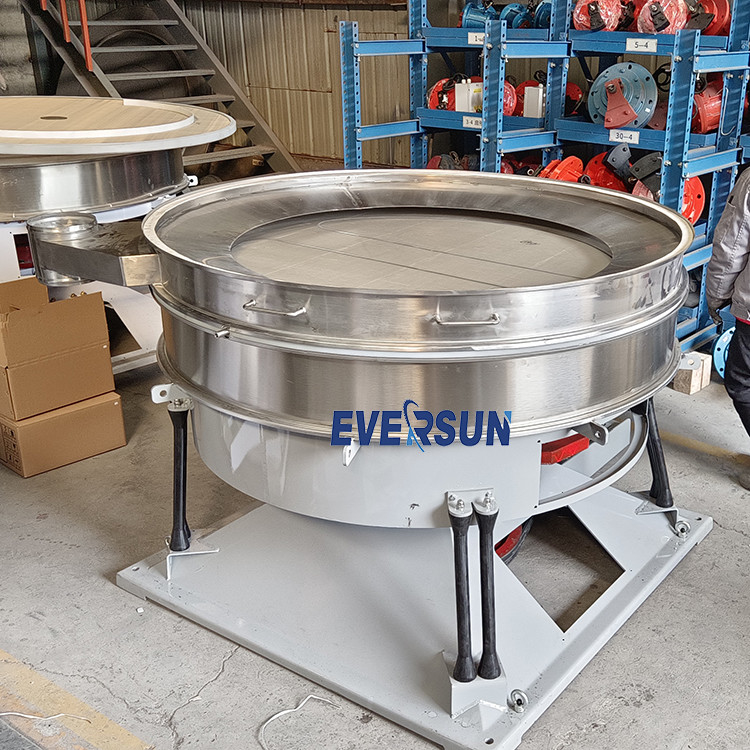

Tumbler Vibrating Sieve Equipment is a high-efficiency screening equipment, often used for screening, classifying and separating powder, flake and granular materials. It is suitable for chemical, food, pharmaceutical, mining, building materials and other industries.
The equipment uses the principle of rocking motion to make the material reciprocate on the screen through the centrifugal force and inertial force generated by vibration. At the same time, the equipment is also equipped with a specially designed screen and multi-layer screen surface structure to increase the screening effect and processing capacity.Through rocking motion and optimized screening structure, the equipment can achieve efficient and precise screening and improve production efficiency.
|
Model
|
Deck
|
Equipment diameter
|
Screen mesh Area(m2)
|
Frequency
(r/min) |
Screen slope
(degree) |
Sreen mesh
|
Amplitude
(mm) |
Power
(kw) |
|
EYBS-600
|
1-5 |
600mm
|
0.28
|
220-280
|
0-10
|
20microns
to 20 mm
|
20-70
|
0.75
|
|
EYBS-1000
|
1000mm
|
0.66
|
220-280
|
0-10
|
20-70
|
1.5
|
||
|
EYBS-1200
|
1200mm
|
0.98
|
220-280
|
0-10
|
20-70
|
2.2
|
||
|
EYBS-1500
|
1500mm
|
1.67
|
220-280
|
0-10
|
20-70
|
3
|
||
|
EYBS-1800
|
1-4
|
1800mm
|
2.37
|
220-280
|
0-10
|
20-70
|
4
|
|
|
EYBS-2000
|
2000mm
|
2.89
|
220-280
|
0-10
|
20-70
|
4
|
||
|
EYBS-2600
|
2600mm
|
5.3
|
220-280
|
0-10
|
20-70
|
5.5
|
||
|
Machine can be customized based on your need
|
||||||||
1. High-quality screening: The tumbler vibrating sieve equipment uses high-quality screens and screening panels to achieve high-precision, high-quality screening results and ensure that products meet specifications.
2. Low noise and low vibration: The tumbler vibrating sieve equipment adopts advanced vibration reduction technology and structural design, which reduces noise and vibration levels and provides a better working environment.
3. Adjustable parameters: The tumbler vibrating sieve equipment has adjustable vibration parameters, such as amplitude, vibration frequency and screen angle, to meet different materials and screening requirements.
4. High durability: The tumbler vibrating sieve equipment is made of wear-resistant and corrosion-resistant materials, with long service life and stable performance.
Tumbler Vibrating Sieve Equipment is widely used in many fields and industries, including but not limited to the following applications:
1. Chemical industry: used for screening and classifying chemical raw materials, such as plastic particles, resin, pigments, rubber, etc.
2. Food industry: suitable for screening and separation in food processing, such as flour, starch, sugar powder, seasonings, coffee, tea, etc.
3. Pharmaceutical industry: used for screening and grading pharmaceutical raw materials, such as pharmaceutical powders, tablets, pharmacies, etc.
4. Mining and metallurgical industry: suitable for screening and classification of ore, coal, metal powder and other materials.
Building materials industry: used for screening and classifying sand, cement, concrete, limestone and other materials.
5. Agriculture and feed industry: suitable for screening and separation of pellet feed, grains, seeds, fertilizers and other materials.
1. Package:
Choose a wooden box with sturdy packaging materials to provide adequate protection and support.
2. Logo and documentation:
Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:
Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.
FAQ
Q1: What is the screening accuracy of the tumbler vibrating sieve?
A: The screening accuracy of the tumbler vibrating sieve depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q2: How to replace and clean the screen of the tumbler vibrating sieve?
A: Screen replacement and cleaning operations are relatively simple. Generally speaking, first turn off the power, disassemble the screen frame, take out the old screen or clean it, then install a new screen or put the cleaned screen back on the screen frame, and finally reinstall the screen frame. Can.
Q3: What should be paid attention to in the maintenance of tumbler vibrating sieve?
A: In terms of maintenance, the screen should be cleaned regularly to prevent clogging; check the working condition of the vibration drive and transmission device to ensure normal operation; pay attention to the lubrication and sealing of the screen machine.
Q4: How to adjust the vibration parameters of the tumbler vibrating sieve?
A: The vibration parameters of the tumbler vibrating sieve include swing frequency, amplitude and screen angle. These parameters can be adjusted according to the characteristics of the material and screening requirements.
