Stainless Steel Rotary Tumbler Vibrating Screening Machine Spice Tumbler Screen

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: EYBS
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Tumbler Vibrating Screening Machine Number Of Revolutions: 180-260 ( R/min)
Layer: 1~5 Diameter: 200-2600mm
Screen Material: Woven Wire Cloth Capacity: 1-25(t/h)
Highlight:

Spice Tumbler Vibrating Screening Machine

,

Stainless Steel Tumbler Vibrating Screening Machine

,

Rotary Tumbler Vibrating Screening Machine


Product Description

Stainless Steel Rotary Tumbler Vibrating Screening Machine Spice Tumbler Screen

Product Introduction

Rotary Tumbler Vibrating Screening Machine is a commonly used vibrating screening equipment, suitable for screening and classifying a variety of granular materials, such as ores, powders, granules, chemical raw materials, etc. It is widely used in production lines in mining, metallurgy, chemical industry, building materials, food and other industries. It achieves efficient screening and separation of materials through the combination of a rotating drum and a vibration device.

Rotary tumbler vibrating screens usually have a multi-layer screen structure. The screens at each level have different hole sizes, which can achieve precise grading and screening of materials. Multi-layer screen design improves screening efficiency and product consistency.

Product Parameter

Model
Deck
Equipment diameter
Screen mesh Area(m2)
Frequency
(r/min)
Screen slope
(degree)
Sreen mesh
Amplitude
(mm)
Power
(kw)
EYBS-600



1-5

600mm
0.28
220-280
0-10



20microns
to 20 mm
20-70
0.75
EYBS-1000
1000mm
0.66
220-280
0-10
20-70
1.5
EYBS-1200
1200mm
0.98
220-280
0-10
20-70
2.2
EYBS-1500
1500mm
1.67
220-280
0-10
20-70
3
EYBS-1800

1-4
1800mm
2.37
220-280
0-10
20-70
4
EYBS-2000
2000mm
2.89
220-280
0-10
20-70
4
EYBS-2600
2600mm
5.3
220-280
0-10
20-70
5.5
Machine can be customized based on your need

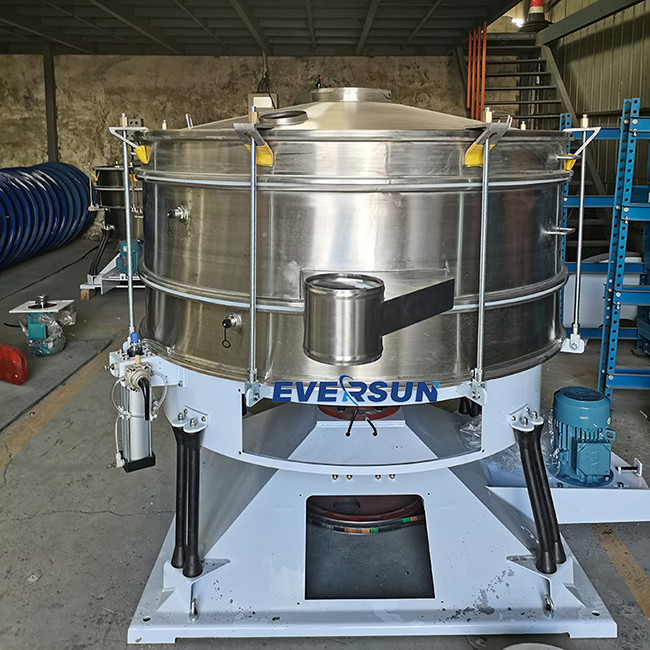

Stainless Steel Rotary Tumbler Vibrating Screening Machine Spice Tumbler Screen 0

Features

1. Circular screen surface: The circular tumbler screen adopts a circular screen surface design with evenly distributed sieve holes. This design enables materials to be evenly distributed on the screen surface, increasing screening efficiency and accuracy.


2. Vibration device: The vibration motor causes the machine to vibrate through excitation force, increasing the movement trajectory of the material in the screen holes, thereby improving the screening effect.


3. Screening process: Materials are screened and separated in the drum according to their size and characteristics.


4. Automated control system: It is equipped with an advanced automated control system, which can realize functions such as automatic start and stop and adjustment of vibration parameters.

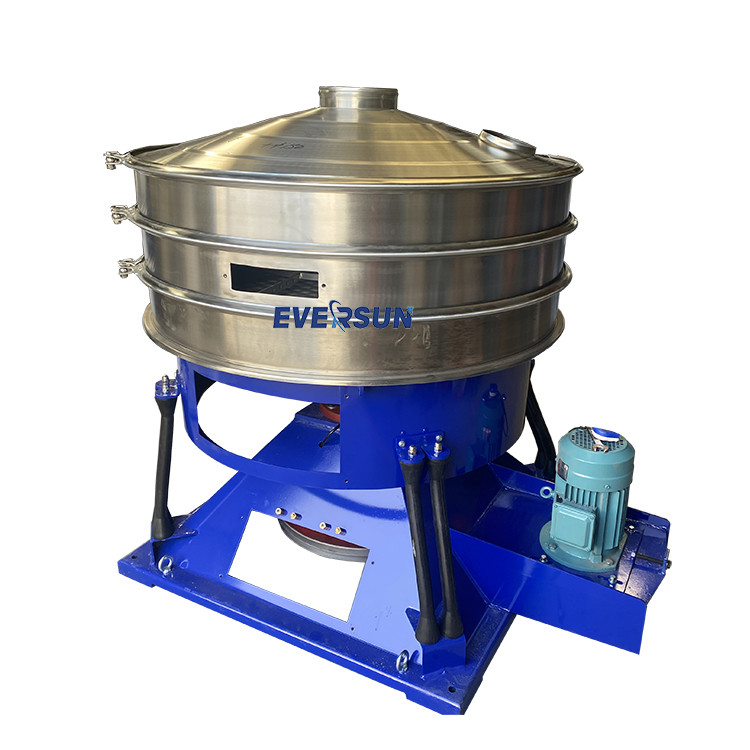

Stainless Steel Rotary Tumbler Vibrating Screening Machine Spice Tumbler Screen 1

Application

Circular tumbler screens are suitable for a wide range of material screening needs, including but not limited to the following materials:

1. Powder materials: The circular tumbler screen can be used to screen various powder materials, such as chemical raw materials, food additives, pharmaceutical raw materials, ore powder, etc.
2. Granular materials: It is suitable for screening various granular materials, such as granular fertilizers, plastic particles, metal particles, glass particles, sand and gravel, etc.
3. Food materials: It is suitable for screening food materials, such as flour, powdered sugar, starch, grains, spices, etc.
4. Liquid materials: Some circular
tumbler screens can also handle liquid materials, such as sewage treatment, paint filtration, chemical liquids, etc.

Stainless Steel Rotary Tumbler Vibrating Screening Machine Spice Tumbler Screen 2

Packing and shipping

1. Package:

Choose a wooden box with sturdy packaging materials to provide adequate protection and support.

2. Logo and documentation:

Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:

Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.



Stainless Steel Rotary Tumbler Vibrating Screening Machine Spice Tumbler Screen 3

FAQ



Q1: What is the mesh size range of the circular swing screen?
A: The mesh size of the circular swing screen ranges from a few microns to tens of millimeters.

Q2: What is the screening accuracy of the circular swing screen?
A: The circular swing screen can achieve high screening accuracy and can meet different screening requirements from fine powder to coarse particles.

Q3: What should we pay attention to when maintaining the circular swing screen?
A: In terms of maintenance, the screen should be cleaned regularly to prevent clogging; check the working condition of the vibration motor and transmission device to ensure normal operation; pay attention to the lubrication and sealing of the screen machine.

Q4: What is the screening efficiency of the circular swing screen?
A: The circular swing screen has a larger screen area and swing motion, which can improve screening efficiency. The specific screening efficiency depends on the nature of the material, screen hole size, screen machine design and operation and other factors.
