| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | B |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Circular Screening Machine | Screen Size: | 0.02-50 Mm |
|---|---|---|---|
| Output: | 100-3300kg/hour | Material: | SUS304/316L,carbon Steel,PP |
| Production Capacity: | 0.85-0.095（t/h） | Usage: | Powder, Granules, Ore, Gravel, Etc. |
| High Light: | Granules Circular Screening Machine,Granules Glucose Vibrating Sieve,Tea Circular Screening Machine |
||

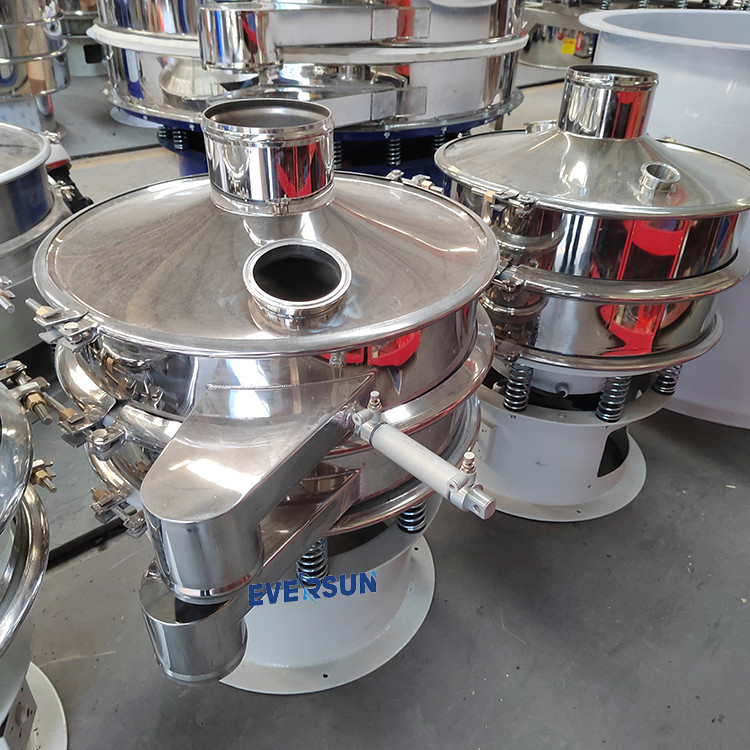

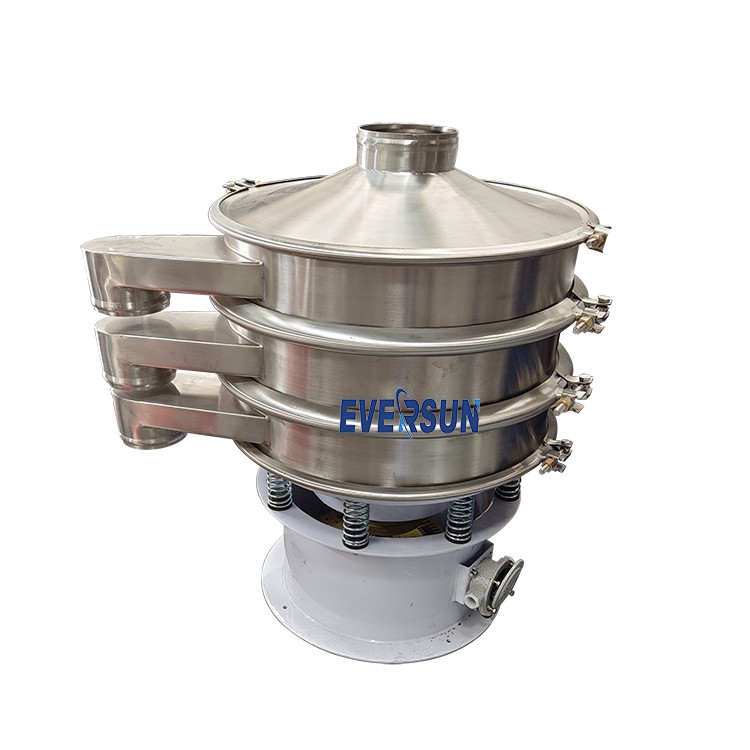

Circular Vibrating screening machine is a common screening equipment that is widely used in the screening and classification process of granular materials. It consists of a screen box, a vibrator, a screen, a feeding device and a discharge port. When working, the vibrator generates exciting force to vibrate the screen box, so that the materials are screened on the screen. Vibrating screening machines have many features and advantages, including efficient screening, multiple screening particle sizes, high-precision classification, and a wide range of applications.
It is suitable for processing various granular materials, such as powder, granules, ore, gravel, etc., and is commonly used in mining, building materials, chemical industry, food, pharmaceutical and other industries. It can be customized according to user needs.
| Model No. | Screen Diameter (mm) | Power(kw) | Sizing Accuracy(%) | Capacity (kg/hour) |
| B-600 | 560 | 0.25~0.55 | 85~95 | 200 |
| B-800 | 760 | 0.55~0.75 | 85~95 | 500 |
| B-1000 | 950 | 0.75~1.1 | 85~95 | 800 |
| B-1200 | 1150 | 1.1~1.75 | 85~95 | 1200 |
| B-1500 | 1450 | 1.5 | 85~95 | 1600 |
| B-1800 | 1750 | 3~4.5 | 85~95 | 2000 |
Features & Advantages
The Circular Vibrating screening machine has the following features and advantages:
1. Screen surface design: The screen surface of the circular vibrating screening machine adopts a circular design, which makes the materials present a uniform radial distribution on the screen surface, improving the screening effect and production capacity.
2. Multi-layer screening: The circular vibrating screening machine can be configured with multi-layer screens to achieve coarse screening, medium screening and fine screening of materials through different levels of screening to meet different particle size requirements.
3. Durability and stability: The circular vibrating screening machine is made of high-quality materials, has good wear resistance and stability, and can adapt to harsh working environments and long-term continuous operation.
4. Flexibility and customizability: The circular vibrating screening machine can be customized according to the specific needs of users, including screen aperture, number of screening layers, feeding method, etc., to meet different material and process requirements.
(Materials below are just parts of our material list, for complete list, please consult us)
1. Ore and ore: iron ore, copper ore, gold ore, coal, etc.
2. Building materials: sand, gravel, cement, concrete and other materials
3. Chemical raw materials: pigments, plastic particles, rubber particles, fertilizers, alumina, etc.
4. Food and feed: cereals, flour, powdered sugar, coffee beans, feed pellets, etc.
5. Pharmaceuticals and cosmetics: Circular vibrating screening machines can accurately screen and classify pharmaceutical powders and cosmetic powders.
We support customizing various types of Circular Vibrating screening machine, different materials, number of layers, sizes, feed ports, etc.
How to choose the right Circular Vibrating screening machine
A: Our engineers will provide suitable machine model based on the use condition of clients, so please let us know
below information:
What materials do you handle and the density.
What capacity do you need for one hour
What mesh number do you need
After knowing above info, our experts will work out the right model for your purpose.
