| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | B |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Multilayer Vibrating Screen | Screen Mesh Number: | 500 Mesh Or 0.028mm |
|---|---|---|---|
| Output: | 100-3300kg/hour | Material: | SUS304/316L,carbon Steel,PP |
| Motor Power: | 0.18-2.2kw | Usage: | Food, Chemistry, Pharmaceutical,etc |
| High Light: | Aluminum Powder Sieve Multilayer Vibrating Screen,Multilayer Vibrating Screen,Plastic Granule Multilayer Vibrating Screen |
||

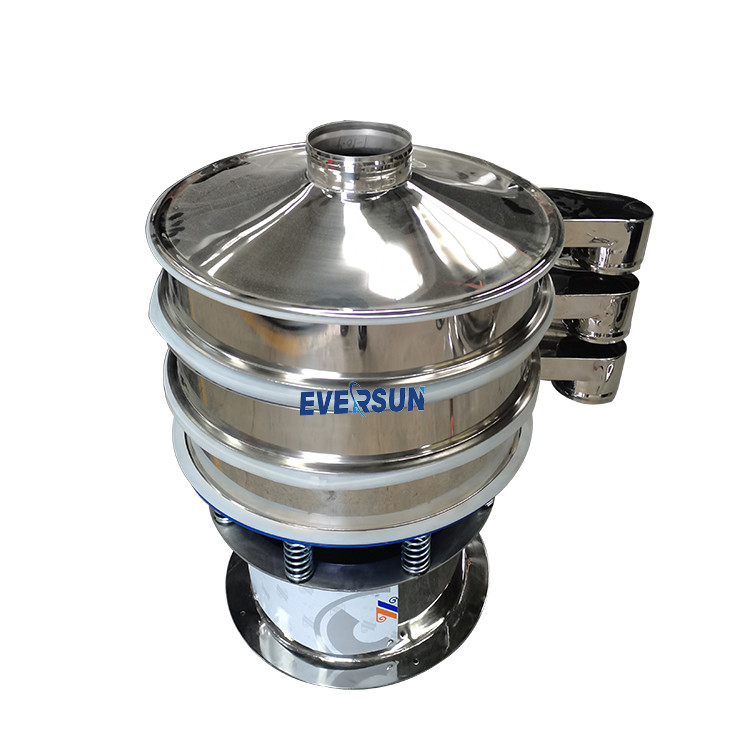

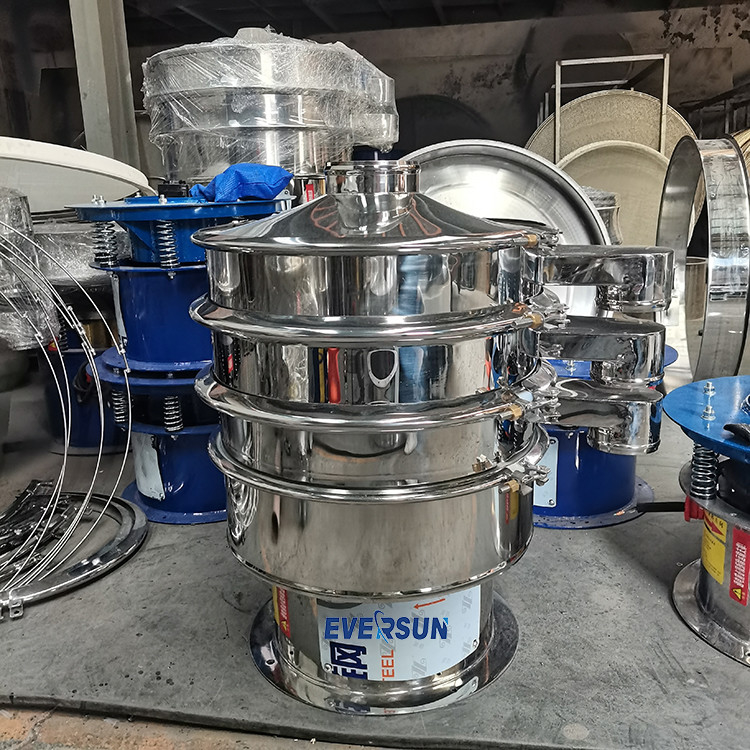

The multi-layer vibrating screen is a device used for screening and filtering granular, powder, and slurry materials, with multiple layers of screens. Through the combination of vibration excitation and screen mesh, it can perform coarse screening and fine screening at the same time to separate materials into different particle size levels. By adjusting the screen apertures at different levels, precise control and classification of particle size can be achieved.
The multi-layer screening structure improves screening efficiency and screening accuracy. Widely used in chemical, food, pharmaceutical, mining and other industries.
| Model No. | Screen Diameter (mm) | Power(kw) | Sizing Accuracy(%) | Capacity (kg/hour) |
| B-600 | 560 | 0.25~0.55 | 85~95 | 200 |
| B-800 | 760 | 0.55~0.75 | 85~95 | 500 |
| B-1000 | 950 | 0.75~1.1 | 85~95 | 800 |
| B-1200 | 1150 | 1.1~1.75 | 85~95 | 1200 |
| B-1500 | 1450 | 1.5 | 85~95 | 1600 |
| B-1800 | 1750 | 3~4.5 | 85~95 | 2000 |
Features & Advantages
The multi-layer vibrating screen has the following features and advantages:
1. Efficient screening: The multi-layer vibrating screen adopts a multi-level screen structure, which can perform multi-stage screening at the same time, improving screening efficiency.
2. Various screening particle sizes: Multi-layer vibrating screens can achieve various screening particle size requirements by replacing screens with different apertures according to different needs and applications.
3. High-precision classification: By adjusting the screen aperture and vibration parameters, precise screening of fine particles can be achieved to meet the requirements of fine classification.
4. High strength and durability: Multi-layer vibrating screens are usually made of high-strength materials and have good durability and impact resistance.
5. Customizable: Multi-layer vibrating screens can be customized according to the specific needs of users. Including customization of screen aperture, screening capacity, screening accuracy, etc.
(Materials below are just parts of our material list, for complete list, please consult us)
1. Powder materials: Flour, starch, lime powder, medicinal powder, chemical raw materials, etc.
2. Granular materials: Ore, sand, coal, gravel, plastic particles, metal powder, etc.
3. Food materials: Grains, beans, vegetable particles, condiments, coffee grounds, etc.
4. Chemical materials: Fertilizers, pigments, plastic particles, rubber particles, etc.
5. Pharmaceutical materials: The pharmaceutical industry often requires particle size control and classification of pharmaceutical powders.
We support customizing various types of Vibrating Screen, different number of layers, materials, sizes, feed ports, etc.
First of all, it is necessary to clarify your screening needs, including material type, particle size range, screening accuracy requirements, processing capacity, etc. We will help you recommend the appropriate size and number of layers. Also select a vibrator of appropriate type and performance to ensure sufficient vibration force and stable operation. Finally, there’s also the way to clean your equipment that needs to be considered.
