| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | SH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden |
| Delivery Time: | within 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Double Cone Mixer | Application: | Powder Or Granular |
|---|---|---|---|
| Volume: | 10L-8000L | Capacity: | 2.5-2000kg/time |
| Loading Coefficient: | 40%~60% | Material: | Carbon Steel,SUS304 /316L |
| Turning Height: | 700-4100mm | Weight: | 100-4000kg |
| High Light: | Chemical Materials Double Cone Blender,10L Double Cone Blender,High Quality Double Cone Blender |
||

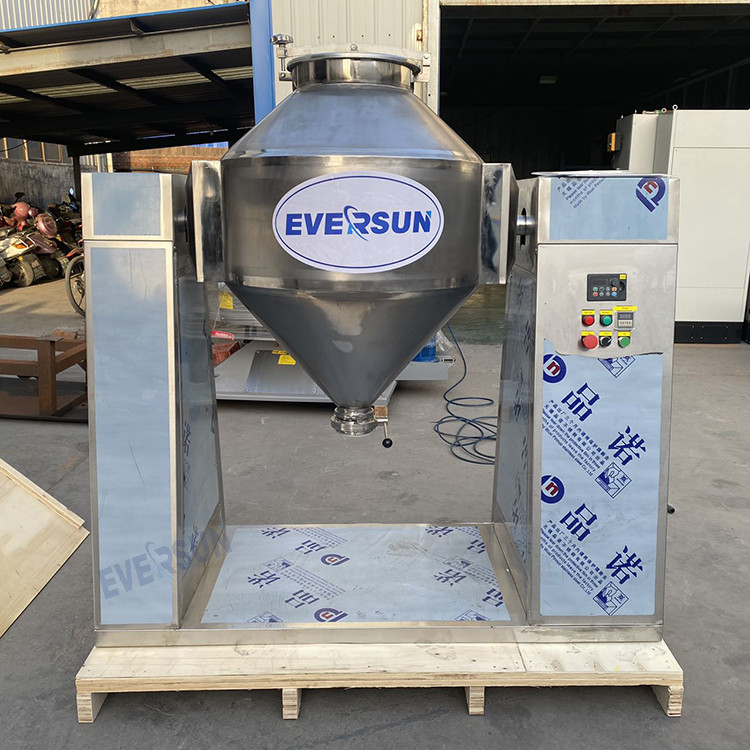

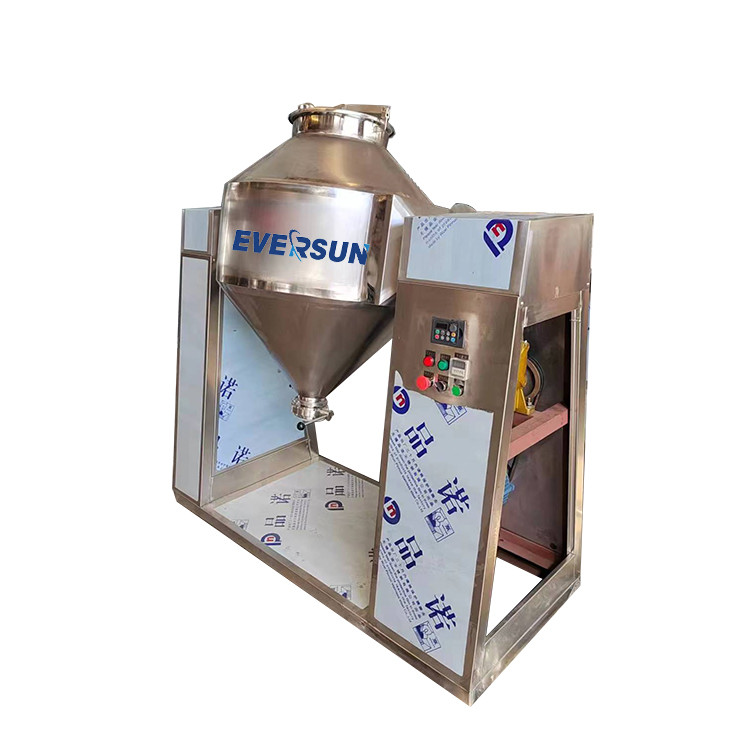

High Quality 10L-8000L Double Cone Blender Mixing Machine For Chemical Materials
Double cone blender is a commonly used solid material mixing equipment, usually used to uniformly mix materials with different components or particle sizes. It consists of two symmetrical conical containers. There is a rotating agitator inside the container, and the materials are mixed by the rotation of the agitator.
Double cone mixers are widely used in chemical, pharmaceutical, food and other industries to prepare mixtures, uniformly disperse particles, improve material fluidity, etc. When selecting and using a double cone mixer, it is necessary to select the appropriate model and configuration based on material characteristics, production needs and process requirements, and perform appropriate operation and maintenance to ensure the mixing effect and the normal operation of the equipment.
| Model |
Total volume(L) |
Effective volume(L) |
Feeding amount(kg) | Power(KW) | Weight(kg) |
| SH50 | 50 | 25 | 15 | 0.55 | 500 |
| SH150 | 150 | 75 | 45 | 0.75 | 650 |
| SH300 | 300 | 150 | 90 | 1.1 | 820 |
| SH500 | 500 | 250 | 150 | 1.5 | 1250 |
| SH1000 | 1000 | 500 | 300 | 3 | 1800 |
| SH1500 | 1500 | 750 | 450 | 4 | 2100 |
| SH2000 | 2000 | 1000 | 600 | 5.5 | 2450 |
| SH3000 | 3000 | 1500 | 900 | 5.5 | 2980 |
| Every part of the machine can be customized | |||||
The Working Principle of Double Cone Blender:
Put the materials to be mixed into the double-cone container, and then start the agitator. The rotation of the agitator pushes the materials downward from the upper part of the container, and at the same time, the materials gradually rise upward under the action of the container wall. During this process, the materials are continuously stirred and turned over in the container, thereby achieving uniform mixing of the materials. After mixing is completed, the discharge port of the container can be opened to take out the mixed materials.
The features of Double Cone Blender:
1. Wide scope of application: It is suitable for mixing various powdery, granular or granular and powdery mixture materials, such as chemical raw materials, food additives, pharmaceutical granules, etc.
2. Easy to operate: The operation of the double cone blender is relatively simple, just put the materials into the container and start the mixer to start the mixing process.
3. Short mixing time: Due to the rotation of the mixer and the turning of materials, the mixing time is relatively short, which can improve production efficiency.
4. Compact structure: The double cone blender has a compact structure and a relatively small footprint, making it suitable for installation in limited spaces.
5. High safety: Double cone mixers are usually equipped with safety devices, such as protective covers, safety switches, etc., to ensure the safety of operators.
6. Easy to clean and maintain: The container and agitator of the mixing machine are usually made of easy-to-clean materials for easy cleaning and maintenance.
1. Packaging materials: Choose wooden box packaging to ensure that the packaging materials can effectively resist external shock and vibration.
2. Logo and label: Indicate the name, model, weight, precautions and other information of the device on the package.
3. Transportation method: Choose the appropriate transportation method, based on the size, weight and distance of the destination. Commonly used transportation methods include land transportation, sea transportation, and air transportation. Ensure that the transportation method meets the characteristics and transportation requirements of the equipment.
Q1: How long is the mixing time of the double cone blender?
A: The mixing time depends on the nature of the material, container volume, mixing amount and other factors. Generally speaking, the mixing time is between a few minutes and tens of minutes.
Q2: How to choose the suitable double cone blender model and capacity?
A: When choosing a suitable double cone blender, factors such as the nature of the material, mixing volume, and production requirements should be considered.
Q3: How to clean the double cone blender?
A: Before cleaning the double cone blender, you should first stop the equipment and disconnect the power supply. Then, clean the container and mixer using appropriate detergents and tools to ensure complete removal of residual material.
Q4: How to ensure the safety of double cone blender?
A: Double cone blenders are usually equipped with safety devices, such as protective covers, safety switches, etc., to ensure the safety of operators.
Q5: Can the double cone blender adjust the mixing speed and mixing time?
A: By adjusting the speed of the blender or the control system of the equipment, the mixing speed and mixing time can be adjusted.
