| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO, CE |
| Model Number: | B |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Voltage: | 110-480 V | Noise Level: | Low |
|---|---|---|---|
| Equipment Diameter: | 200-2600mm | Material: | Stainless Steel, Carbon Steel |
| Product Name: | Vibro Sifter Machine | Capacity: | 50-2000 Kg/hour |
| Screen Size: | 20 Microns To 20 Mm | Power: | 0.25-4.5kw |
| High Light: | Solid Waste Vibro Sifter Machine,Versatile Industrial Powder Sifter,Industrial Powder Vibro Sifter Machine |
||

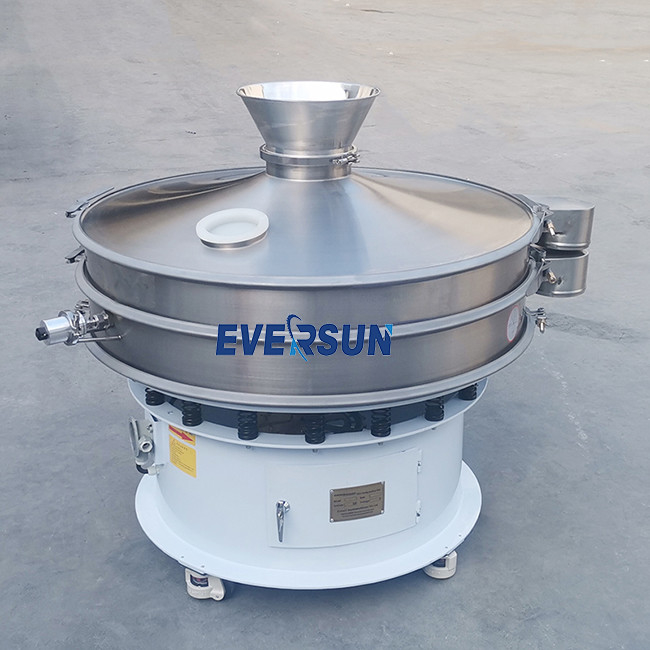

The Vibro Sifter Machine is a commonly used screening equipment used to classify and separate materials according to their particle size. It uses vibration force and screen structure to move and screen materials on the screen through the vibrating screen surface.
During the working process, the material enters the screen box through the feed port, is affected by the vibration force, and moves along the screen surface. Larger particles will be intercepted by the screen and discharged from the discharge port, while smaller particles that meet the requirements will pass through the screen and be discharged from the discharge port.
Vibro Sifter Machine has efficient and precise screening capabilities and are widely used in processes such as particle size classification, solid-liquid separation and impurity removal in chemical, pharmaceutical, food, mining and other industries. It can be adjusted and optimized according to the characteristics of the material and screening requirements to achieve the best screening effect.
| Model No. | Screen Diameter (mm) | Power(kw) | Sizing Accuracy(%) | Capacity (kg/hour) |
| B-600 | 560 | 0.25~0.55 | 85~95 | 200 |
| B-800 | 760 | 0.55~0.75 | 85~95 | 500 |
| B-1000 | 950 | 0.75~1.1 | 85~95 | 800 |
| B-1200 | 1150 | 1.1~1.75 | 85~95 | 1200 |
| B-1500 | 1450 | 1.5 | 85~95 | 1600 |
| B-1800 | 1750 | 3~4.5 | 85~95 | 2000 |
1. High Efficiency: Vibro sifter machines are designed to efficiently separate and classify materials based on their particle size. They utilize vibration and mesh screens to achieve high screening efficiency, allowing for quick and accurate separation of particles.

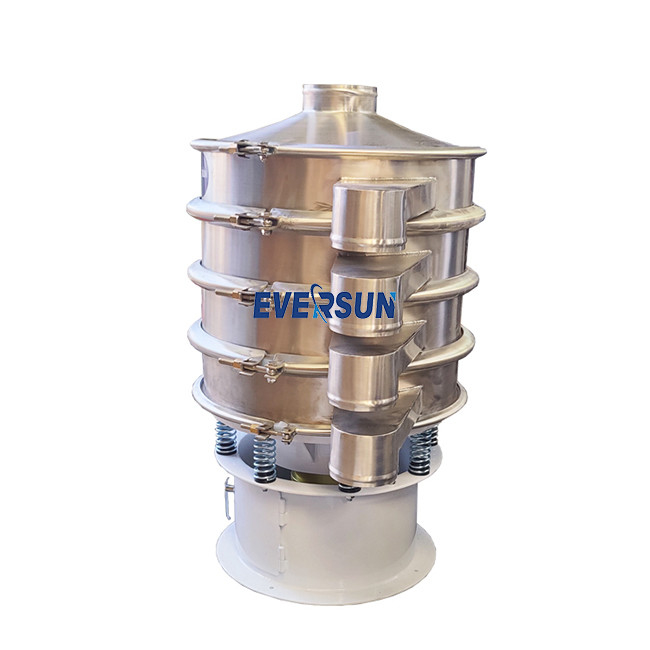

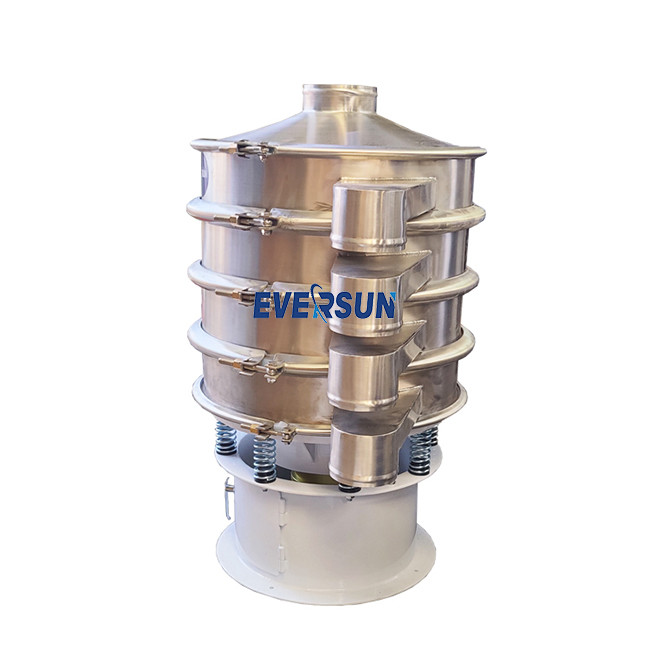

2. Multiple Deck Options: Vibro sifter machines often come with multiple decks or layers of screens stacked on top of each other. This enables simultaneous classification of materials into multiple size fractions, increasing productivity and versatility.
3. Easy Operation and Cleaning: These machines are generally easy to operate, with user-friendly controls for adjusting vibration intensity, screen inclination, and other parameters. They are also designed for easy cleaning and maintenance, with quick-release clamps or access doors for convenient screen changes and cleaning of the equipment.
4. Wide Range of Applications: Vibro sifter machines are suitable for a wide range of applications across industries such as pharmaceuticals, chemicals, food and beverages, cosmetics, and more. They can effectively handle powders, granules, liquids, and other materials.
Vibro Sifter Machine technical support and services include:
The Vibro Sifter Machine is packaged securely to ensure that it arrives in perfect condition. The packaging includes the following components:
The shipping of the Vibro Sifter Machine is done via a reliable courier service and is tracked from the point of shipment to the customer’s address. Delivery time varies depending on the customer’s location but is usually within 3-5 days.
Q1: What is Vibro Sifter Machine?
A1: Vibro Sifter Machine is a sieving machine produced by EVERSUN with model number B, made in China. It is commonly used to sift, classify and separate particles of different sizes.
Q2: What are the advantages of using Vibro Sifter Machine?
A2: Vibro Sifter Machine offers several advantages including high efficiency, low energy consumption, easy cleaning and maintenance, and reduced noise levels.
Q3: What materials can Vibro Sifter Machine handle?
A3: Vibro Sifter Machine can handle a wide variety of materials, including pharmaceuticals, chemicals, food products, grains, and more.
Q4: What is the operating speed of Vibro Sifter Machine?
A4: The operating speed of Vibro Sifter Machine is adjustable, ranging from 600 to 3600 RPM.
Q5: What is the typical mesh size of Vibro Sifter Machine?
A5: The typical mesh size for Vibro Sifter Machine is between 150-500 microns.
