2.2kw Multi Functional Vibratory Screening Machine With Adjustable Frequency

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: B
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Standard export wooden cases
Delivery Time: within 7-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000sets/year
Detail Information
Noise Level: Less Than 75dB Screen Layer: 1-5 Layers
Dimension: 1200*1000*1000mm Or Customized Screen Size: 200-2600mm
Screen Angle: 15-30 Degree Feeding Capacity: 1-2t/h
Frequency: 1400r/min Screen Mesh: 2-500 Mesh
High Light:

1400r/min Vibratory Screening Machine


Multifunctional Vibratory Screening Machine


2.2kw Electric Vibrating Sieve Machine

Product Description

Product Description:


Vibratory Screening Machine is a kind of high-precision sieving equipment, widely used in food, chemical, pharmaceutical, metallurgy, mining, building materials and other industries. It is characterized by its screen opening of 0.2-10mm, the feeding capacity of 1-2 tons/hour, the screen angle of 15-30 degrees, and the noise level of less than 75dB. It is made of 304/316L stainless steel material which is abrasion-resistant and corrosion-resistant, making it suitable for long-term use in harsh environments. This vibrating screen sieve and vibrating filter sieve has the advantages of high screening accuracy, good sealing performance, simple structure and convenient maintenance. The screen frame of the screening machine is specially designed, which can be disassembled and replaced to facilitate the cleaning of the screen surface.



  • Vibrating Screening Machine: Vibratory Screening Machine with 1-5 Layers, 0.2-10mm Screen Opening, 1400r/min Frequency, 304/316L Stainless Steel Material, Less Than 75dB Noise Level


Model No. Screen Diameter (mm) Power(kw) Sizing Accuracy(%) Capacity (kg/hour)
B-600 560 0.25~0.55 85~95 200
B-800 760 0.55~0.75 85~95 500
B-1000 950 0.75~1.1 85~95 800
B-1200 1150 1.1~1.75 85~95 1200
B-1500 1450 1.5 85~95 1600
B-1800 1750 3~4.5 85~95 2000

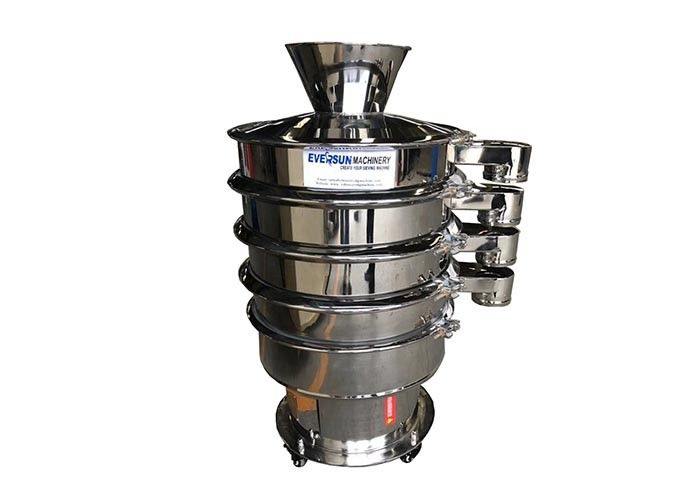

2.2kw Multi Functional Vibratory Screening Machine With Adjustable Frequency 0


EVERSUN brand vibratory screening machine is widely used in different occasions and scenes. It is made of quality 304/316L stainless steel, and has a strong and durable structure. The maximum feeding capacity is up to 2t/h, and the motor power is 2.2kw with a frequency of 1400r/min. The vibrating filter sieve, vibrating sieve, and vibrating sieve machine can adjust the screen mesh between 2 to 500 mesh, and filter out the impurities and other particles from the materials for further processing. The vibratory sieving machine and vibratory screening machine ensure the high efficiency of screening and no pollution.

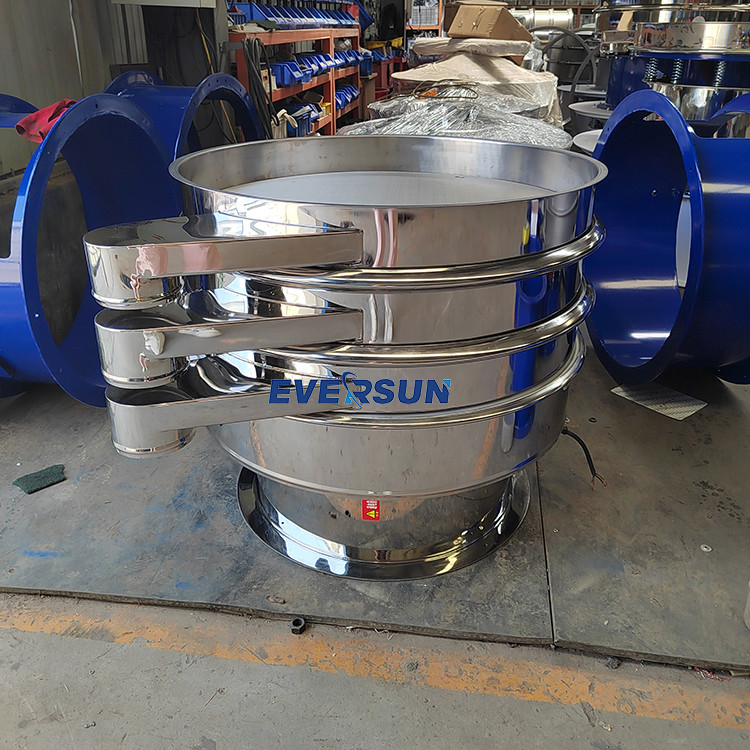

2.2kw Multi Functional Vibratory Screening Machine With Adjustable Frequency 1



Vibratory Screening Machine
Brand Name: EVERSUN
Place of Origin: China
Certification: ISO,CE
Material: 304/316L Stainless Steel, carbon steel, PP
Screen Angle: 15-30 Degree
Amplitude: 2-4mm
Frequency: 1400r/min
Screen Size: 200-2600mm

Packing and Shipping:

Packaging and Shipping of Vibratory Screening Machine:

The vibratory screening machine is packaged in a wooden box with foam-filled interior for additional protection. The box is then sealed with tape and labelled with a shipping label with detailed information about the product. It is then secured to a pallet for safe transportation. Delivery is handled by a reliable carrier and the customer is notified of the estimated time of arrival.

2.2kw Multi Functional Vibratory Screening Machine With Adjustable Frequency 2



  • Q: What is the brand name of Vibratory Screening Machine?
  • A: The brand name of Vibratory Screening Machine is EVERSUN.
  • Q: Where is Vibratory Screening Machine from?
  • A: Vibratory Screening Machine is from China.
  • Q: Does Vibratory Screening Machine have any certifications?
  • A: Yes, Vibratory Screening Machine has ISO and CE certifications.
  • Q: What is the working principle of Vibratory Screening Machine?
  • A: Vibratory Screening Machine uses vibration motor to make the materials on the sieve surface be thrown up, and forward in a straight line at the same time, materials were separated by the screen mesh while passing through the sieve surface.
  • Q: What applications does Vibratory Screening Machine have?
  • A: Vibratory Screening Machine is widely used in mining, chemical, food, plastic, pharmaceutical and other industries for the materials classification and separation.
