| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | B |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Material: | 304/316L Stainless Steel | Frequency: | 1400r/min |
|---|---|---|---|
| Dimension: | 200-2600mm | Motor Power: | 2.2kw |
| Noise Level: | Less Than 75dB | Screen Mesh: | 2-500 Mesh |
| Screen Angle: | 15-30 Degree | Screen Layer: | 1-5 Layers |
| High Light: | Multi Purpose Circular Vibratory Screen,500 Mesh Vibratory Screening Equipment,Vibratory Screening Machine 10mm |
||

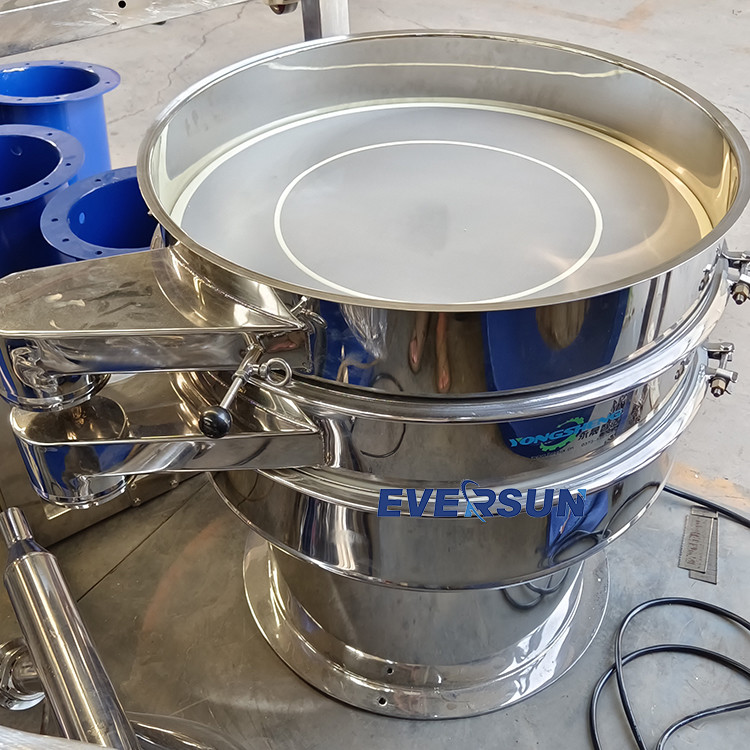

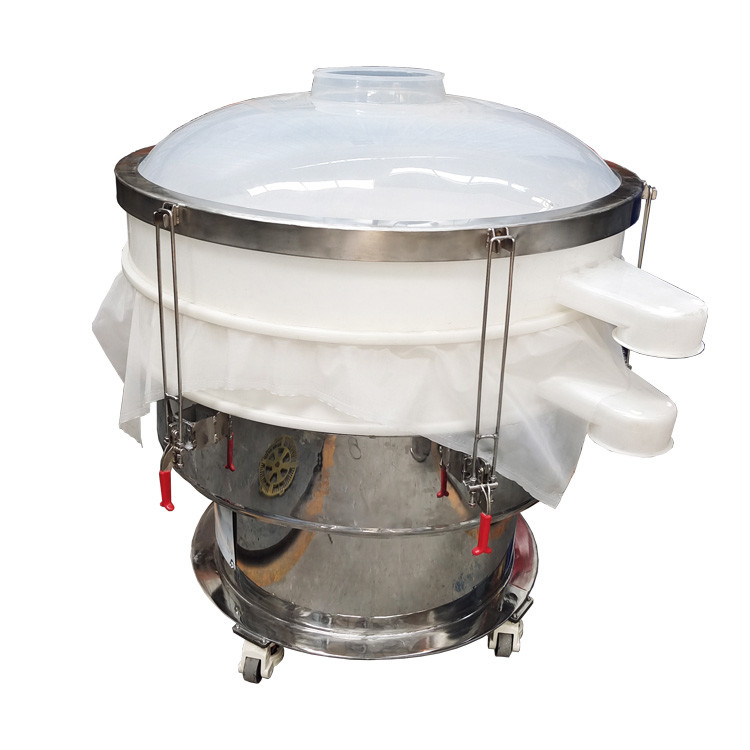

Our Vibratory Screening Machine is an ideal choice for sieving and filtering materials with different particle sizes. It is widely used in various industries, including food processing, pharmaceutical, chemical, metallurgy, ceramics, and more. It is designed to work with mesh sizes from 20 to 200, and has an adjustable angle from 15 to 30 degrees. The vibration amplitude can be adjusted from 2 to 4mm, and the screen size is 1000mm. It has a large screening opening from 0.2 to 10mm, and can filter out different particle sizes with its vibrating filter sieve. Moreover, it is highly efficient and reliable. Our Vibratory Screening Machine is easy to install, maintain, and operate, making it an ideal choice for your industrial filtering needs.
| Model No. | Screen Diameter (mm) | Power(kw) | Sizing Accuracy(%) | Capacity (kg/hour) |
| B-600 | 560 | 0.25~0.55 | 85~95 | 200 |
| B-800 | 760 | 0.55~0.75 | 85~95 | 500 |
| B-1000 | 950 | 0.75~1.1 | 85~95 | 800 |
| B-1200 | 1150 | 1.1~1.75 | 85~95 | 1200 |
| B-1500 | 1450 | 1.5 | 85~95 | 1600 |
| B-1800 | 1750 | 3~4.5 | 85~95 | 2000 |
The Vibrating Screening Machine, also known as Vibrating Filter Sieve or Vibrating Filter Sieve Machine, produced by EVERSUN from China is a certified product that meets ISO and CE standards. This machine has a noise level of less than 75dB, with a screen opening ranging from 0.2-10mm, a screen angle of 15-30 degrees, a screen mesh of 2-500 mesh, and a screen size of 1000mm. This powerful machine can effectively filter out impurities in a variety of materials, making it an ideal choice for a variety of industries.
EVERSUN customizes vibrating sieve, vibrating screen machine, and vibrating sieve machine for your specific needs. Our vibrating sieve machine is certified by ISO and CE, with frequency of 1400r/min, noise level of less than 75dB, feeding capacity of 1-2t/h, and voltage of 220V or customizable. It is available with 1-5 layers of screens, meeting all your requirement.
