1 - 2t/h 220V Vibratory Screening Machine Dimension 1200*1000*1000mm

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: B
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Standard export wooden cases
Delivery Time: within 7-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000sets/year
Detail Information
Screen Size: 1000mm Screen Angle: 15-30 Degree
Feeding Capacity: 1-2t/h Amplitude: 2-4mm
Screen Mesh: 2-500 Mesh Noise Level: Less Than 75dB
Screen Layer: 1-5 Layers Screen Opening: 0.2-10mm
High Light:

Stainless Steel Vibratory Screening Equipment


220V Vibratory Screening Machine


2t/H Vibratory Screening Machine

Product Description

Product Description:

The Vibratory Screening Machine is a kind of advanced vibrating filter sieve specially designed for high-precision screening. It features with high amplitude, low noise level, high feeding capacity and adjustable voltage and frequency. The amplitude of the machine can be adjusted from 2-4mm, and the noise level is less than 75dB. The feeding capacity can be up to 1-2t/h, and the voltage is 220V, and the frequency is 1400r/min. As an efficient vibrating filter sieve, this Vibrating Screen Machine is ideal for separating granules, powders, and liquids in various industries.





Model No. Screen Diameter (mm) Power(kw) Sizing Accuracy(%) Capacity (kg/hour)
B-600 560 0.25~0.55 85~95 200
B-800 760 0.55~0.75 85~95 500
B-1000 950 0.75~1.1 85~95 800
B-1200 1150 1.1~1.75 85~95 1200
B-1500 1450 1.5 85~95 1600
B-1800 1750 3~4.5 85~95 2000

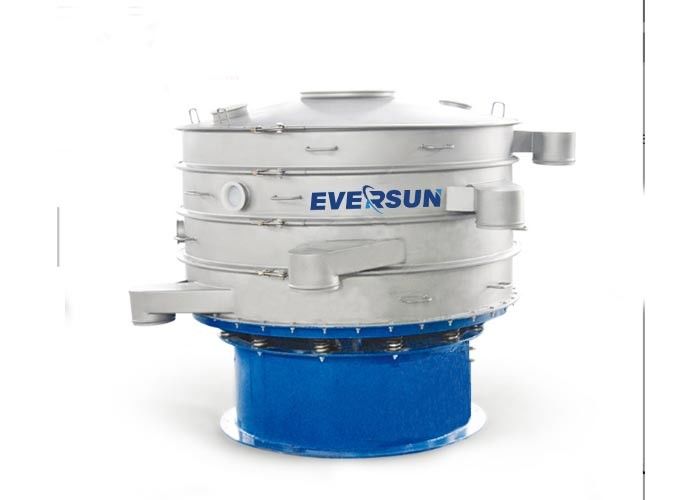

1 - 2t/h 220V Vibratory Screening Machine Dimension 1200*1000*1000mm 0


EVERSUN is a leading brand of vibratory screening machine, certified with ISO and CE. Its advanced design and special structure make it an ideal choice for a wide range of applications. The vibratory screening machine has a maximum feeding capacity of 1-2t/h, and is able to run with multiple layers of sieves with an amplitude of 2-4mm. The adjustable screen angle can be set at 15-30 degrees, and the material used is 304/316L stainless steel and carbon steel. It is perfect for any project where vibrating sieve, vibrating screen machine, and vibrating filter sieve is needed.

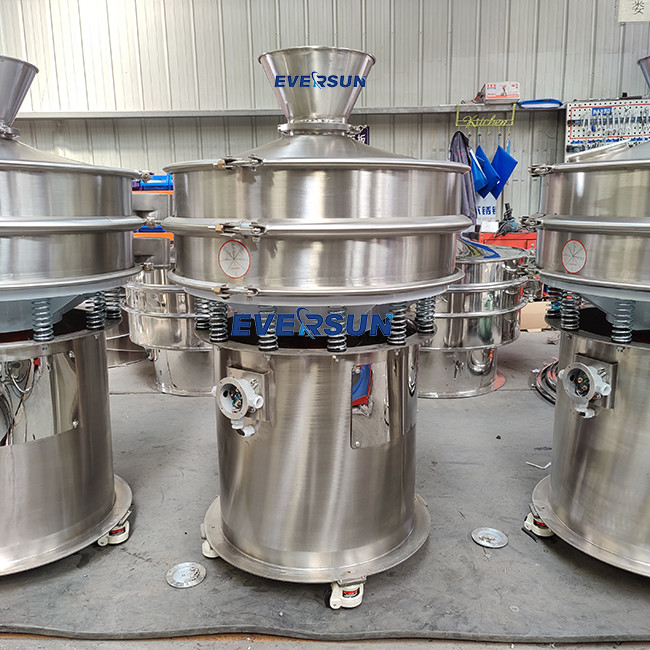

1 - 2t/h 220V Vibratory Screening Machine Dimension 1200*1000*1000mm 1



Customized Vibratory Screening Machine

Eversun Vibratory Screening Machine has the following features:

  • Brand Name: EVERSUN
  • Place of Origin: China
  • Certification: ISO,CE
  • Noise Level: Less Than 75dB
  • Screen Angle: 15-30 Degree
  • Dimension: 200-2600mm
  • Screen Size: 1000mm
  • Screen Layer: 1-5 Layers

Eversun Vibratory Screening Machine is the right choice for your Vibrating Filter Sieve. Get in touch with us now to get your customized Vibratory Screening Machine!


Packing and Shipping:

Packaging and Shipping

Our Vibratory Screening Machine is carefully packaged in a cardboard box or wooden crate, depending on its size and type. To ensure that the machine is not damaged during shipping, we will fill the box or crate with foam. We will also attach a label to the package indicating the contents and destination.

We ship to most countries worldwide, using a variety of shipping methods, including air freight, sea freight, and express courier services. We will select the most appropriate and cost-effective method for each shipment, depending on the size, weight, and destination of the package.

1 - 2t/h 220V Vibratory Screening Machine Dimension 1200*1000*1000mm 2



Q1: What is the Brand Name of Vibratory Screening Machine?

A1: The brand name of Vibratory Screening Machine is EVERSUN, which is from China and certified by ISO,CE.

Q2: What is the purpose of Vibratory Screening Machine?

A2: Vibratory Screening Machine is mainly used to screen materials into different sizes in order to meet different production requirements.

Q3: How does Vibratory Screening Machine work?

A3: Vibratory Screening Machine works by using the vibration of the sieve surface to make the material reach the purpose of screening.

Q4: What are the advantages of Vibratory Screening Machine?

A4: Vibratory Screening Machine has the advantages of high screening efficiency, low noise, small vibration and long service life.

Q5: What industries can Vibratory Screening Machine be used in?

A5: Vibratory Screening Machine can be used in mining, metallurgy, coal, chemical, construction, pharmaceutical and other industries.
