| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EYBS |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000set/year |
| Layer: | 1~5 | Advantage: | Precision Screening And Mass Production |
|---|---|---|---|
| Noise Level: | Low | Type: | Screening Machine |
| Screen Material: | Woven Wire Cloth | Operation: | Automatic |
| Application: | Food, Chemical, Pharmacy, Mining,Chemicals, Food And Spices, Plastics, Etc | Mesh Size: | 2~500 |
| High Light: | Chemical Tumbler Screening Machine,Woven Wire Cloth Tumbling Sieve Machine,Automatic Tumbling Sieve Machine |
||

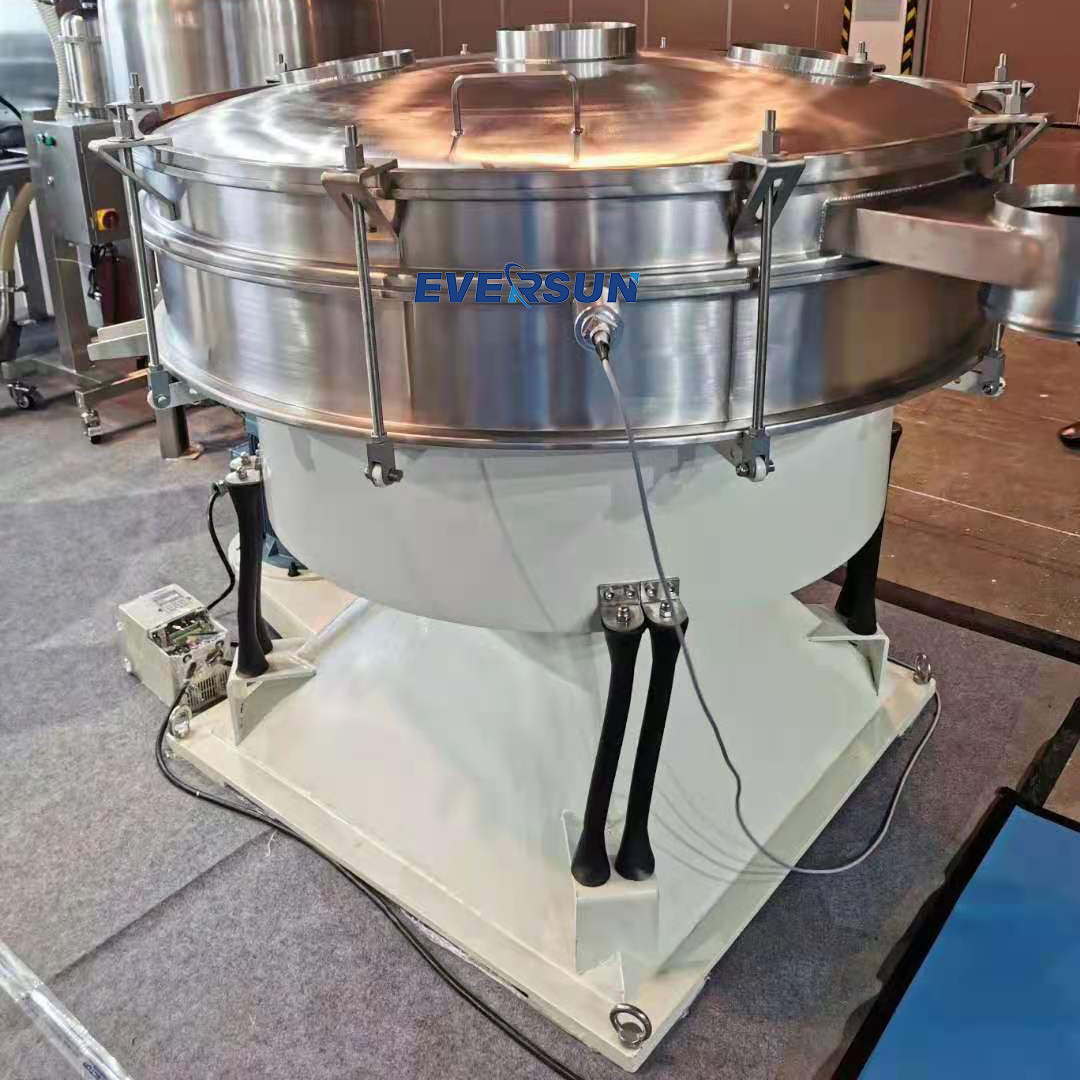

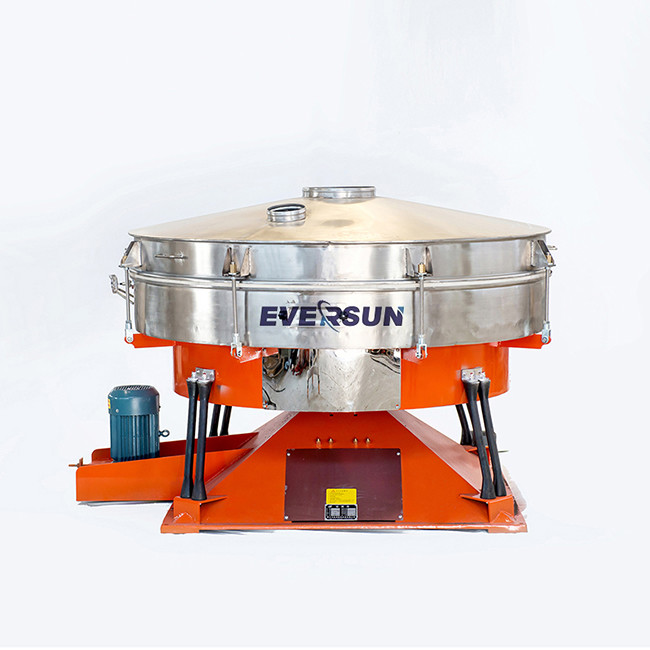

The Tumbling Screen Machine is a type of circular screening machine designed to screen out impurities and particles in a variety of materials. It is made with high-quality stainless steel 304/316L and carbon steel, and is driven by an automatic operation to reduce noise levels. It is ideal for a variety of applications as it can be set up with 1-5 layers.
This tumbling sieve machine is designed to gently tumble and screen a wide range of materials with its circular motion. This movement allows small particles to pass through a sieve in the tumbler, while larger particles remain on the surface, allowing for efficient and accurate sorting. This machine is versatile and can handle various materials, and the tumbling and screening process can be easily adjusted to meet the needs of the application.
Tumbling Screen Machine is a perfect choice for those seeking an efficient and reliable screening solution. It offers low noise levels, a wide range of materials, and is easy to install and operate. With its stainless steel 304/316L and carbon steel construction, it is built to last and is ideal for any application where accurate and efficient sorting is required.
| Model | Deck | Equipment diameter | Screen mesh Area(m2) | Frequency (r/min) |
Screen slope (degree) |
Sreen mesh | Amplitude (mm) |
Power (kw) |
| EYBS-600 | 1-5 | 600mm | 0.28 | 220-280 | 0-10 | 20microns to 20 mm |
20-70 | 0.75 |
| EYBS-1000 | 1000mm | 0.66 | 220-280 | 0-10 | 20-70 | 1.5 | ||
| EYBS-1200 | 1200mm | 0.98 | 220-280 | 0-10 | 20-70 | 2.2 | ||
| EYBS-1500 | 1500mm | 1.67 | 220-280 | 0-10 | 20-70 | 3 | ||
| EYBS-1800 | 1-4 | 1800mm | 2.37 | 220-280 | 0-10 | 20-70 | 4 | |
| EYBS-2000 | 2000mm | 2.89 | 220-280 | 0-10 | 20-70 | 4 | ||
| EYBS-2600 | 2600mm | 5.3 | 220-280 | 0-10 | 20-70 | 5.5 | ||
| Machine can be customized based on your need | ||||||||
EVERSUN MACHINERY Tumbling Sieve Machine is a highly efficient circular screening machine specially designed for the screening and classification of large-scale materials such as food, chemical, pharmacy, mining, chemicals, food and spices, plastics, etc. Its model number is EYBS. It is certified by ISO and CE. It is made of stainless steel 304/316L and carbon steel and can be divided into 1-5 layers of screening. The mesh size ranges from 2 to 500. It is widely used in many industries, such as food, chemical, pharmacy, mining, chemicals, food and spices, plastics, etc. It has the advantages of good stability, high efficiency, and durability. It can be customized according to customer requirements. It is an ideal choice for large-scale material screening and classification.
If you are looking for a reliable and efficient Rotating Screening Machine, Circular Screening Machine, or Tumbler Sieve Machine, then EVERSUN MACHINERY's EYBS is the perfect solution for you. This machine is made with the highest quality 304/316L stainless steel and carbon steel and certified by ISO and CE. It is designed with a low noise level, making it perfect for a variety of applications including food, chemical, pharmacy, mining, chemicals, food and spices, plastics, and more. With a capacity of 50 kg to 100 t/h and mesh size ranging from 2 to 500, this machine is sure to meet all your needs.
The Tumbler Screening Machine is shipped in a custom-made wooden crate. To ensure a safe delivery, all components of the machine are firmly secured to the crate to prevent shifting during transport. The crate is then shrink-wrapped and strapped with steel bands for additional protection.
Upon receipt, customers should immediately inspect the package for any signs of damage. If any damage is found, customers should immediately contact the carrier for filing a claim.
