| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EYBS |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000set/year |
| Mesh Size: | 2~500 | Material: | Stainless Steel304/316L,Carbon Steel |
|---|---|---|---|
| Layer: | 1~5 | Noise Level: | Low |
| Screen Material: | Woven Wire Cloth | Application: | Food, Chemical, Pharmacy, Mining,Chemicals, Food And Spices, Plastics, Etc |
| Capacity: | 3-8t/h | Operation: | Automatic |
| High Light: | Low Noise Tumbling Sieve Machine,Woven Wire Cloth Screen Sifting Machine,8t/h Tumbler Screener |
||

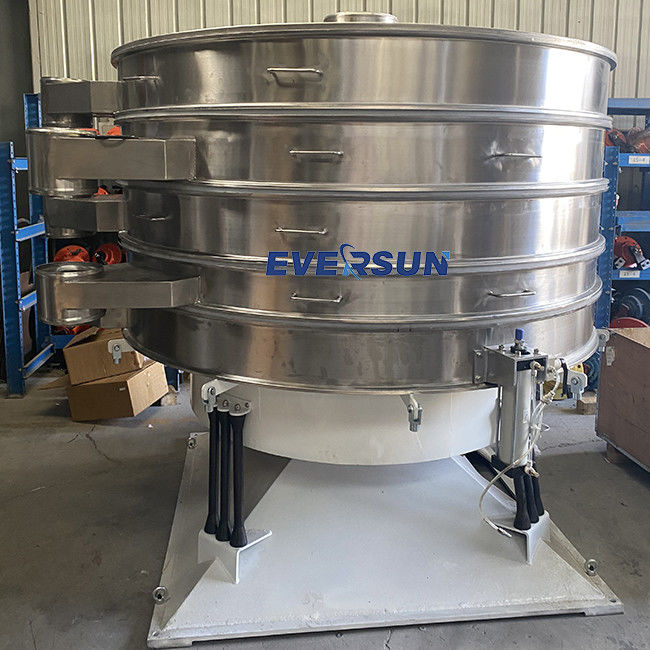

Tumbler Screening Machine is a kind of rotating screening machine that is specially designed for high efficiency, low noise and high precision screening. It is suitable for different layers of materials from 1-5 and equipped with mesh sizes ranging from 2-500. The screen material is made of woven wire cloth, and the capacity is from 50kg/h to 100t/h. Such a tumbling sieve machine is featured with high efficiency, low noise, easy maintenance, long service life and other great advantages. It is widely used in many industries such as metallurgy, coal, chemical, food, medicine, building materials, etc.
Equipped with advanced technology, our tumbler sieve machine is capable of sieving many materials in high precision and efficiency without any damage to the material. The built-in rotating tumbling action can separate particles of different sizes and shapes, and the multi-layer screening system can achieve high screening efficiency. Moreover, it has low noise level and the special design of the mesh structure can reduce noise. It is highly praised by customers for its reliable performance, low maintenance cost and long service life.
In conclusion, our tumbling sieve machine is an ideal choice for many industries and is highly recommended for its high efficiency, low noise and high precision.
| Model | Deck | Equipment diameter | Screen mesh Area(m2) | Frequency (r/min) |
Screen slope (degree) |
Sreen mesh | Amplitude (mm) |
Power (kw) |
| EYBS-600 | 1-5 | 600mm | 0.28 | 220-280 | 0-10 | 20microns to 20 mm |
20-70 | 0.75 |
| EYBS-1000 | 1000mm | 0.66 | 220-280 | 0-10 | 20-70 | 1.5 | ||
| EYBS-1200 | 1200mm | 0.98 | 220-280 | 0-10 | 20-70 | 2.2 | ||
| EYBS-1500 | 1500mm | 1.67 | 220-280 | 0-10 | 20-70 | 3 | ||
| EYBS-1800 | 1-4 | 1800mm | 2.37 | 220-280 | 0-10 | 20-70 | 4 | |
| EYBS-2000 | 2000mm | 2.89 | 220-280 | 0-10 | 20-70 | 4 | ||
| EYBS-2600 | 2600mm | 5.3 | 220-280 | 0-10 | 20-70 | 5.5 | ||
| Machine can be customized based on your need | ||||||||
The EVERSUN MACHINERY EYBS Tumbler Screening Machine is a high-precision circular vibrating screen with 1~5 layers. It features high screening accuracy, high efficiency, and large capacity, and is an ideal selection for mass production. The mesh size of this tumbler sieve machine can be adjusted from 2~500 mesh.
The EVERSUN MACHINERY EYBS Tumbler Screening Machine is widely used in industries such as food, chemical, pharmacy, mining, and other industries. It can be used to screen and grade materials such as chemicals, food and spices, plastics, etc., and is especially suitable for materials with high precision and high requirements.
The EVERSUN MACHINERY EYBS Tumbler Screening Machine is equipped with CE and ISO certification, and features high precision screening and mass production. It is an ideal choice for any industry that requires accurate and efficient screening.
EVERSUN MACHINERY: Tumbler Screening Machine
Brand Name: EVERSUN MACHINERY
Model Number: EYBS
Place of Origin: CHINA
Certification: ISO,CE
Advantage: Precision Screening And Mass Production
Mesh Size: 2~500
Type: Tumbler Sifting Machine, Tumbling Sieve Machine, Circular Screening Machine
Capacity: 50 KG~100 T/H
Material: Stainless Steel304/316L,Carbon Steel
EVERSUN MACHINERY's Tumbler Screening Machine is an efficient sieving machine that is specially designed to meet the large output, high-density sieving of the manufacturers. It is composed of three-dimensional elliptic motion trajectory and a mesh to achieve mass production, precision screening, and high-performance screening.
Our Tumbler Screening Machine is made of 304/316L stainless steel, carbon steel, and other materials, and it is suitable for sieving all kinds of materials with a particle size of 2~500 mesh. It has a high screening efficiency, large production capacity (50 KG~100 T/H), and long service life. It is widely used in the screening of various powder, granular, and other materials in food, medicine, chemical, and other industries.
The Tumbler Screening Machine will be shipped in its original packaging, which includes a wooden box for secure transport. The machine and its components will be carefully wrapped with bubble wrap and secured with foam. The box also contains a manual, a warranty card, and a few tools for basic maintenance.
We ship using trusted and reliable shipping companies. The delivery time will depend on the destination. For more information about shipping, please contact us.
