| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | EXZS |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/year |
| Noise Level: | Less Than 75dB | Material: | 304/316L Stainless Steel, Carbon Steel |
|---|---|---|---|
| Screen Layer: | 1-5 Layers | Motor Power: | 2.2kw |
| Feeding Capacity: | 1-2t/h | Frequency: | 1400r/min |
| Screen Opening: | 0.2-10mm | Amplitude: | 2-4mm |
| High Light: | Removable Vibrating Filter Sieve,Vibrating Filter Sieve 2t/H,Compact Vibratory Filter Sieve |
||

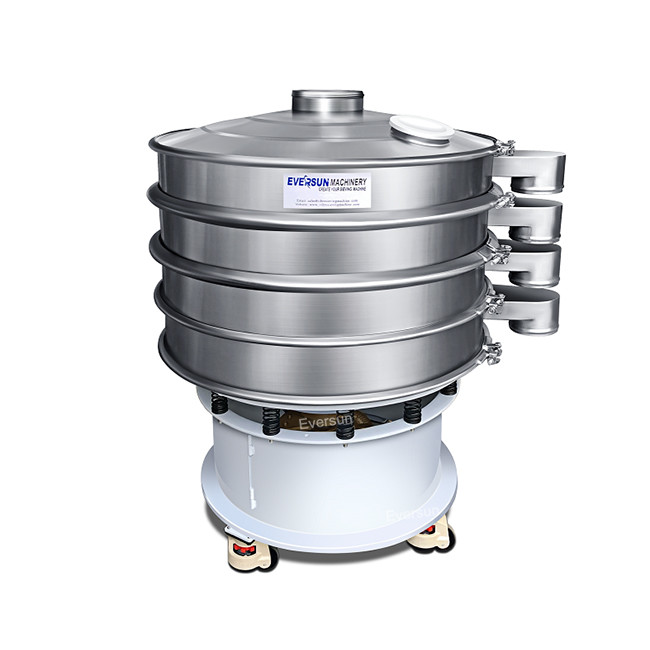

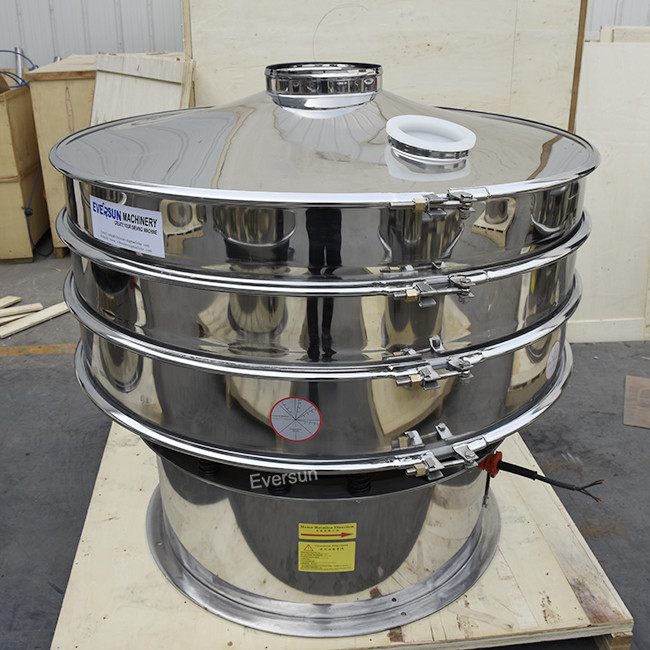

The Vibratory Filter Sieve is a high-efficiency screening equipment designed for efficient screening operations. It is a compact, sturdy and versatile screening machine designed for a wide variety of applications. It is ideal for screening and separating materials of different sizes and shapes and can be used in both wet and dry processing. The Vibratory Filter Sieve is powered by a customizable voltage and screen size. With its customizable dimension, the machine can screen materials from 20-500 mesh size with an opening range of 0.2-10mm.
The Vibratory Filter Sieve is a highly reliable and efficient vibrating sieve for separating particles of different sizes. It uses vibrating screens to quickly and accurately sort materials by size, shape and density. The vibrating sieve is designed to work in a wide range of temperature and humidity conditions. It is easy to maintain and can be used in a variety of industrial applications. It is an ideal choice for vibrating screen machine for separating various materials, such as plastics, rubber, grains, minerals and more.
This Vibratory Filter Sieve is perfect for efficient screening operations with its high-efficiency performance. It has a low noise level and is designed for long-term use. It can be used in various fields such as food processing, pharmaceutical manufacturing, chemical processing and more. It is an ideal choice for any material screening application.
| Model | Equipment diameter | Power(KW) | Deck | Effective screening area(m2) | Screen mesh |
| EXZS-600 | 600mm/24inch | 0.25 | 1-5 | 0.2289 | 20 microns to 20 mm |
| EXZS-800 | 800mm/32inch | 0.55 | 0.4183 | ||
| EXZS-1000 | 1000mm/40inch | 0.75 | 0.6359 | ||
| EXZS-1200 | 1200mm/48inch | 1.1 | 0.9499 | ||
| EXZS-1500 | 1500mm/60inch | 1.5 | 1.5386 | ||
| EXZS-1800 | 1800mm/70inch | 3 | 1-4 | 2.2687 | |
| EXZS-2000 | 2000mm/78inch | 4.5 | 2.8893 |
EVERSUN Vibratory Filter Sieve is an ideal choice for sieving and filtering various materials in multiple industries. It is widely applied in food, pharmaceutical, chemical, metallurgy, construction, mining, and other sectors. This high-performance machine is capable of sieving materials with a maximum frequency of 1400r/min and a noise level of less than 75dB. It is designed with up to 8 layers of sieve and advanced vibrating technology to reduce the size of the particles.
EVERSUN Vibratory Filter Sieve is certified to meet ISO and CE standards. It is an efficient, cost-effective, and user-friendly machine that is easy to install and maintain. Furthermore, it is designed to reduce the loss of materials in the process of screening and ensure the accuracy and high efficiency of the screening results. With the help of this machine, it is effortless to achieve precise results and achieve the desired output.
Optional configuration: Soft connection, iron remover, shelf, ultrasonic system, rotary brush, etc
EVERSUN Vibratory Filter Sieve is a kind of high-precision vibrating sieve, filter sieve and vibrating sieve machine that can be customized according to your specific needs. It is equipped with high-precision screen mesh (20-500 mesh), low noise level (less than 75dB), and adjustable screen opening (0.2-10mm). It runs at a customizable voltage and a frequency.
The Vibratory Filter Sieve is securely packaged in a wooden box , and shipped via a reliable freight carrier. The product is strapped down and secured to the packaging to ensure safe delivery. All parts and components are accounted for and checked for accuracy and quality assurance prior to dispatch.
