| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | EXZS |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Material: | 304/316L Stainless Steel,Carbon Steel | Screen Opening: | 0.2-10mm |
|---|---|---|---|
| Noise Level: | Less Than 75dB | Screen Mesh: | 20-500 Mesh |
| Screen Layer: | 1-5 Layers | Motor Power: | 2.2kw |
| Dimension: | 1200*1000*1000mm | Frequency: | 1400r/min |
| High Light: | 10mm Vibratory Screening Machine,304 Stainless Steel Vibratory Screening Machine,Food Vibrating Filter Sieve |
||

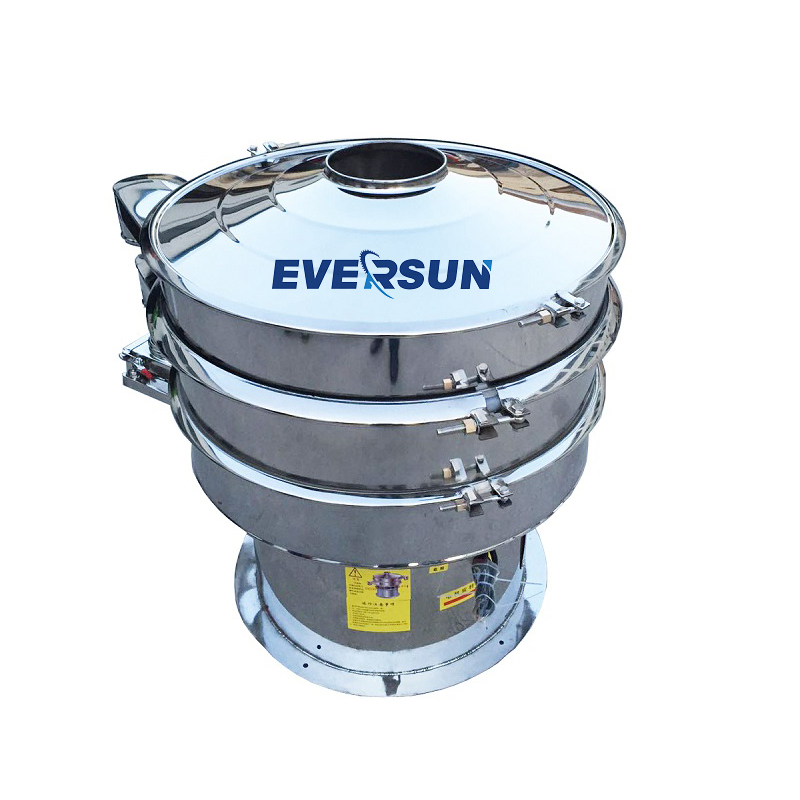

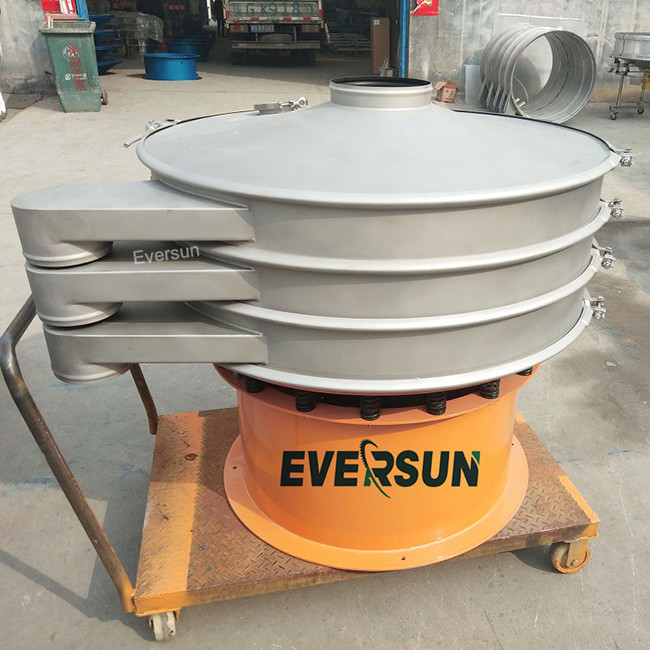

The Vibratory Screening Machine is a kind of advanced vibrating screen with circular motion. It is made of high quality 304/316L stainless steel. With a screen mesh of 20-635 mesh, and a screen opening of 0.2-10mm, it is designed to achieve a high screening efficiency. Moreover, the frequency of this Vibratory Screening Machine is 1400r/min, allowing it to process materials quickly and accurately.
The Vibratory Screening Machine is reliable and durable, making it suitable for a wide range of applications. It has a compact design, low noise, and low energy consumption. Its adjustable amplitude and angle can meet different needs for different materials. In addition, it is easy to install, operate and maintain. With its superior performance, the Vibratory Screening Machine is an ideal choice for material screening.
| Model | Equipment diameter | Power(KW) | Deck | Effective screening area(m2) | Screen mesh |
| EXZS-600 | 600mm/24inch | 0.25 | 1-5 | 0.2289 | 20 microns to 20 mm |
| EXZS-800 | 800mm/32inch | 0.55 | 0.4183 | ||
| EXZS-1000 | 1000mm/40inch | 0.75 | 0.6359 | ||
| EXZS-1200 | 1200mm/48inch | 1.1 | 0.9499 | ||
| EXZS-1500 | 1500mm/60inch | 1.5 | 1.5386 | ||
| EXZS-1800 | 1800mm/70inch | 3 | 1-4 | 2.2687 | |
| EXZS-2000 | 2000mm/78inch | 4.5 | 2.8893 |
The EVERSUN brand Vibrating Screen Machine is a kind of screening equipment that uses vibrating motor to make the material do periodic motion. It is made of 304/316L stainless steel, with a customizable dimension and a screen mesh from 20-500 mesh. It is certified with ISO and CE, and the amplitude of the vibrating motor can reach 2-4mm, with a frequency of 1400r/min. The vibrating sieve is widely used in various industries for separating and sorting materials, such as aggregate, sand, gravel and coal. It is also used in food, chemical, pharmaceutical and other industries.
EVERSUN's Vibratory Screening Machine is a great choice for screening a variety of materials, as it is a vibrating sieve machine with high efficiency, strong durability, and low noise. It is the perfect choice for a variety of applications such as food, chemical, pharmaceutical, and metallurgical industries. With its adjustable vibrating power, it can be adjusted to meet your specific needs. It is equipped with a 20-500 mesh screen and is capable of handling materials with a maximum feeding capacity of 1-2t/h. Its voltage is customizable.
Packaging and Shipping of Vibratory Screening Machine
The vibratory screening machine is packaged in a wooden case to avoid collision and damage during transportation. The package also includes a waterproof bag to prevent moisture and humidity. The vibratory screening machine is shipped by sea, air or express delivery, depending on customer requirements.
