| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Model Number: | W |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden |
| Delivery Time: | within 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Certification: | ISO,CE | Name: | Double Cone Shape Rotating Blender |
|---|---|---|---|
| Customized Service: | OEM/ODM Customization | Material: | Carbon Steel,SUS304 /316L |
| Motor: | General Motor/explosion-proof Motor | Additional Configuration: | Feeding System Or Feeding Platform |
| High Light: | Double Cone Rotating Powder Blender,W Type Double Cone Blender,Animal Feed Powder Blender |
||

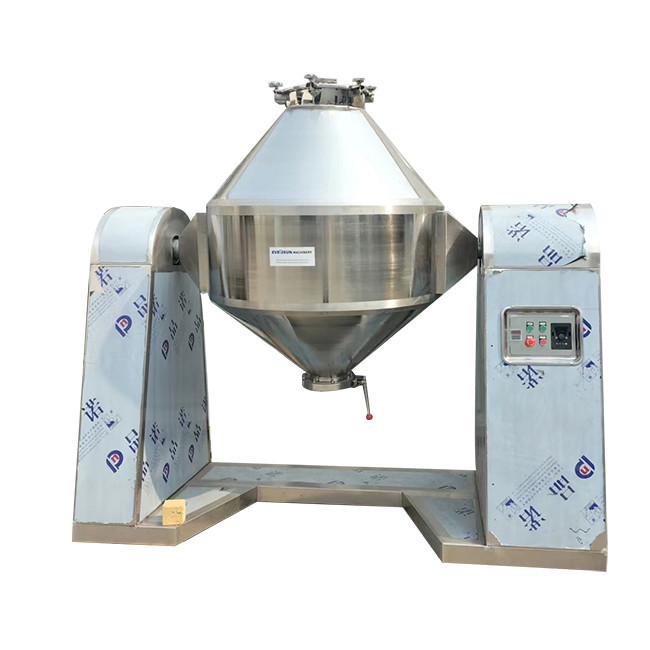

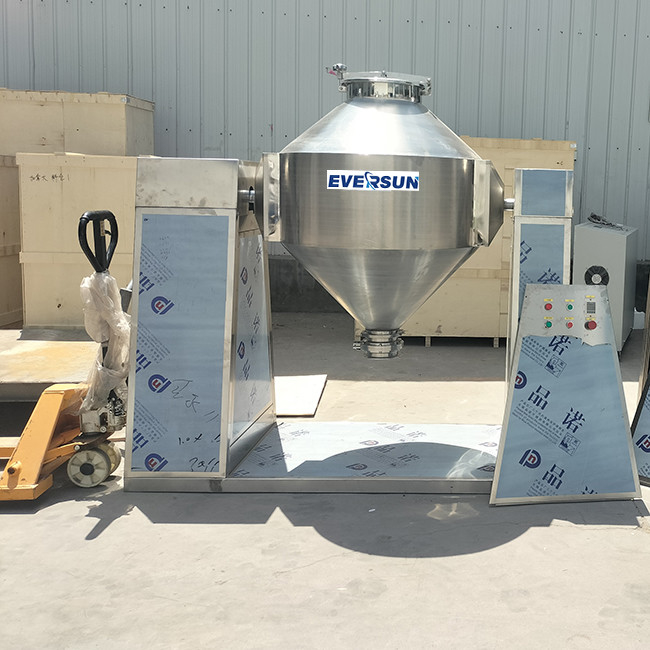

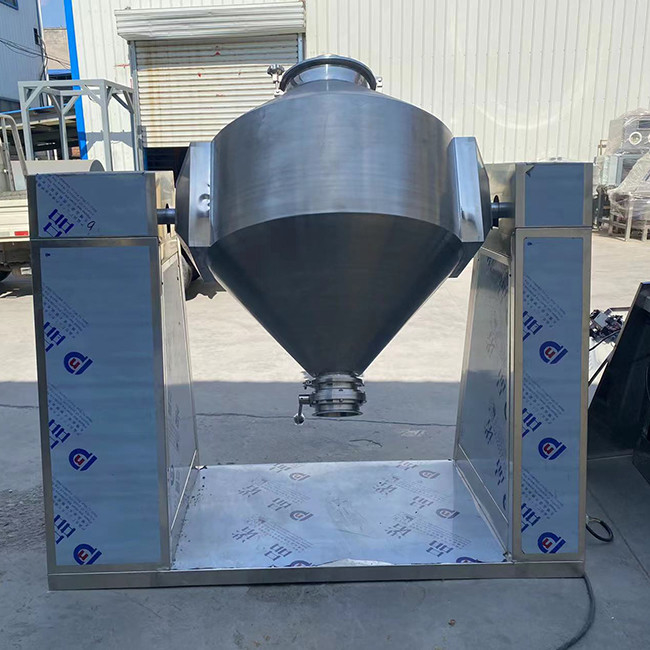

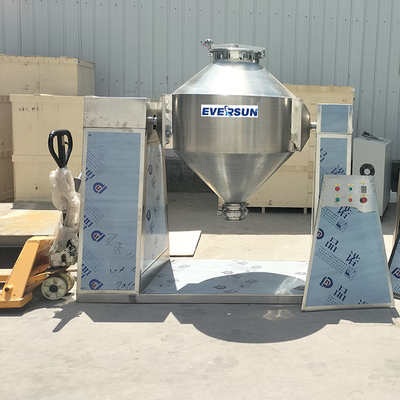

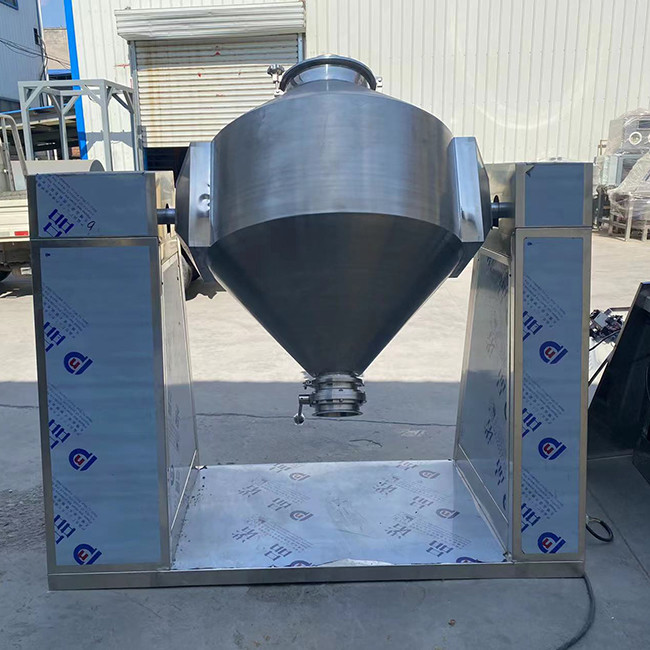

W Type High Speed Double Cone Shape Rotating Powder Blender For Animal Feed
Product Introduction
The double cone blender feeds powdery or granular materials into the double-cone container through vacuum or manual feeding, and with the continuous rotation of the capacity, the materials undergo complex impact movements in the container to achieve uniform mixing. This machine is an efficient mixing equipment. This machine is energy-saving, easy to operate, has low labor intensity, and has high work efficiency.
This machine is suitable for mixing powdery and granular materials in pharmaceutical, chemical, food, building materials, and other industries. During the mixing process, the materials have no centrifugal force, no gravity segregation, layering, and accumulation. The loading factor can reach more than 40%, but not more than 60%. The mixing fluidity of this machine is good.
Product Parameter
|
Model |
Total volume (L)
|
Effective volume (L)
|
Feeding amount (kg)
|
Feeding speed(rpm)
|
Power(KW)
|
Weight (kg)
|
|
ZD50
|
50
|
25
|
15
|
25
|
0.55
|
500
|
|
ZD150
|
150
|
75
|
45
|
20
|
0.75
|
650
|
|
ZD300
|
300
|
150
|
90
|
20
|
1.1
|
820
|
|
ZD500
|
500
|
250
|
150
|
18
|
1.5
|
1250
|
|
ZD100
|
1000
|
500
|
300
|
15
|
3
|
1800
|
|
ZD1500
|
1500
|
750
|
450
|
12
|
4
|
2100
|
|
ZD2000
|
2000
|
1000
|
600
|
12
|
5.5
|
2450
|
|
ZD3000
|
3000
|
1500
|
900
|
9
|
5.5
|
2980
|
|
More size can be customized
|
||||||
Product feature
1. Double cone mixer is suitable for crushing with different specific gravity or mixing with other additives.
2. Internal and external rotary mixing, high uniformity.
3. The mixing bucket can be tilted at any Angle to facilitate discharging and cleaning needs.
4. Equipped with an automatic timing device. Automatic stop can be set for 0~60 minutes.
5. The stainless steel butterfly valve is used to discharge materials, with no dust leakage or flying phenomenon.
6. The gravity diffusion principle is adopted for mixing, so the pressure feed to the material is small and the material will not be shear crushed.
7. The cylinder is made of high-quality stainless steel, the inner and outer walls are polished, no pollution to the material in the mixing process, low power consumption, easy cleaning. Simple operation, easy to clean.
Application
The application of double cone mixer is suitable for mixing powder and granular materials in chemical, pharmaceutical, food, building materials and other industries. It can mix materials evenly.
