| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | B |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Brush Vibrating Screen | Diameter: | From 400mm To 2000mm |
|---|---|---|---|
| Colour: | Support Customized | Mesh: | 2-635 Mesh |
| Material: | Stainless Steel Or Carbon Steel | Cleaning System: | Bouncing Ball/Rotary Brush/Ultrasonic System |
| High Light: | Sulfur Powder Vibrating Screen Rotary Sieve,SUS304 Vibrating Screen Sieve,Fine Powder Sieving Machine |
||
Product Introduction

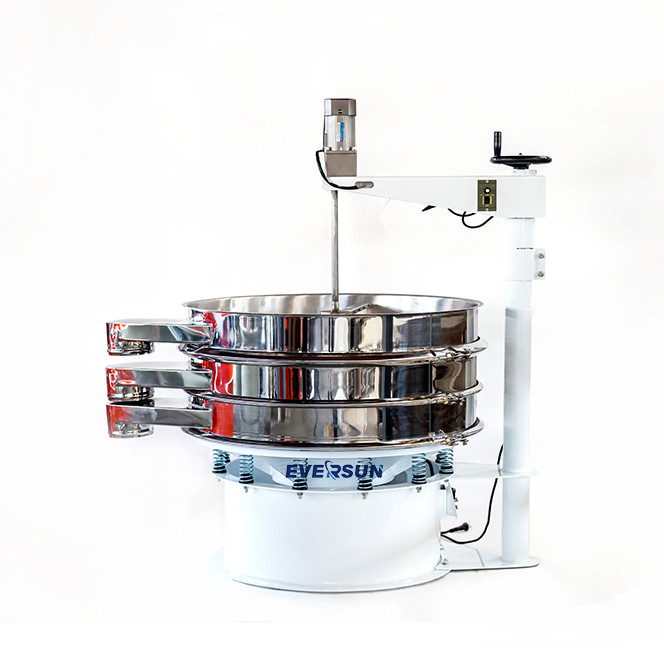

304 SUS Fine Powder Brush Vibrating Screen Rotary Sieve For Sulfur Powder
Vibrating sieve machine is a general screening, filtering equipment, it can be up to 5 layers, mainly used to deal with powder, particles and slurry materials, can screen out 6 grades of material. Vibrating sieve is a high-precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to change the screen quickly.It is fully enclosed and suitable for screening and filtering of particles, powder and mucilage.
In addition to the production of flared vibrating sieve machines, we can also produce gate type vibrating sieve machine, plus edge type vibrating sieve machine and ordinary vibrating sieve machine, at the same time we also support non-standard customization. Our screening machines ensure a high level of hygiene and safety and are CGMP and FDA and CE certified.
Product Parameter
|
Model No.
|
Screen
Diameter(mm)
|
Layer |
Power(kw)
|
Sizing
Accuracy(%)
|
Screen mesh |
Capacity (kg/hour)
|
|
B-600
|
560
|
1~5 |
0.25~0.55
|
85~95
|
2~500 |
200
|
|
B-800
|
760
|
1~5 |
0.55~0.75
|
85~95
|
2~500 |
500
|
|
B-1000
|
950
|
1~5 |
0.75~1.1
|
85~95
|
2~500 |
800
|
|
B-1200
|
1150
|
1~5 |
1.1~1.75
|
85~95
|
2~500 |
1200
|
|
B-1500
|
1450
|
1~5 |
1.5
|
85~95
|
2~500 |
1600
|
|
B-1800
|
1750
|
1~5 |
3~4.5
|
85~95
|
2~500 |
2000
|
| Machine can be customized based on your need | ||||||
Product feature
1. It is suitable for all kinds of particles, powder, slurry screening and filtration.
2. Design of a variety of screen cleaning devices, such as bouncing ball, rotary brush, ultrasonic system, will reduce the probability of blocking.
3. The machine can choose 1-5 layers of screen, can carry out the sorting of 2-6 levels at the same time, multiple discharge port, can rotate 360 degrees without dead Angle.
4. The machine has a variety of mesh structure, which can shorten the time of replacing the screen to 3-5 minutes.
5. The machine can be made into explosion-proof type to meet the needs of customers for special occasions.
6. We support non-standard customization, and can also produce machines for you according to the drawings provided by customers.
7. Optional surface treatment process: wire drawing treatment, sand blasting, mirror polishing.
Working principle
Rotary sieve equipment adopts vertical motor as vibration source. There are two hammer heads fixed on the upper and lower parts of the motor, so that the rotating motion of the motor becomes horizontal and vertical tilting motion, which is called three-dimensional motion. This movement is then transmitted to the screen surface. By adjusting the phase Angle of the hammer at both ends of the motor, the motion trajectory of the material on the screen surface can be changed.
Product picture

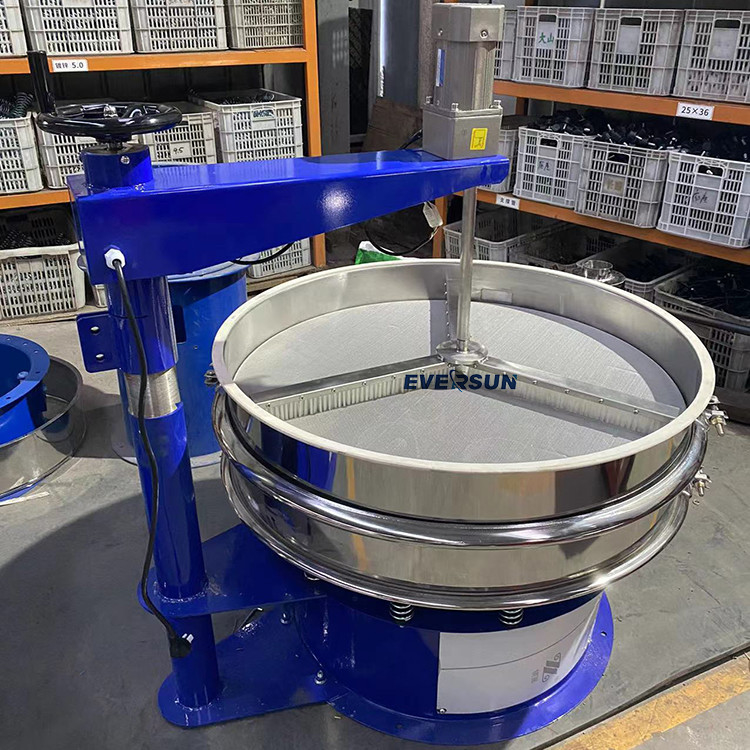

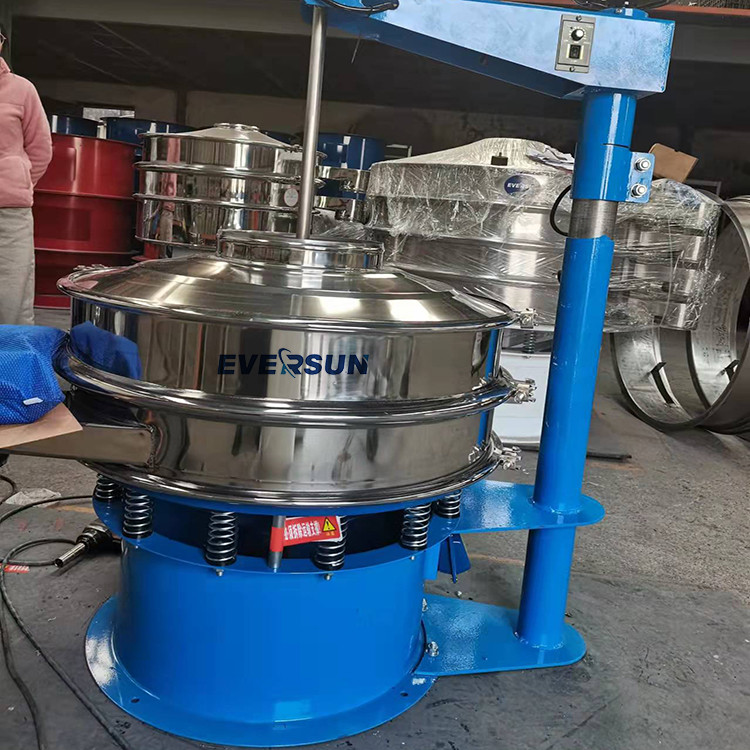

There are 3 cleaning methods of rotary sieve, in addition to brush cleaning, you can also use bouncing balls or ultrasonic system, each way of cleaning the net has its own unique, if you want to know more, please contact us. The image below shows several product photos of other cleaning methods.
