| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | ZD |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden |
| Delivery Time: | within 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Conical Screw Mixer | Volume: | Customized |
|---|---|---|---|
| Max Loading Capacity: | 300-500（Kg） | Material: | SUS304/316L,Carbon Steel |
| Cylinder Movement Mode: | Two-dimension | Material Type: | Powdery And Granular Materials |
| High Light: | Double Helix Cone Mixer,Vertical Dry Powder Blender,Stainless Steel Double Cone Blender |
||

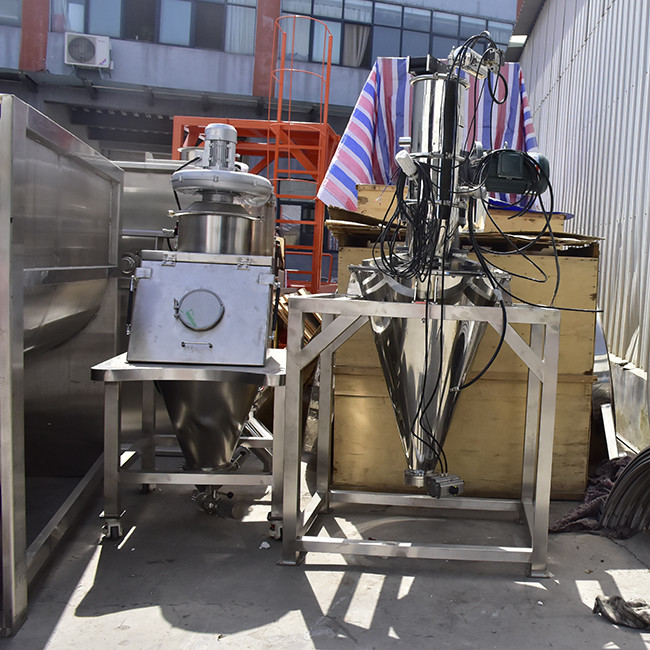

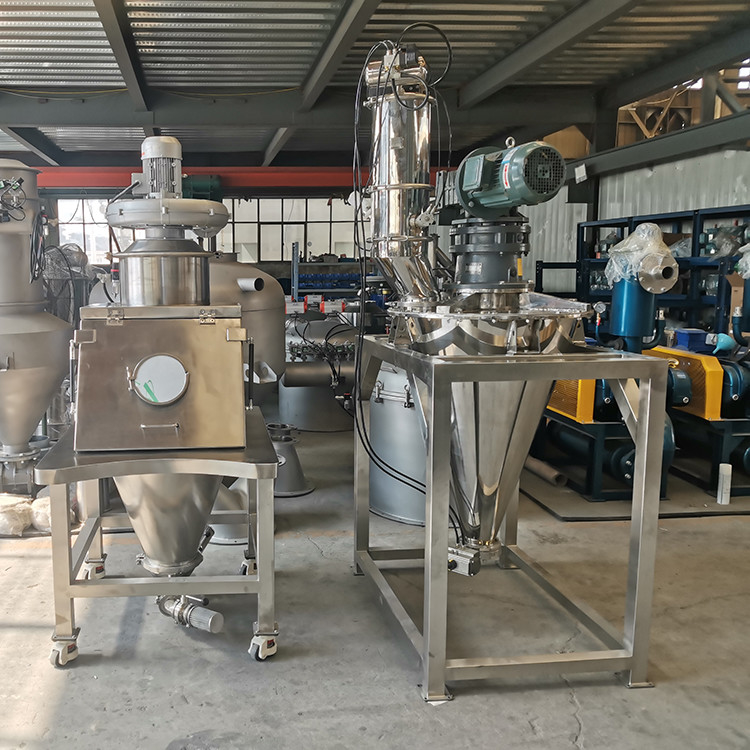

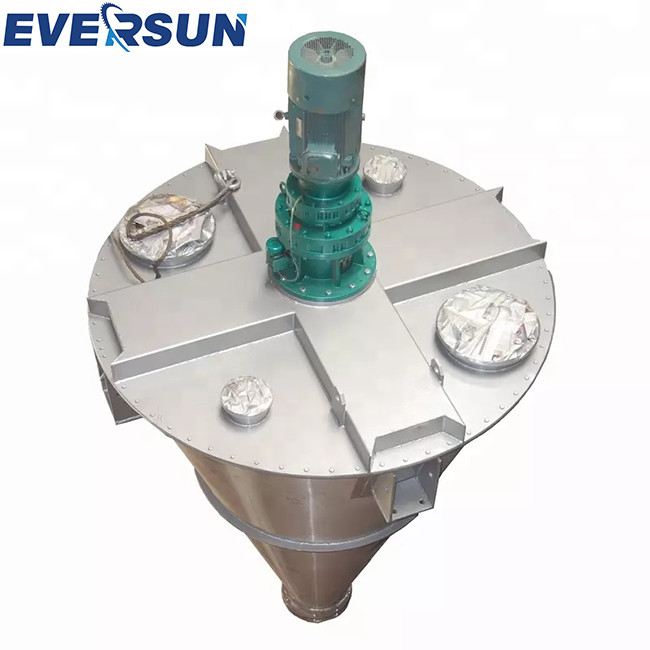

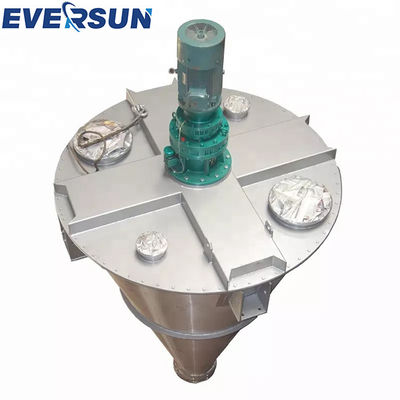

Stainless steel double helix cone mixer non-gravity mixer vertical dry powder blender
Product Introduction
Double helix cone mixer is a new type of high-efficiency and high-precision mixing equipment, which is widely used in mixing, reacting, and drying powder and powder (solid-solid), powder and liquid (solid-liquid), liquid and liquid (liquid-liquid) in the chemical industry, medicine, pesticide, dyestuff, petroleum, metallurgy, building materials, etc., cool down. The machine has wide adaptability to mixed materials, will not produce overheating for heat-sensitive materials, will not feed and grind granular materials, and will not produce layered segregation when mixing materials with different specific gravity and different particle sizes. The machine also has good adaptability to the mixing of coarse, fine, and ultrafine powders, fibers, or flakes.
Product Parameter
| Specifications | Volume(m3) | ||||||||
| 0.01 | 0.05 | 0.1 | 0.15 | 0.2 | 0.3 | 0.5 | 3 | ||
|
Power
|
0.37 | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 7.5 | |
| Rotate speed | Autogiration | 159 | 130 | 130 | 183 | 108 | 118 | 118 | 51 |
| r/min | Revolution | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Loading coefficient | 0.4-0.6 | ||||||||
| Material diameter | 20-100 mesh | ||||||||
| Mixing uniformity | Relative deviation (10min)<=1.5 | ||||||||
| Net weight KG | 120 | 150 | 200 | 230 | 400 | 500 | 600 | 2100 | |
| Boundary dimension | Diameter | 420 | 550 | 670 | 780 | 865 | 936 | 1142 | 2210 |
| Total height | 900 | 1100 | 1440 | 1700 | 1650 | 1960 | 230 | 3740 | |
| Cylinder height | 450 | 660 | 820 | 930 | 950 | 1022 | 1355 | 2650 | |
| Center distance of support | 370 | 490 | 605 | 715 | 805 | 856 | 1065 | 2130 | |
| Support to cylinder face | 100 | 100 | 140 | 140 | 145 | 215 | 215 | 245 | |
| Feeding port size | 65 | 100 | 120 | 120 | 150 | 200 | 200 | 300 | |
| Discharging port size | 100 | 100 | 120 | 140 | 200 | 225 | 225 | 325 | |
| Number of supports - aperture | 4-12 | 4-12 | 4-14 | 4-14 | 4-20 | 4-20 | 4-20 | 4-23 | |
| More model can be customized | |||||||||
Features
1. The surface is smooth and flat, wear-resistant and corrosion-resistant, durable, and widely suitable for food, medicine, pesticide, compound fertilizer, feed, the chemical industry, and other fields.
2. Short mixing time, high efficiency, can increase the efficiency by 2-3 times, and the mixing capacity is large, the charging coefficient is 20-30% higher than that of the drum type and 25-40% higher than that of the V-type mixer.
3. The mixing precision is high, the energy consumption is low, which can be reduced by about one-half (in terms of the material per unit weight), and the height of the mixer shell is low.
4. The discharge of material at the bottom is fast, the discharge is clean and neat, the bottom can be tightly closed, no material leakage, and the dead angle of material mixing can be reduced to a minimum.
5. The equipment is easy to clean, easy to replace the type of mixed materials, and reduces the maintenance work of the bottom bearing of the equipment, which is conducive to the development of the equipment in the direction of large-scale.
6. Functional options: dust removal, ventilation, and drying, explosion-proof, frequency conversion, weighing, material level sensing, cover opening sensor, etc.
Certificate
Our company can provide customers with qualified products or services stably, the whole process of EVERSUN Machinery’s products and services has passed the ISO9001:2015 quality management system,CE certification and German FDA statement,etc. Our factory also already have SGS factory inspection report certifacates. These not only fully prove that our customer service has been recognized by professional certification bodies, but also remind us to continue to improve, to provide customers with professional, meticulous, quality service!
