Coal Gangue Heavy Hammer Crusher Mobile Stone Crusher

Basic Information
Place of Origin: China
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: PCZ
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 sets/year
Detail Information
Name: Heavy Hammer Crusher Color: Customer Requirement
Material: SUS316L/304,Carbon Steel Usage: Crushing Work
Feeding Size: ≤1000mm Advantage: Low Noise
High Light:

Coal Gangue Heavy Hammer Crusher

,

Mobile Hammer Stone Crusher

,

SUS316L Hammer Crusher


Product Description

Product introduction

Heavy hammer crusher coal gangue crusher mobile hammer stone crusher


Hammer crusher is directly the maximum particle size of 600-1800 mm material broken to 25 or 25 mm below a section of crushing crusher, it is composed of hammer crusher box, rotor, hammer head, counter lining plate, sieve plate and so on.



Hammer crusher is suitable for crushing medium hardness materials in cement, chemical, electric power, metallurgy and other industrial sectors, such as limestone, slag, coke, coal and other materials in the crushing and fine crushing operation. Single stage hammer crusher Heavy hammer crusher, also known as compound hammer crusher, is mainly used for limestone crushing operations, large single stage hammer crusher can be 1 meter diameter of limestone directly broken to about 20mm, has a strong crushing capacity. Single stage hammer crusher has many applications in cement industry.

Product parameters



Model

Rotor diameter×

length(mm)
Feed size(mm)
Optimum feed size (mm)

Capacity

(t/h)

Motor

(kw)
DimensionL*W*H (mm)
PCZ1308
Φ1330×790
870×780
≤380
60-160
132
2880×2130×2390
PCZ1410
Φ1400×1000
1060×740
≤450
80-210
2×90(160)
2830×2100×2485
PCZ1610
Φ1600×1000
1090×930
≤480
100-230
2×132
3370×2415×2750
PCZ1612
Φ1600×1200
1340×1140
≤500
120-350
2×160
3370×2613×2750
PCZ1615
Φ1600×1500
1570×1140
≤550
200-550
2×200
3370×2925×2750
PCZ1716
Φ1700×1600
1420×1200
≤600
400-850
2×250
3520×3000×3210
PCZ1720
Φ1700×2000
2030×1200
≤650
500-1000
2×400
3670×3390×3330
PCZ1920
Φ1900×2000
1980×1210
≤750
800-1500
2×500
4490×3910×3600
PCZ2225
Φ2200×2500
2530×1610
≤1000
1500-3000
1250
4890×5010×4560

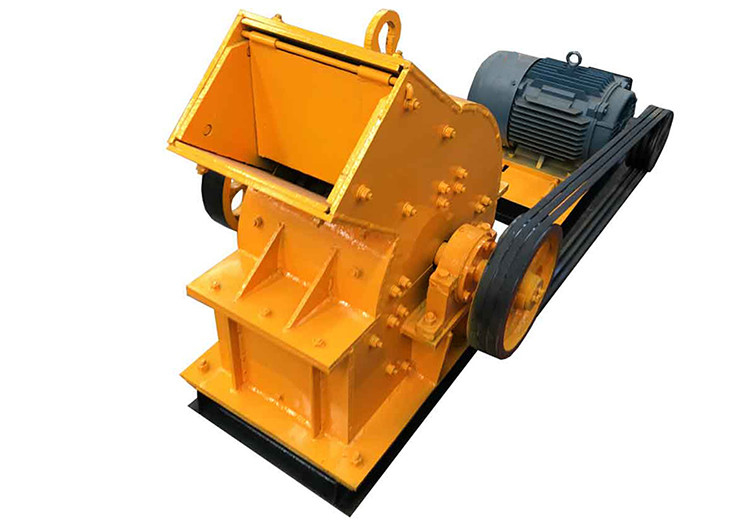

Coal Gangue Heavy Hammer Crusher Mobile Stone Crusher 0
Product features




1. The feeding capacity of hammer crusher is large, which meets the coarse crushing feeding standard, but the discharging particle size is lower than 25-35mm, which also meets the medium fine crushing discharging standard.



2, Hammer crusher structure is relatively simple, operation and maintenance is very convenient.



3, The design is reasonable, the material is not easy to plug, improve the production efficiency, the operation is very stable.



4, The equipment is made of strong wear resistance material, long service life.



5, The equipment has strong sealing, and it is not easy to produce dust pollution in the production process.

6, The finished product has uniform particle size and good particle shape.

7, Hammer crusher can not only be used for the first crushing, can also be used for the second crushing, but also can realize the one-time molding of sand and stone materials.


Application



Hammer crusher is widely used in metallurgy, chemical industry, building materials, transportation and other industrial sectors. Often used for crushing ore, ore processing has iron ore, shale, limestone, granite and other ores, we can according to the different needs of customers, or capacity needs, choose different crushing chamber, meet the ore grinding, can be considered from the size of the workplace and multiple factors for customers, so that the customer operation and maintenance more simple, more convenient.

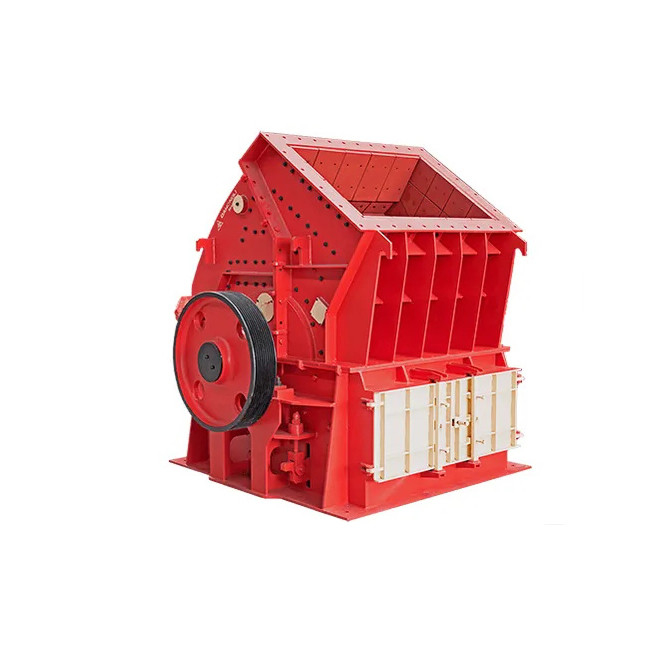

Coal Gangue Heavy Hammer Crusher Mobile Stone Crusher 1
