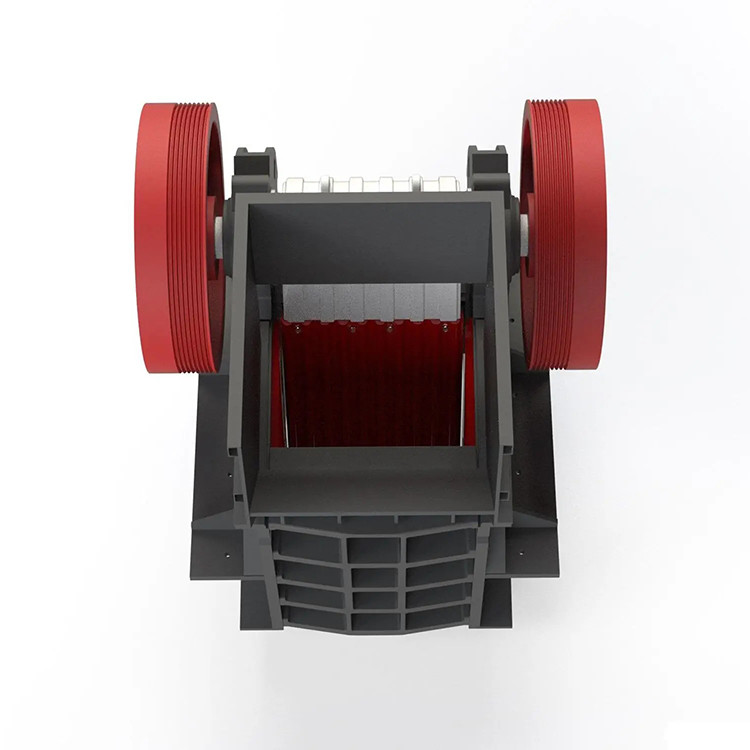

Multifunctional Automatic Large Jaw Crusher Granite Sand Aggregate Ore Crusher

Basic Information
Place of Origin: China
Certification: ISO,CE
Model Number: PE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 sets/year
Detail Information
Name: Jaw Crusher Keyword: Small Stone Crusher
Material: SUS316L/304,Carbon Steel Usage: Crushing Work
Max Feeding Size: 1020mm Or Customized Advantage: Low Noise
High Light:

Multifunctional Automatic Large Jaw Crusher


Granite Sand Jaw Crusher


Automatic Aggregate Ore Crusher

Product Description

Product introduction

Multifunctional automatic large jaw crusher granite sand aggregate ore crusher
Jaw crusher is mainly used in metallurgy, mining, chemical industry, cement, construction, refractory materials and ceramics and other industrial sectors for medium and fine crushing of all kinds of medium hard ore and rock. It is mainly composed of a frame, eccentric shaft, jaw plate, connecting rod, adjusting mechanism and locking spring. It has the characteristics of large crushing ratio, uniform product granularity, simple structure, reliable work, easy maintenance, economic operating costs and so on. Hubei crusher is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industry and many other departments, crushing compressive strength is not more than 320 mpa of all kinds of materials.
Product parameters


Model Feed Opening(mm) Max. Feed Size(mm) Capacity(t/h) Power(kw)
PE-150×250 150×250 125 1-5 5.5
PE-250×400 250×400 210 5-20 15
PE-400×600 400×600 340 16-65 30
PE-500×750 500×750 425 50-100 55
PE-600×900 600×900 500 50-120 55
PE-750 ×1060 750×1060 630 52-180 110
PE-800×1060 800×1060 640 136-230 110
PE-900×1200 900×1200 750 140-260 110
PE-1000×1200 1000×1200 850 315-342 110
PE-1200×1500 1200×1500 1020 400-800 160
PE-250 ×750 250×750 210 15-30 22
PE-250×1000 250×1000 210 16-52 30
PE-250 ×1200 250×1200 210 20-60 37
PE-300×1300 300×1300 260 30-70 55

Multifunctional Automatic Large Jaw Crusher Granite Sand Aggregate Ore Crusher 0
Product features

1. The crushing chamber is deep and has no dead zone, improving the feeding capacity and output.

2, its crushing ratio is large, the product particle size is uniform.

3, gasket type discharge port adjustment device, reliable and convenient, large adjustment range, increase the flexibility of the equipment.

4, the lubrication system is safe and reliable, easy to replace parts, equipment maintenance is simple.

5, simple structure, reliable work, low operating costs. Device energy saving: The energy saving of a single machine is 15% ~ 30%, and the energy saving of the system is more than double.

6, discharge port adjustment range is large, can meet the requirements of different users.

7, low noise, less dust.


Jaw crusher is widely used in metallurgy, chemical industry, building materials, transportation and other industrial sectors. Often used for crushing ore, ore processing has iron ore, shale, limestone, granite and other ores, we can according to the different needs of customers, or capacity needs, choose different crushing chamber, meet the ore grinding, can be considered from the size of the workplace and multiple factors for customers, so that the customer operation and maintenance more simple, more convenient.
Multifunctional Automatic Large Jaw Crusher Granite Sand Aggregate Ore Crusher 1
