| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | ESYS |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000sets/year |
| Product Name: | Standard Analysis Screen | Function: | Powder Grading, Liquid Filtration |
|---|---|---|---|
| Advantage: | Low Noise And High Efficiency | Layer: | 1~8 Layer |
| Surface Treatment: | Mirror Polishing And Polishing | Material: | Carbon Steel,304/316L Stainless Steel |
| High Light: | Ultrasonic Screen Test Sieve Shaker,Fine Material Vibratory Screening Machine,Polishing Test Sieve Shaker |
||
Product introduction

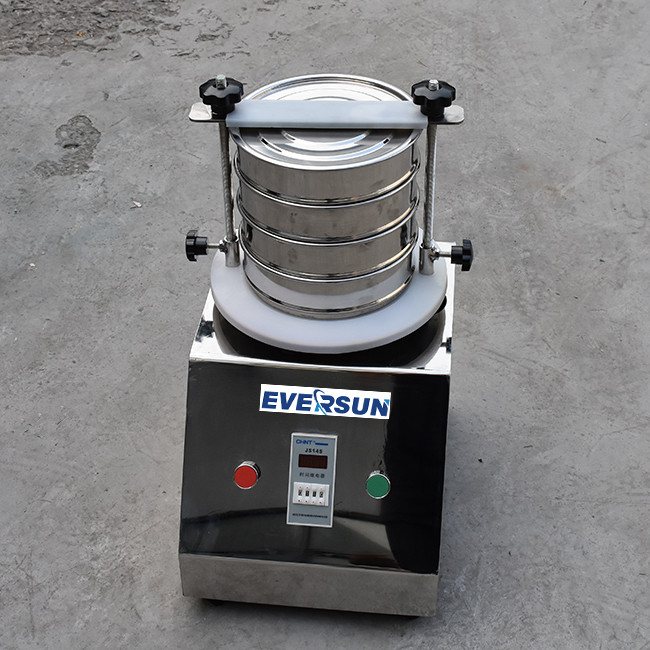

High-frequency ultrasonic screen test sieve shaker for fine material screening
Test sieve shaker is a set of powder grading, liquid filtration as one of the standard analysis screen; It is suitable for laboratory, quality control room for particle size structure accurate analysis of particles, powder, liquid solid content and debris volume test analysis. It is characterized by low noise and high efficiency. Using power generator, product multiple high frequency vibration, high efficiency sieve sample; Standard screen body to ensure high accuracy of sample analysis; Electronic delay device, according to the need to set the same material screening time, to ensure that the sample analysis data is correct, the hard error to a minimum, in order to make a standard judgment on product quality.
Product parameter
| Model | Diameter | Mesh size(mesh) | Layer | Vibration frequency | Amplitude | Power | Motor speed(r/min) | Dimension |
| ESYS-200 | 200 | ≤1000 | 1~8 | 1400 | 1~4 | 0.12 | 1400 | 360*300*470 |
| ESYS-300 | 300 | ≤1000 | 1~8 | 1400 | 1~4 | 0.12 | 1400 | 410*380*350 |
Product feature
1. Set the screening time of the same material according to the needs to ensure the consistency of sample analysis data, and the platform runs without fixing.
2. It can be turned off at a fixed time, the time can be adjusted from 1 second to 9999 seconds, and it can be operated with a full-featured panel.
3. Accurate judgment of product quality.
4. Beautiful appearance, low energy consumption, high efficiency, no dust pollution, easy installation and movement, and durability.
5. The mesh is not blocked, the powder is not flying, the feeding is fast and the effect is obvious.
6. No mechanical action, simple maintenance, long service life, and material contact parts made of stainless steel, environmental health.
7. A kind of granular material can precisely separate 2 to 9 particle segments at the same time.
8. The frequency, mode and amplitude of the vibration can be adjusted synchronously at any time.
Application
It is widely used in abrasives, ground, metallurgy, pharmacopeia, metallurgy, chemical industry, medicine, powder, building materials, national defense, geology and other departments of scientific research and production, laboratory, quality control room, and universities laboratory on granular, powdered material particle size structure, liquid-solid content and debris amount of accurate screening, filtration, detection.
