Round Plastic Vibrating Screen For Chemical Particle Powder

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: XZS
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Plastic Vibrating Screen Layer: 1~5
Material: Stainless Steel, PP Or Carbon Steel Type: Circular
Usage: Sieving, Grading, Filtering, Separation Application: Powder, Particles, Small Solids,slurry
High Light:

Particle Plastic Vibrating Screen

,

Powder Round Vibrating Screen

,

Chemical Circular Vibrating Screen


Product Description

Product Introduction



Plastic Vibrating Screen Particle Powder Round Vibrating Screen For Chemical Use

Plastic vibrating screen is mainly to solve the problem of chemical reaction between the material and metal in the screening. plastic vibrating screen from the screen frame, screen and cleaning device is completely made of non-metallic materials, completely eliminate some special materials and metal contact will produce chemical reactions.The machine has a wide range of applications, any powder, slurry, granular materials can be screened, classification accuracy of more than 95%. It can be configured with 1 to 5 layers of screen, can be continuously screened out 2 to 6 different levels of material, users can choose the appropriate number of screen layers according to the actual needs.

EVERSUN can provide customized service for our customers, we can not only produce standard equipment, but also provide non-standard equipment. We can customize screening equipment according to the individual needs of customers’ industries. From machine design, production and processing, installation and operation to after-sales service, EVERSUN people are meticulous Tailor-made for you, to meet your different needs.



Technical Parameter




ModelEquipment diameterPower(KW)DeckEffective screening area(m2)Screen mesh
EXZS-600600mm/24inch0.251-50.228920 microns to 20 mm
EXZS-800800mm/32inch0.550.4183
EXZS-10001000mm/40inch0.750.6359
EXZS-12001200mm/48inch1.10.9499
EXZS-15001500mm/60inch1.51.5386
EXZS-18001800mm/70inch31-42.2687
EXZS-20002000mm/78inch4.52.8893

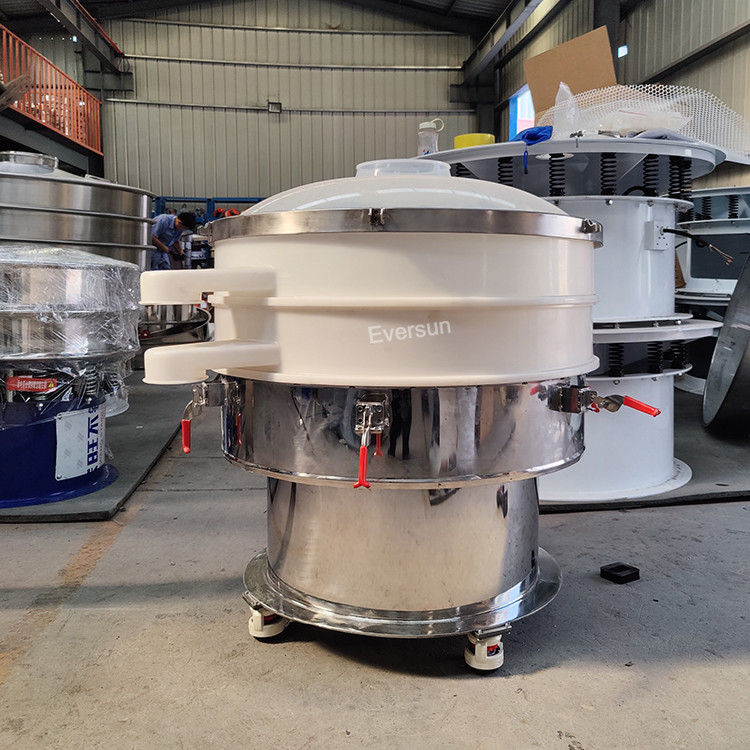

Round Plastic Vibrating Screen For Chemical Particle Powder 0

Product feature


1. The overall sealing performance of the equipment is good, and the dust generated by the equipment itself is small, which is conducive to protecting the health of the operator;

2. Exquisite design and convenient movement, movable wheels can be added, surface treatment process optional polishing, sandblasting, mirror grinding, etc.;

3. The unique design of the grid frame, with automatic cleaning device, commonly used cleaning device when bouncing ball, users can also choose rotary brush or ultrasonic blind removal system. The machine is easy to change the net, about 3 minutes to change the net;

4. Automatic discharge of impurities and coarse materials, which can be operated continuously for 24 hours;

5. The machine can be made into explosion-proof type, the motor, control box, junction box, etc. into explosion-proof type;

6. The screen machine can screen up to six varieties at a time, and it is recommended to use 3 layers;

7. We support non-standard customization, but also according to your drawing production.

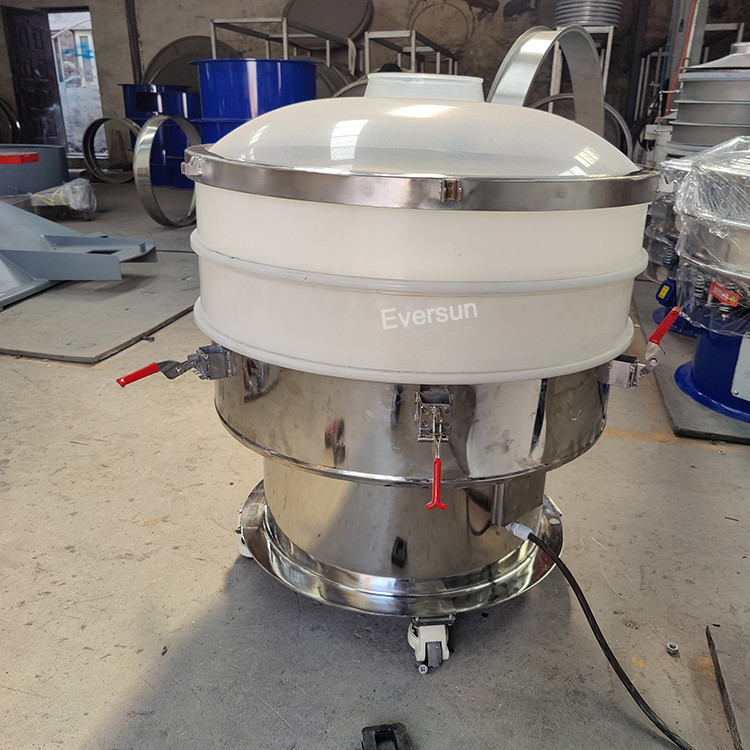

Round Plastic Vibrating Screen For Chemical Particle Powder 1

Product type



We can do different types of standard vibrating screen , but also can provide you with non-standard customization.

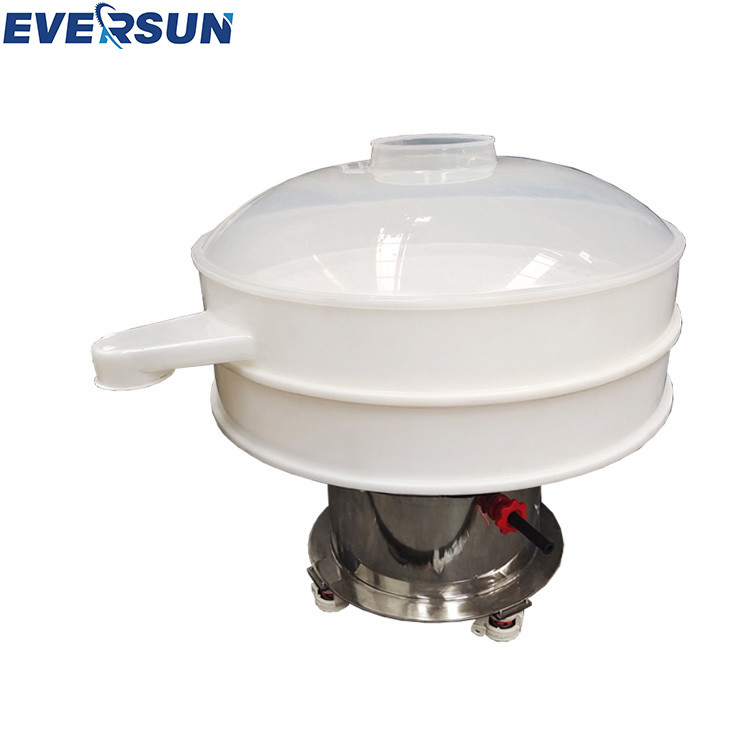

Round Plastic Vibrating Screen For Chemical Particle Powder 2
