| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | B450 |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000sets/year |
| Name: | 450 Type Vibrating Filter | Dimension: | Customization |
|---|---|---|---|
| Noise: | Low Noise | Function: | Separation\sorting\sieving\filter |
| Surface Treatment: | Mirror Polishing | Application: | Chemicals, Food, Medicine, Etc. |
| High Light: | 304 Stainless Steel Vibrating Filter Sieve,Food Grade Vibratory Screening Machine,450 Type Vibrating Filter Sieve |
||
Product introduction

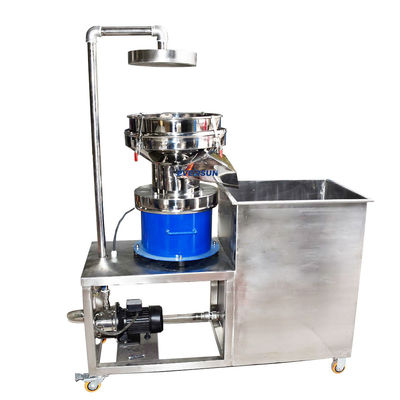

B Series 304 Stainless Steel Food Grade Fruit Juice 450 Type Vibrating Filter
450 Type Vibrating Filter is a single layer of thin material, powder classification processing efficient equipment, has the fixed model, 450 low noise vibrating filter is a kind of easy to move, high efficiency, low noise, small volume of small vibrating screen filter, especially suitable for large particle content of powder screening and slurry filtration; For example, the filtration of soybean milk, milk, egg liquid, etc. It is the best choice for small and medium-sized enterprises screening and filtering products. Widely used in food, pharmaceutical, chemical, paint, ceramics and other industries, can maximize the quality of materials.
Use 325-mesh screen to filter paint material with specific gravity of 1.1, up to 1200 litres per hour, and use 30-mesh screen to screen flour can process 700 kilograms per hour. Excellent filtration performance of ceramic uranium material. In fast food restaurants and chain distribution centers, pastry room of flour, bread powder screening and removal of miscellaneous, fruit and vegetable juice, soymilk filtration have been successfully applied.
Product parameter
| Model | Power | Effective screening diameter | Dimension (mm) |
Amplitude |
| B450 | 0.18 kw | 380 mm | 460*550*665 | 2-5mm |
|
Support customized production
|
||||
Product features
1. Fine screening (can screen liquid material less than 1000 mesh);
2. High screening yield (meet 1200l -3000 L);
3. Selected stainless steel original material, corrosion prevention and high temperature resistance;
4. Fully closed structure, no overflow, low energy consumption, low energy consumption;
5. Screen machine inside and outside polishing polishing treatment, easy to clean;
6. Screen replacement is simple and quick, taking only 3 to 5 minutes;
7. Compact model, light weight, can move arbitrarily, does not take up space;
8. Can be customized according to user needs.
Application
ceramic: mud, ceramic raw materials.
Chemical industry: paint, ink, color paste, paint, latex paint, aluminum pulp, etc.
Food industry: starch, soymilk, fruit juice, drinks, milk mouth, condiments, flour, soy sauce, etc.
Pharmaceutical industry: Chinese and Western medicine powder, Chinese and Western medicine liquid, etc.
Abrasives: metal, metallurgy and mining; Silicon carbide, quartz sand, alumina, refractory materials, grinding powder, etc.
Other industries: mud, pulp, waste liquid, etc.
