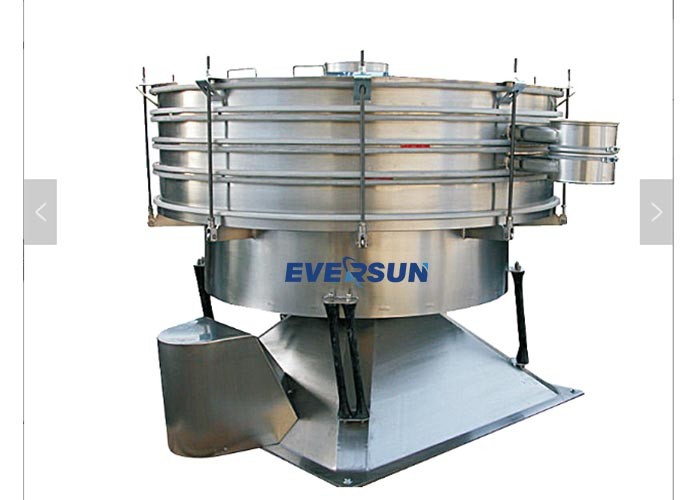

1 - 5 Layer Grains Tumbler Screening Machine Cereal Separating Machine

Basic Information
Place of Origin: CHINA
Certification: ISO,CE
Model Number: YS
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Keyword: Tumbler Sieving Machine Application: Chemicals, Food And Spices, Plastics, Etc
Layer: 1~5 Advantage: Precision Screening And Mass Production
Net Clearing Mode: Bouncing Ball, Ultrasonic System, Etc Material: Stainless Steel304/316L,Carbon Steel
High Light:

Grains Tumbler Screening Machine


Cereal Separating Machine


5 Layer Tumbler Screening Machine

Product Description

Grains Screening Machine Cereal Separating Machine Tumbler Sieving Machine


Product Introduction

The eyes look at the hands of screening is the most simple screening, tumbler sieving machine is the mechanical simulation of this, it is so far the most effective simulation of artificial screening movement of the effective principle (screening accuracy, efficiency, screen life are 5 ~ 10 times of the conventional circular screen), in line with all ranges of fine, ultrafine powder and granular materials, especially suitable for difficult to handle the material.


Up to five times the output per unit area; Accurate to 6 stages of separation, screening efficiency up to 90%-99%; Using silicone rubber ball, ultrasonic and other efficient cleaning device system sieve hole will not be blocked. Sealed dustproof, safe operation; The acceleration is 4-5 times lower than the vibrating screen, the life of the screening parts is improved and the maintenance is reduced; Low noise < 75 db, low dynamic load of foundation.

 Model  YS-1000/1200/1600/2000/2400/2600
 Screen mesh area(m2)  0.66-5.31
 Frequency (r/min)  220-280
 Diameter(mm)  1000-2600 or customized
 Leaning angle of screen (degree)  0-10
 Screen mesh  ≤1000 mesh
 Amplitude(mm)  20-70
 Power(KW)  1.5-5.5
 Layer(s)  According to demand
Net clearing mode  Bounce ball clean,Swivel brush clean,Ultrasonic clean
 Structure material  Carbon Steel, SUS304, SUS316L














1 - 5 Layer Grains Tumbler Screening Machine Cereal Separating Machine 0


 1. High efficiency, effective simulation of artificial screening action and process, the material on the screen surface presents gradually open spiral motion, material and screen mesh contact, screening accuracy up to 90~95.


2. Protect the material, soft rock screening, will not damage the original structure of the wool particles, not easy to generate static electricity, flammable and explosive material screening is a good choice.


3. Easy to disassemble and assemble. Round building block type assembly structure, easy to assemble and disassemble. The discharge port can be rotated 360 degrees at will.


4. Compared with traditional screening equipment such as rotary vibrating screen and linear screen, the processing capacity per unit area can reach up to 5 times.


5. The use of ordinary motor as a power source, the service life is several times higher than the vibration motor.


6. The use of low frequency and small load work, the acceleration is 4.5 times lower than the vibrating screen, the vertical acceleration value of the material particles is low, so that the screen is not easy to damage.


1 - 5 Layer Grains Tumbler Screening Machine Cereal Separating Machine 1


Tumbler sieving machine is widely used in chemical, food, medicine, plastics, mining, wood industry, agriculture, metallurgy, construction and other industries of fine particles and fine powder material classification treatment.


Food industry: flour, sugar, salt, alkali, monosodium glutamate, soymilk, etc.


Pharmaceutical industry: Chinese medicine powder, western medicine powder, Chinese and Western medicine granules, etc.


Chemical industry: resin, paint, rubber, plastic, fertilizer, urea, etc.


Metallurgical industry: quartz sand, zinc oxide, magnesium oxide, electromagnetic powder, etc.


1 - 5 Layer Grains Tumbler Screening Machine Cereal Separating Machine 2
