200mm Timing Vibrating Screen Machine Particle Size Distribution Testing

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Certification: ISO,CE
Model Number: ESYS
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000sets/year
Detail Information
Product Name: Testing Screen Machine Noise: <50dB
Layer: 1~8 Layer Application: Powder Classification, Liquid Filtration
Surface Treatment: Mirror Polishing And Polishing Material: Carbon Steel,304/316L Stainless Steel
High Light:

Timing Vibratory Screening Machine


200mm Vibrating Screen Machine


Polishing Testing Screen Machine

Product Description

Product introduction

Particle Size Distribution Testing Screen Machine 200mm Timing Vibrating Screen


Testing Screen Machine is a set of powder classification, liquid filtration as one of the standard analysis screen; Suitable for laboratory, quality control room for particle size structure analysis, liquid solid content and debris content test analysis. It has the characteristics of low noise, high efficiency and high precision. Adopt new recommended power generator, generate multiple high frequency vibration, efficient sieve sample; Standard screen body to ensure high accuracy of sample analysis; Electronic delay device, according to the need to set the same material screening time, to ensure the uniformity of sample analysis data, the test error to a lower degree, in order to make effective judgment of product quality.


It is widely used in particle analysis of soil, pharmaceutical, metallurgy, mining, coal, food and other industries. Screening results are efficient, reliable, is the ideal choice for scientific research and production, quality control and research and development.


Product parameter


No. Name Unit Parameter
1 Diameter mm φ300/φ200/φ100/φ75
2 Sieve mesh Size mm 0.025~3
3 Motor Power KW 0.12kw
4 Noise dB <50
5 Amplitude mm 0~3
6 Vibrating Frequency times/min 1400
7 Shape Size mm 300+N*50
8 Power Source HZ 220V50HZ
9 Weight KG 35


This type of Testing screen machine can be selected with different mesh number or aperture φ200mm national standard test screen frame.

Φ200 test screen frame according to the screen surface material is divided into wire woven mesh test screen and metal perforated plate testing screen.

1, metal wire woven mesh testing screen using the national standard GB/T6003.1-2012 (the original GB/T6003.1-1997) production, the basic size of the mesh, in line with the international standard ISO3310-1:190 R20/3, R20, R40/3 series, screen material for brass, tin bronze, stainless steel;

2, metal perforated plate testing screen, also known as plate screen, is generally used for more than 3mm specifications, there are square holes and round holes.

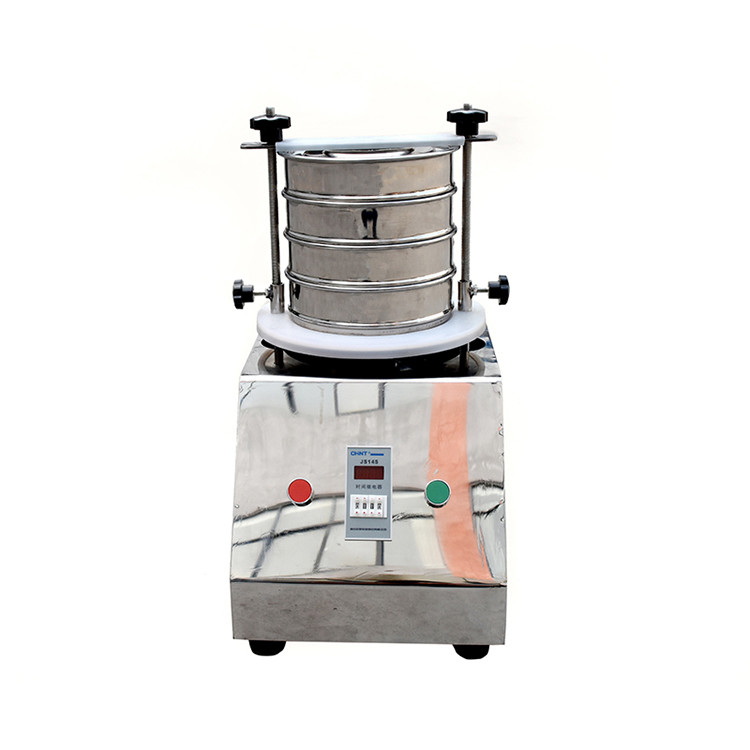

200mm Timing Vibrating Screen Machine Particle Size Distribution Testing 0


Product feature


1. Exquisite design, compact structure, easy to use.


2. Good sealing, low noise, no dust pollution.


3. Small size, light weight, easy to move, simple maintenance.


4. Can be used single or multi-layer.


5. The efficiency and precision of the standard test screen are high.

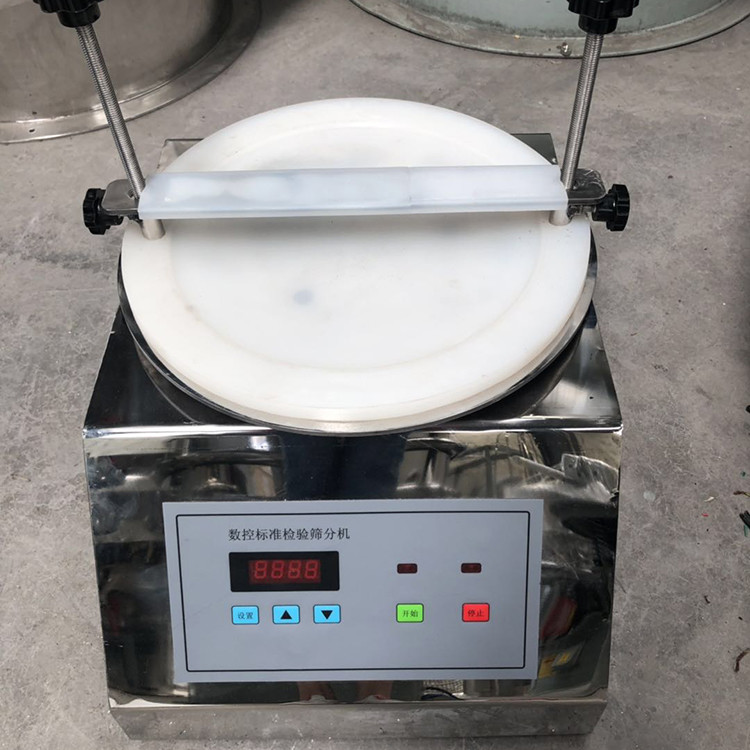

200mm Timing Vibrating Screen Machine Particle Size Distribution Testing 1

200mm Timing Vibrating Screen Machine Particle Size Distribution Testing 2

200mm Timing Vibrating Screen Machine Particle Size Distribution Testing 3

Selection Guide


1. The special testing screen machine for the laboratory must be purchased beautiful appearance, practical, small size, accurate mesh, after professional detection instrument inspection, in line with the national standard GBT6003-1997 or international standard ISO3310-1:1990 standard screen.

2. Buyer shall provide mesh size and wire diameter.

3. The Purchaser shall provide the type and relevant parameters of the tested materials

4. Choose square or round screen

5. National standards in the standard testing screen machine 120# above the screen machine is braided with copper, such as the need for stainless steel, please explain

6. The standard testing screen produced by our company is in line with national and international standards, the screen frame is made of stainless steel material (SUS304), the screen can be made of copper net or stainless steel net.
