| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | ESYS |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000sets/year |
| Product Name: | Test Screen Machine | Function: | Granules Sifting |
|---|---|---|---|
| Application: | Particle Size Classification/particle Size Detection | Layer: | 1~8 Layer |
| Surface Treatment: | Mirror Polishing And Polishing | Material: | Carbon Steel,304/316L Stainless Steel |
| High Light: | Circular Granules Sifter Machine,Stainless Steel Granules Sifter Machine,8 Layers Test Vibratory Screening Machine |
||
Product introduction
Circular Stainless Steel 8 Layers Test Screen Machine Granules Sifter Machine
Test screen machine is also called standard test screen, standard inspection screen, standard analysis screen, mainly applicable to various specifications, irregular particle size composition detection and superhard material production classification and particle size inspection. High screening precision, accurate detection results. The machine is small in size, light in weight, stable without vibration, good sealing performance.Test screen machine by the upper fixed brass nut, press plate, screen cover, screen frame, screen frame, screen bottom, isometric adjustment rod and so on components, all parts are the selection of high quality SUS304 stainless steel refined processing, with each other to do flexible, high exchange performance.
Test screen machine is a kind of timing automatic shutdown, to ensure the repeatability of the test, the function of comprehensive operation more simple, granularity analysis instrument. A particle can be accurately divided into 2~7 particle segments at the same time. It can be used for slurry fineness and debris content analysis, low noise; Platform operation without fixing. Adjust vibration fast, adjustable amplitude.
Product parameter
| Model |
Diameter (mm) |
Mesh size(mesh) | Layer |
Vibration frequency (t/min) |
Amplitude (mm) |
Power (kw) |
Motor speed(r/min) |
Dimension (mm) |
| ESYS-200 | 200 |
≤1000 |
1~8 | 1400 | 1~4 | 0.12 | 1400 | 360*300*470 |
| ESYS-300 | 300 |
≤1000 |
1~8 | 1400 | 1~4 | 0.12 | 1400 | 410*380*350 |
The larger the mesh number, the finer the particle size of the material; The smaller the mesh, the larger the particle size of the material. Screen size is the size of the screen through which the particles can pass, expressed as the number of screens in a one-inch (25.4mm) wide screen, and therefore called the mesh number.
| Mesh number | Aperture | Mesh number | Aperture | Mesh number | Aperture |
| 2 mesh | 12.5 | 45 mesh | 0.4 | 220 mesh | 0.065 |
| 3 mesh | 8 | 50 mesh | 0.355 | 240 mesh | 0.063 |
| 4 mesh | 6 | 55 mesh | 0.315 | 250 mesh | 0.061 |
| 5 mesh | 5 | 60 mesh | 0.28 | 280 mesh | 0.055 |
| 6 mesh | 4 | 65 mesh | 0.25 | 300 mesh | 0.050 |
| 8 mesh | 3 | 70 mesh | 0.224 | 320 mesh | 0.045 |
| 10 mesh | 2 | 75 mesh | 0.2 | 325 mesh | 0.043 |
| 12 mesh | 1.6 | 80 mesh | 0.18 | 340 mesh | 0.041 |
| 14 mesh | 1.43 | 90 mesh | 0.16 | 360 mesh | 0.040 |
| 16 mesh | 1.25 | 100 mesh | 0.154 | 400 mesh | 0.0385 |
| 18 mesh | 1.12 | 110 mesh | 0.15 | 500 mesh | 0.0308 |
| 20 mesh | 1 | 120 mesh | 0.125 | 600 mesh | 0.026 |
| 24 mesh | 0.8 | 130 mesh | 0.112 | 800 mesh | 0.022 |
| 26 mesh | 0.71 | 140 mesh | 0.105 | 900 mesh | 0.020 |
| 28 mesh | 0.68 | 150 mesh | 0.100 | 1000 mesh | 0.015 |
| 30 mesh | 0.6 | 160 mesh |
0.096 |
1800 mesh | 0.010 |
| 32 mesh | 0.58 | 180 mesh |
0.090 |
2000 mesh | 0.008 |
| 35 mesh | 0.50 | 190 mesh | 0.080 | 2300 mesh | 0.005 |
| 40 mesh | 0.45 | 200 mesh | 0.074 | 2800 mesh |
0.003 |
Product feature
1, Screen frame, screen cover, screen bottom selection of high quality stainless steel material SUS316 corrosion resistance, SUS304 rust, 08F steel plate (chrome plating), aluminum plate, material tensile molding, no rust, no magnetic, with precision, will not leak water, wall thickness 0.6MM durable no deformation, surface polishing, delicate and beautiful.
2, Screen and screen frame using welding connection, can withstand 400° high temperature, can be used for inorganic, organic solution. Solid connection, no gap, no clamping material.
3. All the standard screens have good interchangeability and consistency. Different periods of the same size screen, to ensure consistent mesh. Different periods of the same size screen, to ensure consistent mesh.
4, It can be multi-layer installation and use, can be a material into 2-7 different particle segments.
5, Test screening time through the time relay to do control, accurate space time test time and accuracy.

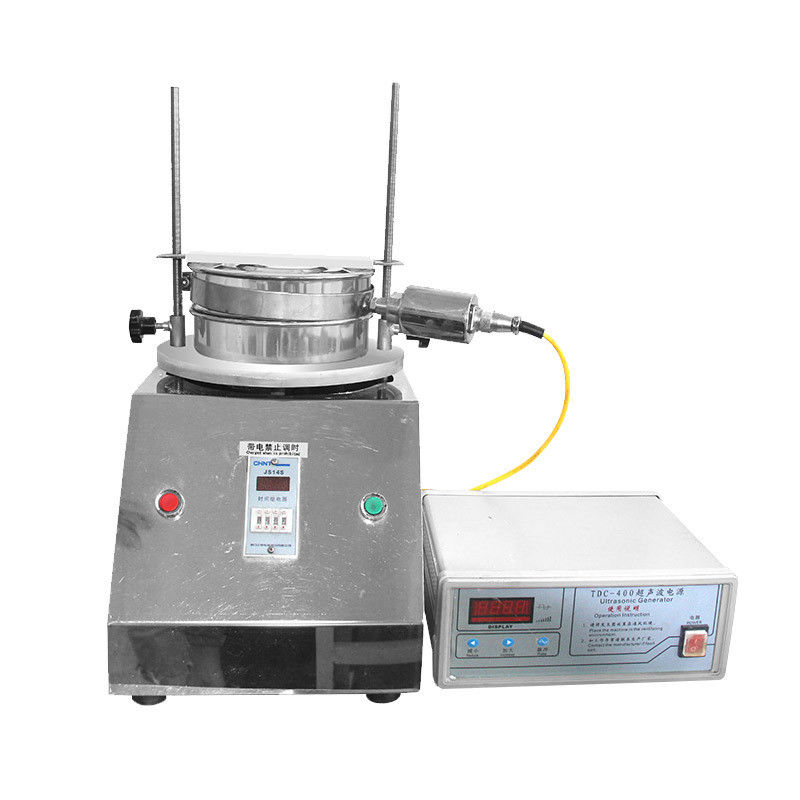

6, It can be combined with ultrasonic wave separation screen system, with automatic cleaning screen, improve screening efficiency and detection accuracy.
Product details
