| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | XZS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Sifting Machine Separator | Motor: | Work Continuously For 24 Hours |
|---|---|---|---|
| Diameter: | 560-1730mm | Screen Mesh: | 2~1000 |
| Layer: | 1~5 | Application: | Powder, Particles, Small Solids,slurry |
| High Light: | XZS Vibratory Sieve Separator,Fine Powder Sieve Separator Machine,560mm Vibrating Sifting Machine |
||
Product Introduction

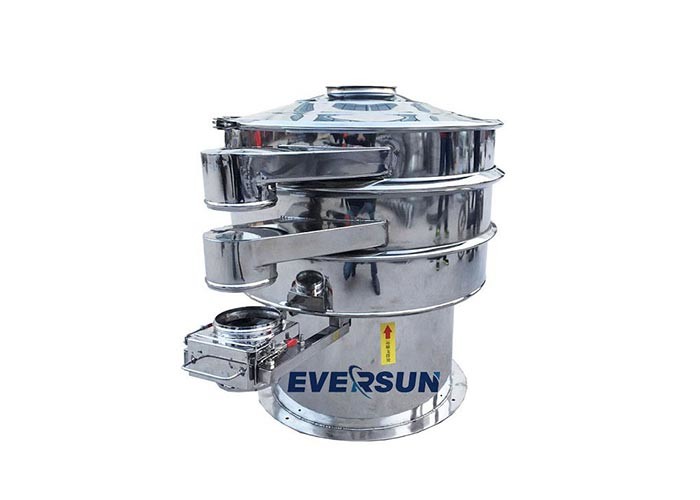

Customized XZS Vibrating Sieve Sifting Machine Separator For Fine Powder
Vibrating sieve sifting machine is a kind of high precision micro-powder screening machine, can separate dry materials into different particle size groups or solid separation from the liquid, the operator can set the speed of the material through the screen and the direction of motion on the net, whether it is wet or dry material, heavy or light, coarse or fine, vibrating sieve sifting machine can provide the corresponding processing capacity and screening efficiency.
Product selling point: multifunctional vibrating sieve, suitable for all kinds of particles, powder, mucus and other materials classification, filtration, miscellaneous, a multi-purpose machine.
Applicable industries: food industry, pharmaceutical industry, chemical industry, metal, metallurgy, mining, other industries, etc.
Applicable materials: flour, starch, soymilk, Chinese medicine powder; Paint, paint, resin particles; Kaolin, quartz sand; Copper powder, aluminum powder, alloy powder.
Technical Parameter
| Model | Power(kw) |
Effective screening diameter |
Dimension (1 layer) |
Dimension (2 layer) |
Dimension (3 layer) |
| XZS-400 | 0.18 | 360mm | 580*580*560 | 580*580*670 | 580*580*780 |
| XZS-600 | 0.25-0.55 | 560mm | 800*800*750 | 800*800*890 | 800*800*1030 |
| XZS-800 | 0.55-0.75 | 760mm | 900*900*750 | 900*900*890 | 900*900*1030 |
| XZS-1000 | 0.75-1.5 | 930mm | 1160*1160*810 | 1160*1160*950 | 1160*1160*1090 |
| XZS-1200 | 1.1-1.75 | 1130mm | 1360*1360*885 | 1360*1360*1050 | 1360*1360*1275 |
| XZS-1500 | 1.5-2.2 | 1430mm | 1850*1850*990 | 1850*1850*1185 | 1850*1850*1380 |
| XZS-1800 | 2.2-3.0 | 1730mm | 2200*2200*1050 | 2200*2200*1250 | 2200*2200*1450 |
Product feature
1, High efficiency, exquisite design durable, any powder, mucus can be screened, filter.
2, Mesh is not blocked, powder is not flying, screening fineness up to 500 mesh (28 microns), filtering fineness up to 5 microns.
3, Sieve use for a long time, easy to change the net, only 3-5 minutes, simple operation, convenient cleaning.
4, Small volume, light weight, easy to move, discharge port direction can be adjusted, coarse and fine material automatic discharge, automatic continuous operation or manual operation.
5, Sieving machine level can reach five layers, at the same time separated out of six levels of material, it is recommended to use three layers.
6, Unique grid structure (parent mesh separation) : the company designed and manufactured rotary vibrating screen mother mesh fully support the fine mesh (working mesh), so the fine mesh can obtain a long service life and reduce the use of fine mesh consumables, in the long production process can reduce the cost, and can quickly replace the fine mesh.
7, Super power: the company design and manufacture of Vibrating sieve sifting machine using general XZS series of new power vibrator, three-dimensional power outstanding, processing material output is high, fine precision.
8, Vibrating sieve sifting machinemaintenance is simple, can be single or multi-layer use, and easy assembly, one person can operate and use.
9, The machine is strong and durable, under normal circumstances, the screen machine can be used for 15-20 years.
