| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | ZD |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden |
| Delivery Time: | within 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Double Helix Conical Mixer | Volume: | 300L-30000L |
|---|---|---|---|
| Max Capacity: | 100-15000L | Material: | SUS304/316L,Carbon Steel |
| Mixing Time: | 15-60 Minutes | Advantage: | Obvious Energy-saving Effect |
| High Light: | Powder Double Helix Mixer,Granular Double Helix Mixer,SUS304 Double Cone Blender |
||

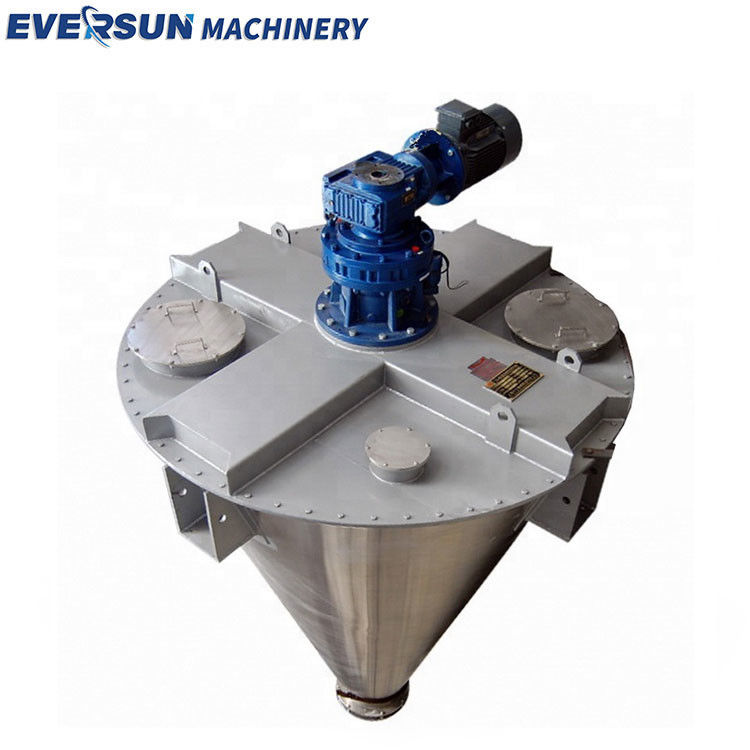

High Efficiency And High Precision Double Helix Cone Mixer For Powder Granular
Product Introduction
Double helix cone mixer is a new type of high efficiency and high precision mixing equipment. Using the principle of the combination of rotating motion and the rotating motion of two conical screws, the materials with different specific densities can achieve the appropriate mixing degree in the mixer. The mixing speed is fast and the effect is good. Widely used in pharmaceutical, food, chemical, pesticide, feed, petroleum, metallurgical mining, fertilizer, paint, pigments, dyes, additives, refractory, fine chemical, new materials, electronic plastics, ceramics, building materials and powder and other industries.
Product Parameter
| Specifications | Volume(m3) | ||||||||
| 0.01 | 0.05 | 0.1 | 0.15 | 0.2 | 0.3 | 0.5 | 3 | ||
|
Power
|
0.37 | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 7.5 | |
| Rotate speed | Autogiration | 159 | 130 | 130 | 183 | 108 | 118 | 118 | 51 |
| r/min | Revolution | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Loading coefficient | 0.4-0.6 | ||||||||
| Material diameter | 20-100 mesh | ||||||||
| Mixing uniformity | Relative deviation (10min)<=1.5 | ||||||||
| Net weight KG | 120 | 150 | 200 | 230 | 400 | 500 | 600 | 2100 | |
| Boundary dimension | Diameter | 420 | 550 | 670 | 780 | 865 | 936 | 1142 | 2210 |
| Total height | 900 | 1100 | 1440 | 1700 | 1650 | 1960 | 230 | 3740 | |
| Cylinder height | 450 | 660 | 820 | 930 | 950 | 1022 | 1355 | 2650 | |
| Center distance of support | 370 | 490 | 605 | 715 | 805 | 856 | 1065 | 2130 | |
| Support to cylinder face | 100 | 100 | 140 | 140 | 145 | 215 | 215 | 245 | |
| Feeding port size | 65 | 100 | 120 | 120 | 150 | 200 | 200 | 300 | |
| Discharging port size | 100 | 100 | 120 | 140 | 200 | 225 | 225 | 325 | |
| Number of supports - aperture | 4-12 | 4-12 | 4-14 | 4-14 | 4-20 | 4-20 | 4-20 | 4-23 | |
| More model can be customized | |||||||||
