| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Model Number: | W |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden |
| Delivery Time: | within 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Certification: | ISO,CE | Name: | Double Cone Blender |
|---|---|---|---|
| Volume: | 2L-6000L | Material: | Carbon Steel,SUS304 /316L |
| Voltage: | Customizable | Application: | Food, Chemical, Pharmacy, Mining.,etc |
| High Light: | Powder Pharmaceutical Mixer Machine,Pharmaceutical Powder Double Cone Blender,6000L Double Cone Blender |
||

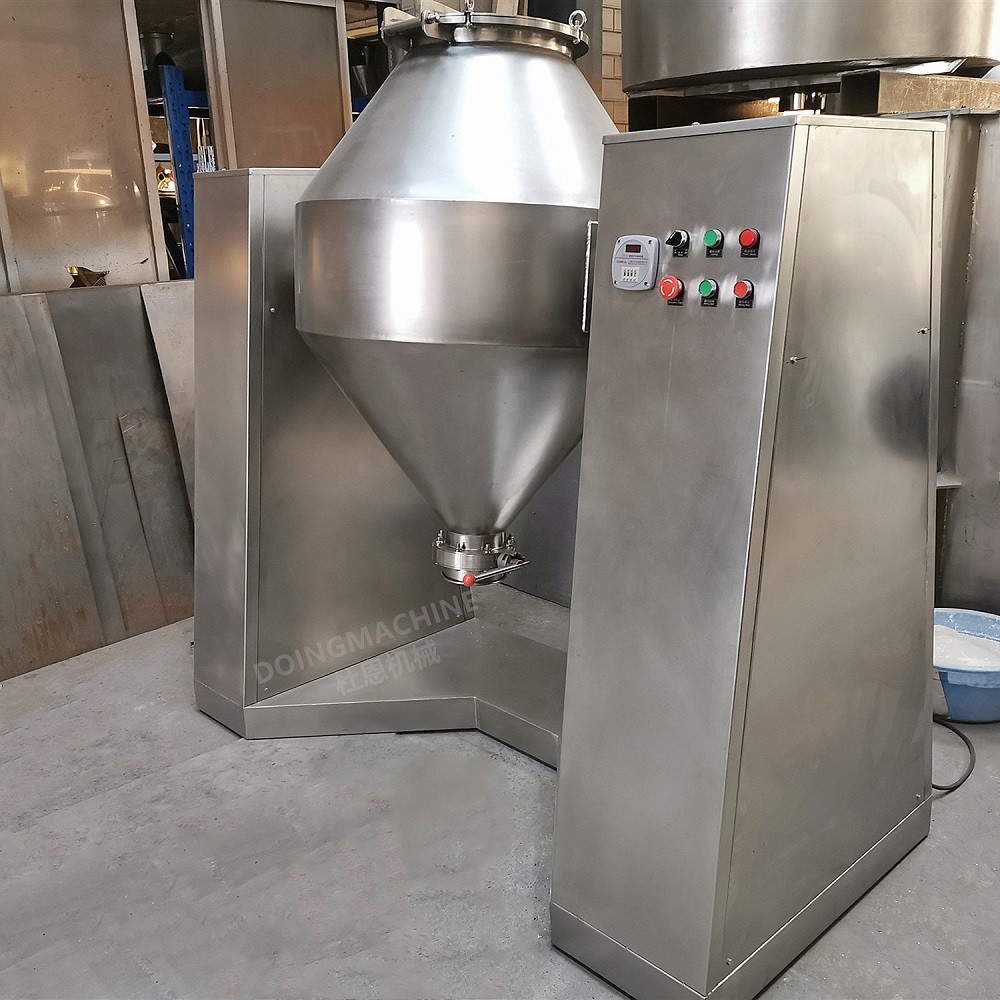

Powder Blender Pharmaceutical Mixer Machine Double Cone Blender For Powder Mixing
Product Introduction
Double cone blender is a new, high-efficiency, stirring type mixing machine,consist of stirring blade,double cone cylinder, reducer drive,mechanical seal, frame, etc. It is used for the mixing of granular and powder materials,the mixing degree is relatively high, the addition of a small amount of ingredients can also achieve good mixing degree.
The machine adopts mechanical seal, powder will not leak, bearing long service life. It can be widely used in chemical, mining,magnetic powder,feed ,ceramic and other industries.
Product Parameter
| Model | Motor power(KW) | Loading coefficient | Total volume(L) | Size | Weight(kg) |
| W-2 | 0.08 | 40%-60% | 2 | 500*200*300 | 40 |
| W-5 | 0.2 | 40%-60% | 5 | 650*250*450 | 60 |
| W-10 | 0.37 | 40%-60% | 10 | 800*300*600 | 100 |
| W-20 | 0.55 | 40%-60% | 20 | 980*400*850 | 180 |
| W-50 | 0.75 | 40%-60% | 50 | 1350*500*1100 | 380 |
| W-100 | 1.1 | 40%-60% | 100 | 1580*650*1350 | 550 |
| W-200 | 1.5 | 40%-60% | 200 | 1800*750*1650 | 680 |
| W-300 | 2.2 | 40%-60% | 300 | 2050*850*1850 | 800 |
| W-400 | 3 | 40%-60% | 400 | 2300*950*1850 | 1000 |
| W-500 | 3 | 40%-60% | 500 | 2400*1050*2100 | 1200 |
| W-800 | 4 | 40%-60% | 800 | 2500*1200*2300 | 1400 |
| W-1000 | 4 | 40%-60% | 1000 | 2800*1500*2500 | 1800 |
| W-2000 | 5.5 | 40%-60% | 2000 | 3400*1600*2700 | 2100 |
| W-3000 | 7.5 | 40%-60% | 3000 | 3500*1680*2900 | 2400 |
| W-4000 | 7.5 | 40%-60% | 4000 | 3600*1800*3100 | 2600 |
| W-5000 | 11 | 40%-60% | 5000 | 3900*1000*3300 | 2800 |
| W-6000 | 11 | 40%-60% | 6000 | 4100*2000*3500 | 3000 |
| Every part of the machine can be customized | |||||
Feature and Advantage
1. Simple structure
Motor serves as the power source of the machine, a sprocket drive the cylinder, and a triangle belt drive the stirring
blade ,so the structure of the machine is simple,the maintenance is convenient,and the transmission is reliable.
2. Large diameter discharge
The double cone inlet adopts the quick opening rotary valve, and the discharge outlet adopts the large diameter 90° rotary valve, therefore, it is very convenient to use.
3. Good sealing effect
The double cone supporting bearing of the machine adopts the dust isolation treatment of mechanical sealing,so it has a reliable sealing effect,and can be used for mixing liquid phase materials.
