Inclined Spiral / Screw Conveyor Powder Screw Feeder Flexible Mini

Basic Information
Place of Origin: China
Brand Name: EVERSUN MACHINERY
Certification: ISO,CE
Model Number: ESC
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard export wooden package
Delivery Time: within 7-15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Name: Inclined Spiral Conveyer Material: Stainless Steel304/316L
Type: Optional Color: Customized
Usage: Material Convey Feature: Spiral Screw Feeder
High Light:

Spiral Powder Screw Feeder

,

Flexible Spiral Screw Feeder

,

316L Inclined Powder Screw Conveyor


Product Description

Product introduction

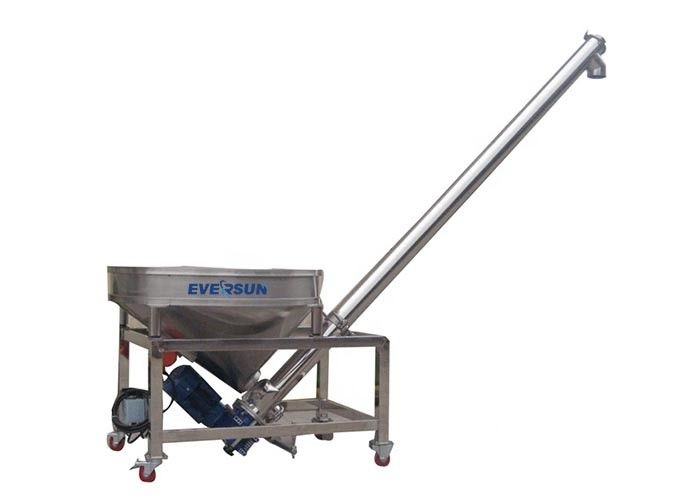

Flexible and mini inclined spiral conveyer or screw conveyor



Screw conveyor is a kind of use of motor drive screw rotation, promote the material to achieve the purpose of effective transport equipment. Can be used for horizontal, tilt or vertical transport. With the advantages of simple engineering structure, widely used in food, medicine, chemical, plastic and other industries. It is an effective conveying equipment, mainly used for all kinds of powder, granular, small block and loose materials conveying and vertical lifting.

Product parameter




Model Tube Diameter(mm) Hopper Volume(mm)

Angle

(degree)

Votage

Output

(m3/h)

Power

(kw)

ESC-114 114 200L or customized 30~60 Customized 3 1.5
ESC-141 141 200L or customized 30~60 Customized 5 1.5
ESC-159 159 200L or customized 30~60 Customized 7 2.2
ESC-219 219 200L or-customized 30~60 Customized 12 3
Machine can be customized based on your need





























Inclined Spiral / Screw Conveyor Powder Screw Feeder Flexible Mini 0

Product details


Screw conveyor is divided into different types of horizontal conveyor ,vertical conveyor and incline conveyor from the displacement direction of conveying materials.

Inclined Spiral / Screw Conveyor Powder Screw Feeder Flexible Mini 1

Inclined Spiral / Screw Conveyor Powder Screw Feeder Flexible Mini 2

 Our certificates


Inclined Spiral / Screw Conveyor Powder Screw Feeder Flexible Mini 3

How to choose the right machine



Our engineers will provide suitable machine model based on the use condition of clients, so please contact us with your specific requirements.
