500 Mesh Rotary Vibrating Screen Sieve Shaker Separator Machine

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Detail Information
Material: SS304 Mesh Size: 2-500mesh
Application: Food Processing,chemicals,and Other
High Light:

500 Mesh Vibrating Screen Sieve

,

Rotary Vibrating Screen Sieve Machine

,

SS304 Vibrating Separator Machine


Product Description

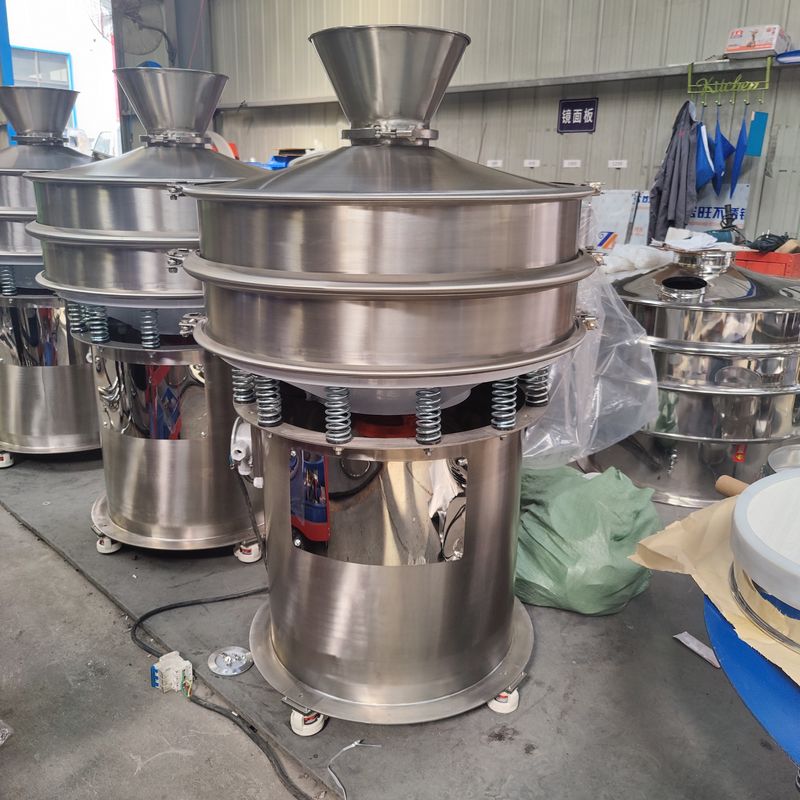

Main structure of rotary vibrating screen

1. Inlet and screen cover

2. Screen frame, screen, fastening belt and outlet

3. Vibration motor, motor base bracket and vibration transmission body

4. Vibration isolation spring, spring support and spring washer

5. Base and ventilation rear cover

500 Mesh Rotary Vibrating Screen Sieve Shaker Separator Machine 0

Specification



Model Power(kw) Mesh size Sieve effective diameter(mm) Layer(s) Dimension of machine(mm)
Length Width Height
YZS-400 0.18 2-500 355 1~5 580 580 560-760
YZS-600 0.55 2-500 555 800 800 680-880
YZS-800 0.75 2-500 755 900 900 780-1080
YZS-1000 1.1 2-500 925 1160 1160 880-1180
YZS-1200 1.75 2-500 1125 1360 1360 980-1360
YZS-1500 2.2 2-500 1425 1850 1850 1130-1550
YZS-1800 3 2-500 1725 2200 2200 1360-1680
YZS-2000 3.7 2-500 1910 2340 2340 1360-1680
