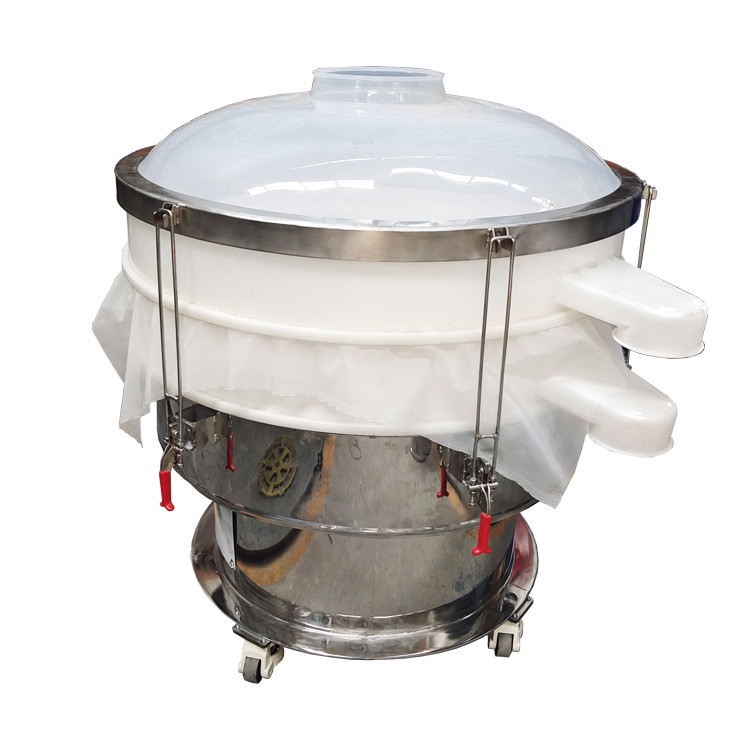

Plastic Pellet Vibrating Sieve Screen Anti Corrosion For Industrial Powder

Basic Information
Place of Origin: China
Brand Name: EVERSUN
Model Number: vibrating screen
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Detail Information
Product Name: Plastic Vibrating Screen Motor: Vertical Vibrating Motor
Usage: Separation Screening Function: Screening\separation\sorting\sieving
High Light:

Plastic Pellet Vibrating Sieve Screen

,

Industrial Powder Vibrating Sieve Screen

,

500 Mesh Powder Vibrating Screen


Product Description

Plastic vibrating screen is also called plastic anti-corrosion vibrating screen, polypropylene vibrating screen, PP vibrating screen and other different names within the scope of use, but its main purpose is to screen and filter materials with greater corrosivity. The plastic vibrating screen designed and developed by our company is specially designed to solve the problems of oxidation and corrosion of some special materials in contact with Q235 ordinary carbon steel and SUS304 stainless steel. PP plastic material is used in the contact part between plastic vibrating screen and materials, which is currently an effective solution to the screening, impurity removal and filtration of materials with oxidizing and corrosive steel materials, and ensures that the materials will not deteriorate in the screening process. Plastic anti-corrosion vibrating screen is an effective solution for screening, impurity removal and filtration of materials with oxidation and corrosion characteristics of steel materials.

Plastic Pellet Vibrating Sieve Screen Anti Corrosion For Industrial Powder 0

1.High efficiency, compact design and durability, any powder and mucilage are suitable.
2.Change sieve and clean easy, operate simply.
3.The mesh is not blocked and the powder is not flying, be screened to 500 mesh or 0.028mm.
4.Impurities coarse material discharged automatically and can continuous operation.
5.The unique grid design, sieve for a long time, changing sieve fast just need 3-5 minutes.
6.Small, space-saving, easy to move.
7.The screening machine can achieve the maximum five, we recommended to use three.

Plastic Pellet Vibrating Sieve Screen Anti Corrosion For Industrial Powder 1



Model
Power(kw)
Mesh size
Sieve effective diameter(mm)
Layer(s)
Dimension of machine(mm)
Length
Width
Height
YZS-400
0.18
2-500
355
1~5
580
580
560-760
YZS-600
0.55
2-500
555
800
800
680-880
YZS-800
0.75
2-500
755
900
900
780-1080
YZS-1000
1.1
2-500
925
1160
1160
880-1180
YZS-1200
1.75
2-500
1125
1360
1360
980-1360
YZS-1500
2.2
2-500
1425
1850
1850
1130-1550
YZS-1800
3
2-500
1725
2200
2200
1360-1680
YZS-2000
3.7
2-500
1910
2340
2340
1360-1680



Plastic Pellet Vibrating Sieve Screen Anti Corrosion For Industrial Powder 2
