Herb Powder Grinding Dried Turmeric Pulverizer 15MM Feeding

Basic Information
Place of Origin: CHINA
Brand Name: EVERSUN MACHINERY
Model Number: MG-15
Minimum Order Quantity: 1 set
Packaging Details: Standard export wooden package
Delivery Time: within 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000SETS/YEAR
Detail Information
Certification: ISO,CE Name: Pulverizer Grinder Machine
Feeding Size (mm):: 4-15MM Voltage: Can Be Customized
Material: SUS304 Or 316L, Stainless Steel Application: Food, Chemical, Pharmacy, Mining.,etc
Output Size (mesh):: 80 - 400 Mesh
High Light:

Herb Powder Dried Turmeric Pulverizer

,

Powder Grinding Dried Turmeric Pulverizer

,

15MM Feeding Dried Turmeric Pulverizer


Product Description

Herb powder grinding dried turmeric pulverizer machinery small masala grinder machine



Main Application

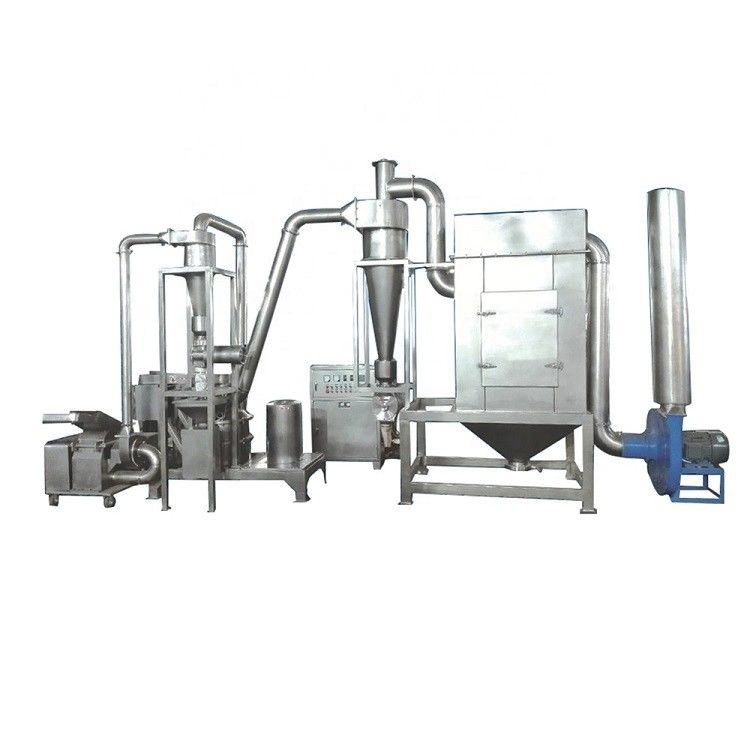

This machine is composed of three parts: main engine, auxiliary machine and electronic control box. It is compact in design, reasonable in structure, and has air-selected type, no screen and no net. The machine is equipped with grading mechanism, which can make the crushing and grading complete at one time.Negative pressure conveying makes the heat generated during crushing continuously discharged, so it is also suitable for the crushing of heat sensitive materials.

Working Principle

Material is cut and crushed by high-speed rotating blade through screw conveyor. Material is transported into cyclone separator by negative pressure air transportation, and material is discharged. Dust is filtered and recovered by vacuum box through bag or filter barrel. No dust is flying in the production process.




Herb Powder Grinding Dried Turmeric Pulverizer 15MM Feeding 0

Herb Powder Grinding Dried Turmeric Pulverizer 15MM Feeding 1



Product parameters


Model No. MG15 MG18 MG30 MG60
Capacity/h 10-200kg/h 20-450kg/h 60-1000kg/h 800-1500kg/h
Feeding mesh requirement less than 10mesh less than 12mesh less than 15mesh less than 18mesh
Final powder mesh 80-320mesh 80-450mesh
Total power 13.7kw 22kw 39kw 65kw
Rotation speed 4500r/min 4500r/min 3200r/min 3200r/min
Machine dimension

5400%1660

*2500mm

5500*1800

*3100mm

9000*2200

*4000mm

9000*2700

*5300mm

Remarks Final output depends on product type or hardness



Feature:



A.Easy installation

①Each connecting pipes are marked like A-A, B-B ...
②Flexible installation direction
③Provide 3D moive installation method
B.Without screen, the output size'll be changed by speed, can get 200-2500mesh. C.No powder flying during production because of the dust collector. It can effectively collect the fine powder in the air current and get 100% utilization, also meet the requirements for cleanness and environmental protection in waste gas discharge.
D. Suitable for most raw material which used in different industries.



1. Grinding chamber: Rotor & Stator

Stainless Steel/ Alloy Steel / High-speed Steel

We have different shapes Blades for different products. .

2.Classifier
Stainless Steel;

This is the device for separating the powder. The finished powder size is determined by its speed. The faster it rotates, the finer the powder is.

Speed controlled by VFD. .

3. Main Grinding Unit

Stainless Steel;

Including Hopper, Auger Feeder, Rotor & Stator, Classifier, motor, etc.




Herb Powder Grinding Dried Turmeric Pulverizer 15MM Feeding 2Herb Powder Grinding Dried Turmeric Pulverizer 15MM Feeding 3

Herb Powder Grinding Dried Turmeric Pulverizer 15MM Feeding 4

FAQ:



About Industrial spice pulverizer machine Chili powder grinding mill:

1.What capacity(kg/hr) do you need?

2.What powder particle size do you need?(for example,40 mesh,60 mesh,100 mesh,200 mesh,...etc)
