Home > Products> Pulverizer Grinder Machine> 400 Mesh Spice Grinding Pulverizer 200kg/H Spice Grinding Machine 4500r/Min

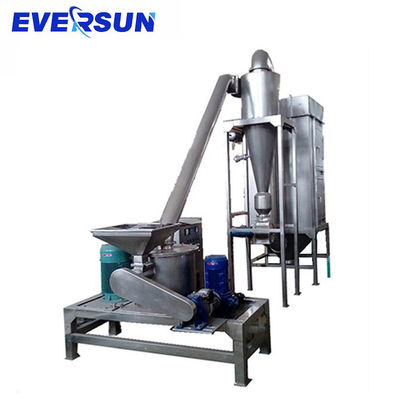

400 Mesh Spice Grinding Pulverizer 200kg/H Spice Grinding Machine 4500r/Min

Basic Information

Place of Origin:	CHINA
Brand Name:	EVERSUN MACHINERY
Certification:	ISO,CE
Model Number:	MG-15

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden package
Delivery Time:	within 15 work days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	5000SETS/YEAR

Get Best Price Contact Now

Detail Information

Name:	Pulverizer Grinder Machine	Feeding Size (mm)::	4-15MM
Voltage:	Can Be Customized	Material:	SUS304 Or 316L, Stainless Steel
Application:	Food, Chemical, Pharmacy, Mining.,etc	Certification:	ISO,CE
Output Size (mesh)::	80 - 400 Mesh
Highlight:	400 Mesh Spice Grinding Pulverizer , 200kg/H Spice Grinding Machine , Spice Grinding Machine 4500r/Min

Product Description

Micro spice grinding pulverizer spice grinding machine price

Product Description:

This pin mill is widely used in Food, chemical, pharmaceutical and other industries.
There are different models for different requirement.
Easy to operate,clean and maintenance.
Main Features
1. This grinding machine is widely used in food, chemical and pharmaceutical industry.
2. For normal material, it can grind into 80-320 mesh.
3. This machine has different models, capacity from 20-1000 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. The machine is equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.

Working Principle:

This machine is designed with the parts of main Unit, cyclone discharge, dust collector, control panel, etc.
Main Unit: including Feeding Hopper, Auger Feeder (speed controlled), Rotor (blades and disc), Stator (liner with serrated teeth), Classifier (driven by motor), Frame, etc.
Cyclone Discharge: including a Cyclone, Rotary Valve for discharge, Pipes, etc.
Dust Collector: Including Filter Pockets, Pockets Holders, Filter Case, Pockets Cleaning device, Pipe, Fan, etc.

400 Mesh Spice Grinding Pulverizer 200kg/H Spice Grinding Machine 4500r/Min 0

400 Mesh Spice Grinding Pulverizer 200kg/H Spice Grinding Machine 4500r/Min 1

Product parameters

Model No.	MG15	MG18	MG30	MG60
Capacity/h	10-200kg/h	20-450kg/h	60-1000kg/h	800-1500kg/h
Feeding mesh requirement	less than 10mesh	less than 12mesh	less than 15mesh	less than 18mesh
Final powder mesh	80-320mesh	80-450mesh
Total power	13.7kw	22kw	39kw	65kw
Rotation speed	4500r/min	4500r/min	3200r/min	3200r/min
Machine dimension	5400%1660 *2500mm	55001800 3100mm	90002200 4000mm	90002700 5300mm
Remarks	Final output depends on product type or hardness

1. Grinding chamber: Rotor & Stator

Stainless Steel/ Alloy Steel / High-speed Steel

We have different shapes Blades for different products. .

2.Classifier
Stainless Steel;

This is the device for separating the powder. The finished powder size is determined by its speed. The faster it rotates, the finer the powder is.

Speed controlled by VFD. .

3. Main Grinding Unit

Stainless Steel;

Including Hopper, Auger Feeder, Rotor & Stator, Classifier, motor, etc.

400 Mesh Spice Grinding Pulverizer 200kg/H Spice Grinding Machine 4500r/Min 2

400 Mesh Spice Grinding Pulverizer 200kg/H Spice Grinding Machine 4500r/Min 3

FAQ:

About Industrial spice pulverizer machine Chili powder grinding mill:

1.What capacity(kg/hr) do you need?

2.What powder particle size do you need?(for example,40 mesh,60 mesh,100 mesh,200 mesh,...etc)
