Jar Can Powder Filling Machine

Product description

The small powder filling machine is an automated filling equipment for fine powder materials, suitable for small-dose materials such as food additives and medicinal powders. It achieves high-precision filling through high-precision screw metering or negative pressure adsorption control, with an accuracy of within ±1%. It is equipped with a dust suppression device and a sealed channel, features touch screen parameter adjustment, and is compatible with various containers, significantly enhancing the production efficiency of small-batch powder products.

Working principle
The small powder filling machine stores the powder to be filled in the storage bin. After being started, it is driven by the power device to make the metering component work. The screw metering type pushes the quantitative powder to the discharge port by the rotation of the screw; the negative pressure adsorption type uses the pressure difference to suck the powder into the metering chamber. The powder is conveyed through the sealed channel to the container to be filled. Meanwhile, the equipment precisely controls the running time or stroke of the metering component through the sensor and the control system, ensuring that the filling error of each batch is within ±1%, completing the automated quantitative filling process.

Features & Benefits

1. Precise measurement: Utilizing screw metering or negative pressure adsorption technology, the filling accuracy can reach within ±1%, meeting the strict quantitative requirements for small-dose materials.
2. Anti-contamination and cleanliness: Equipped with a sealed filling channel and dust-proof device, it reduces material loss while ensuring a clean production environment, in line with hygiene standards in the food and pharmaceutical industries.
3. Flexible operation: Through a touch screen, parameters such as filling dose and speed can be intuitively adjusted, suitable for various container specifications including glass bottles, aluminum foil bags, and plastic bottles, with easy switching.
4. Efficient and stable: Automated operation replaces manual filling, reducing labor costs, and the power system operates smoothly, minimizing batch errors and enhancing the efficiency of small-batch production.
5. Compact structure: The body design is small, saving floor space in the workshop, suitable for use in small processing plants, laboratories, or integrated production lines.

Product parameter

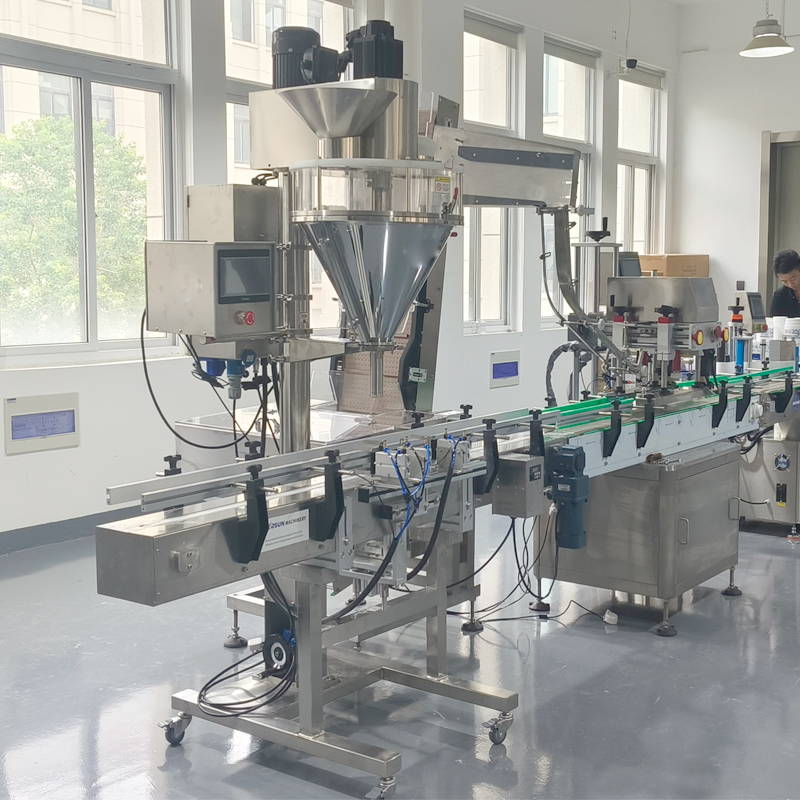

Production line diagram

1.Worker discharge the 5-50kg bag in the dust free bag dumping station, as there is a dust collector, so no dust fly
2.Vacuum conveyor transport the material into a mixer
3.After mixing, the mixed material will be conveyed into a packing machine by a screw feeder

Detail display

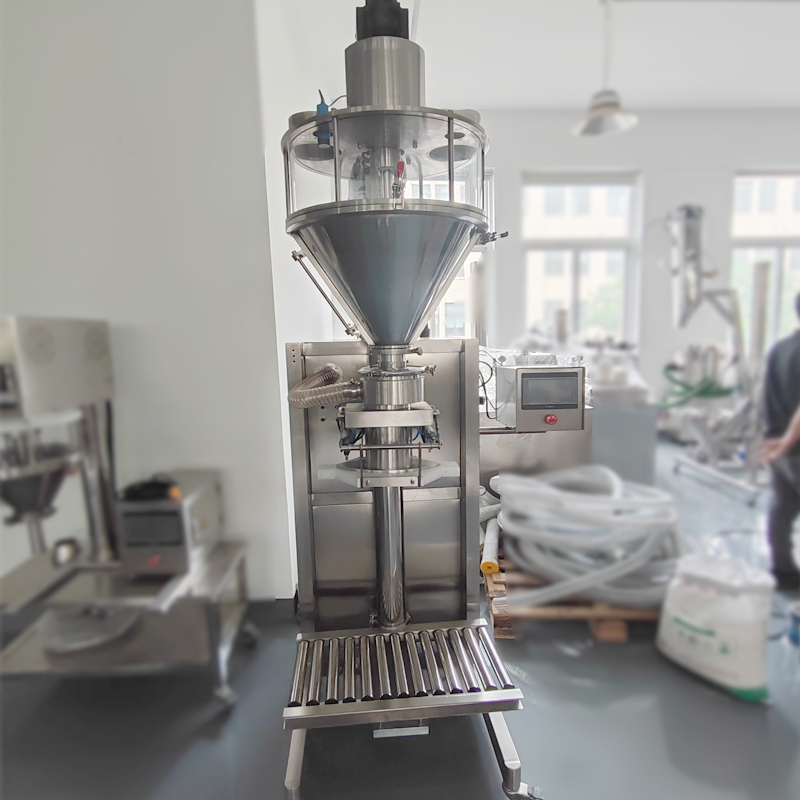

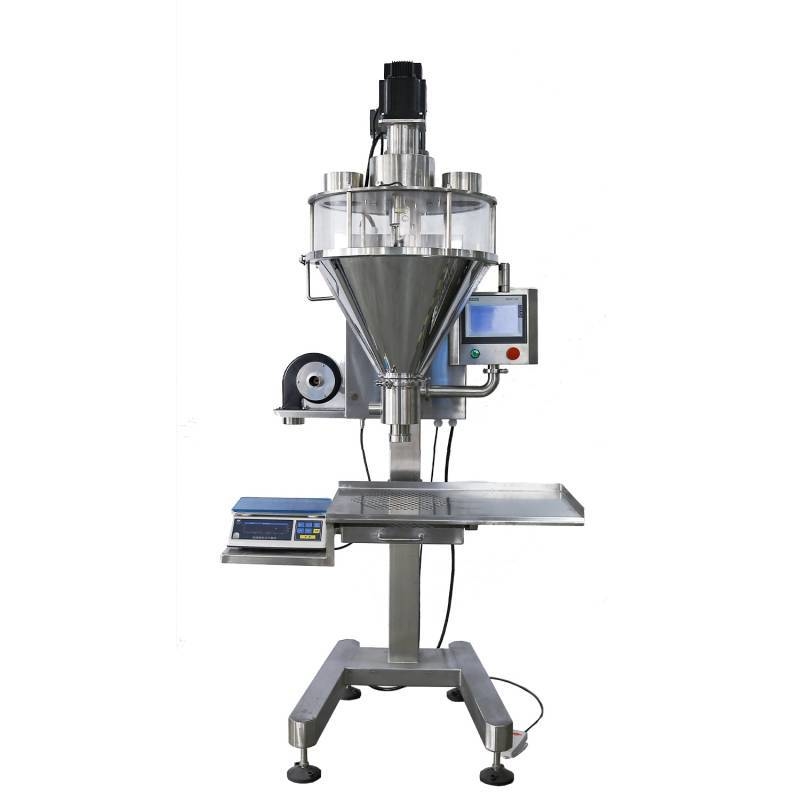

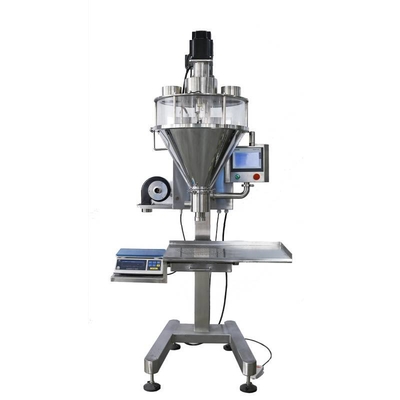

Product display
