| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | QVC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vacuum Suction Machine | Control System: | Control Box /PLC |
|---|---|---|---|
| Capacity: | 350-6000kg/h | Hopper Volume: | 1.1-60 L |
| Conveying Distance: | 0-20mm | Application: | Food Chemical Plastic,etc |
| High Light: | Particle Conveyor Vacuum Suction Machine,Food Vacuum Suction Machine,Plastic Powder Vacuum Suction Machine |
||

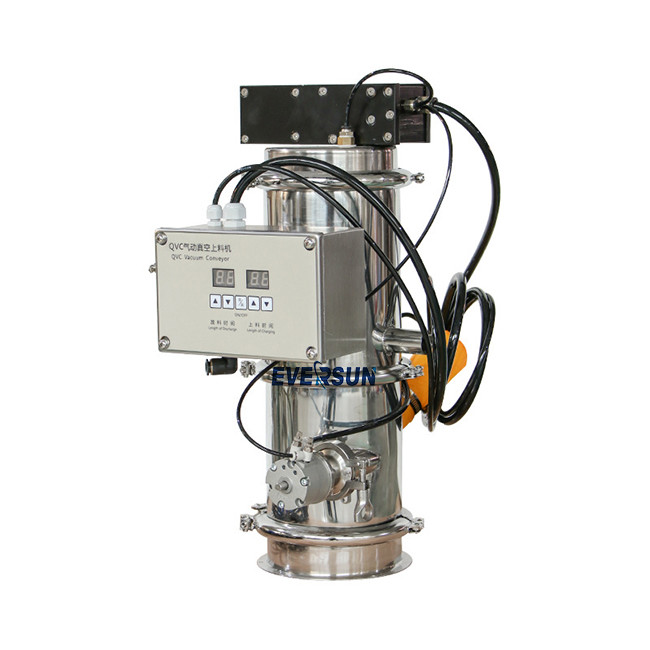

Pneumatic vacuum conveyor (vacuum loader) is a device that utilizes the principles of negative pressure and air flow to quickly and efficiently feed powder, granular or granular materials from external containers or storage bins into production equipment or processing lines. It sucks in materials through negative pressure and transports them to the target location through airflow, realizing an automated material supply process.
Pneumatic vacuum feeders are widely used in chemical, pharmaceutical, food, plastic and other industries. They have the advantages of accurate feeding, easy operation, high efficiency and rapidity, which improves production efficiency, reduces manual operations, and ensures the hygiene and stability of materials.
| Model | Delivery(kg/h) | Warehouse volume(L) | Operating pressure(Mpa) | Compressed air consumption(N/min) |
| QVC-1 | 50-300 | 1.1 | 0.4-0.6 | 180 |
| QVC-2 | 100-700 | 6.0 | 0.4-0.6 | 360 |
| QVC-3 | 300-1500 | 12.0 | 0.4-0.6 | 720 |
| QVC-4 | 600-3000 | 42 | 0.4-0.6 | 1440 |
| Machine can be customized according to your needs | ||||
Features and advantages of Pneumatic vacuum conveyor
1. High-precision feeding: By adjusting the air flow speed and pressure, the supply of materials can be accurately controlled to avoid excessive or insufficient situations.
2. Flexible layout and installation: The pneumatic vacuum loader can be flexibly laid out and installed according to the actual conditions on site. It can be installed vertically or horizontally.
3. Protect material quality: Since the material is basically loaded in a closed environment in the pneumatic vacuum feeder, it can effectively prevent the material from being polluted by the outside or getting damp.
4. Reduce material loss: There is almost no material leakage or scattering during the loading process of the pneumatic vacuum feeder, reducing material loss and waste.
We support customizing various types of vacuum feeders, such as electric vacuum conveyors, pneumatic vacuum conveyors, multi-outlet vacuum conveyors, 450 continuous vacuum feeders, etc., We can designed the machine according to your need
Pneumatic vacuum feeder machines are suitable for many industries, especially the following industries:
1. Chemical industry: chemical raw materials, additives, pigments, powder or granular chemicals, etc.
2. Pharmaceutical industry: medicinal powders, pharmaceuticals, medicinal materials, etc.
3. Food industry: flour, sugar powder, dairy powder, seasonings, cereals, etc.
4. Plastic industry: plastic particles, recycled materials, additives, etc.
5. Building materials industry: cement, limestone powder, sand and other building materials raw materials.
1. Packaging materials: Choose a sturdy and durable wooden box to protect the device from damage and vibration.
2. Fixing and protecting equipment: During the packaging process, ensure that the various components of the pneumatic vacuum loader are well fixed and protected to prevent movement or collision during transportation.
3. Label packaging: Mark the name, model, weight, size and other relevant information of the equipment on the packaging.
transportation:
4. Transportation method: Choose the appropriate transportation method according to the size, weight and destination of the equipment, such as land transportation, sea transportation, or air transportation.
