| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO, CE |
| Model Number: | ZKS |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sets/year |
| Application: | Food, Chemical, Pharmaceutical, Etc. | Service: | OEM/ODM Customized |
|---|---|---|---|
| Control: | PLC Control/Control Box | Warehouse Volume: | 8-280L Or Customizable |
| Power: | 1.5-11KW | Temperature: | Normal Temperature |
| Noise: | ≤65dB | Voltage: | 110V-480V |
| High Light: | Powder Vacuum Loader,High Precision Vacuum Transfer System,Portable Vacuum Loader |
||

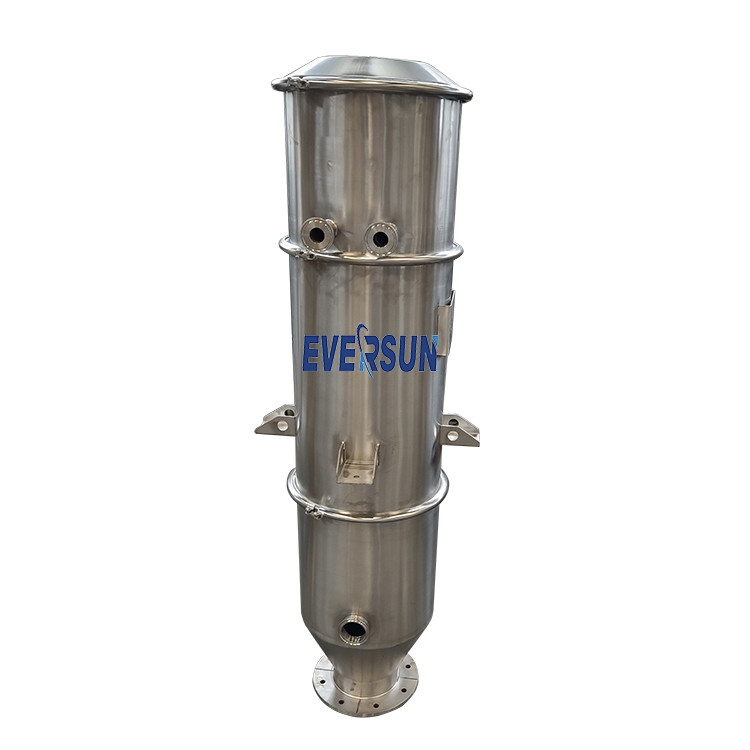

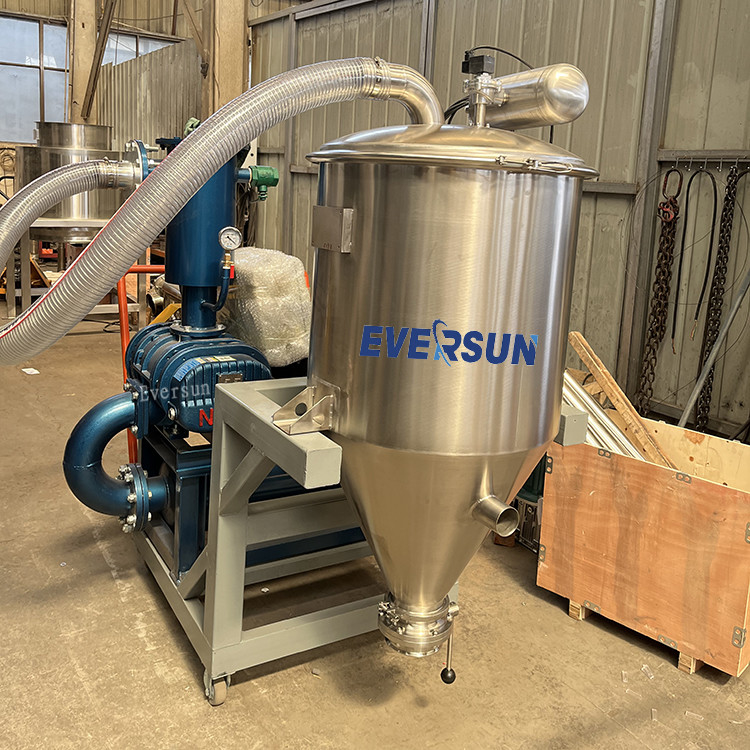

Vacuum Transfer System are air vacuum conveyors used for transferring or conveying materials and products from one place to another. It is a kind of automatic hopper loader, helping you to save labor cost and improve working efficiency. It is widely used in food, chemical, pharmaceutical, and other industries. It features low noise (≤65dB) and long lifespan (5-10 years) which makes it a reliable and cost-effective solution.
Vacuum Transfer System are the perfect solution for transferring and conveying materials with fast, safe and efficient speed. Its automatic hopper loader is ideal for any production line, and the vacuum transfer system ensures that no particles are lost in the process. It is the ideal option for bulk material handling, with its user-friendly design, easy installation and maintenance.
| Parameter | Detail |
|---|---|
| Operating pressure | 0.4-0.6MPa |
| Conveying distance | 2-20m |
| Power | 1.5-11KW |
| Material | Powder, Particle Transfer |
| Warranty | 1 Year |
| Noise | ≤65dB |
| Service | OEM/ODM Customized |
| Control | PLC Control/Control Box |
| Capacity | 200-6000kg/h |
| Application | Food, Chemical, Pharmaceutical, Etc. |
1. Dust-free and environmentally friendly: The Vacuum Transfer System effectively controls the dust problem of materials during the transportation process. The closed pipeline system and material separation device can effectively filter dust and impurities in the carried gas, keeping the working environment clean and safe.
2. Gentle handling: The Vacuum Transfer System uses the principle of negative pressure to transport materials without using mechanical force or friction. It can handle sensitive or fragile materials gently to avoid breakage or damage of the materials.
3. Long-distance transportation: The Vacuum Transfer System has a large transportation distance capability and can transport materials over long distances, including horizontal distances, vertical distances, and complex layouts.
4. Flexible layout: The pipelines of the Vacuum Transfer System can be flexibly arranged and installed according to actual needs to adapt to different sites and process requirements. They can bypass obstacles and pass through buildings or equipment to meet specific conveyor path needs.
5. Automation control: The Vacuum Transfer System can be integrated with the automation control system to realize the automated material transportation process. They can start, stop, adjust and monitor according to set parameters and procedures, improving production efficiency and operational convenience.
EVERSUN ZKS vacuum transfer systems are designed for material handling and production operations in many industries, such as pharmaceutical, food processing, chemical, and electronic manufacturing. Our vacuum transfer systems are ideal for conveying powder and particle transfer, The high quality construction and durable materials of our systems ensure a long-term lifespan of up to 10 years.
Our powder conveying systems are designed to be efficient and cost-effective, allowing for transferring powders, granules, and other particles with ease. The Vacuum Loaders also feature a modular design, allowing for easy integration into existing production lines. Our solutions are perfect for a variety of industries.
EVERSUN ZKS Vacuum Loader is the perfect solution for your material handling needs. With a wide range of features and reliable performance, our systems are sure to meet all of your requirements. Contact us today for more information about our vacuum conveyor systems.
We provide technical support and service for Vacuum Transfer System. Our team of highly experienced technicians are available to assist you with all questions and inquiries you might have regarding the operation and maintenance of your Vacuum Conveyor Systems. Our services include:
Our technical support and service is available 24 hours a day, 7 days a week. We are committed to providing the highest quality of service and support for all your Vacuum Transfer Systems. Contact us today to find out how we can help you.
Vacuum Transfer Systems are packaged in wooden crates or boxes to protect them from damage during shipping. Wooden crates and boxes must be of sufficient strength to withstand the weight of the conveyor system and any other items being shipped.
Crates must be properly labeled to indicate the contents, destination, and handling instructions. The labeling should also include a warning of the potential for injury from the moving parts of the conveyor system.
Shipping should be performed by a reputable company or carrier. The carrier must be able to provide tracking information and ensure that the conveyor system is delivered on time and in good condition.
A1: The brand of EVERSUN's Vacuum Transfer Systems is ZKS.
A2: EVERSUN Vacuum Transfer Systems is made in China.
A3: EVERSUN Vacuum Transfer Systems is made of stainless steel, aluminum and copper.
A4: The capacity of EVERSUN Vacuum Transfer Systems depends on the size of the material, but it can handle up to 500 kg/h.
A5: EVERSUN Vacuum Transfer Systems consumes about 5 kW of power.
