| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO, CE |
| Model Number: | HYZT |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden box |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Bucket Volume: | 1.8-10L Or Customized | Material: | Carbon Steel/ SS304/316 |
|---|---|---|---|
| Hopper: | Food Grade ABS Plastic/C.S/SS | Drive Type: | Chain Drive |
| Application: | Grain, Seeds, Food, Etc | Lifting Height: | 50m |
| Type: | Frequency Conversion Control Or Manual | Motor: | General Motor/ Explosion-proof Motor |
| High Light: | Z Type Hoist Chain Bucket Elevator,Frequency Conversion Control Chain Bucket Elevator,10L Z Type Elevator |
||

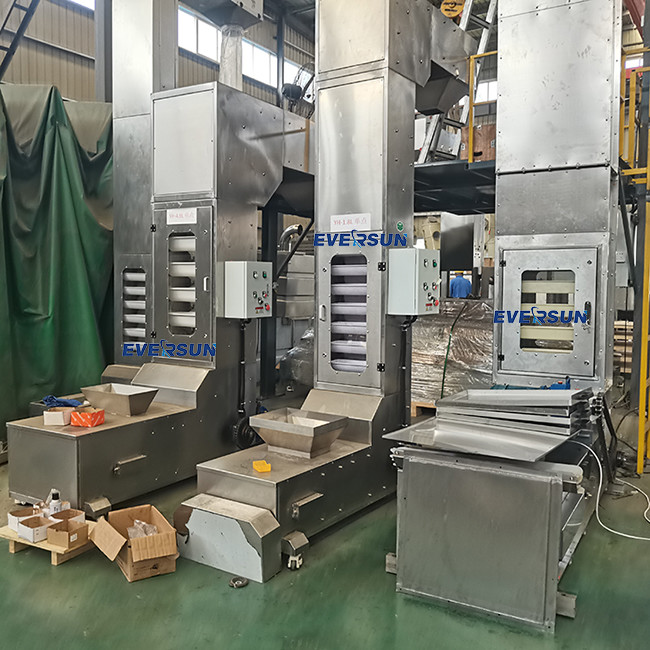

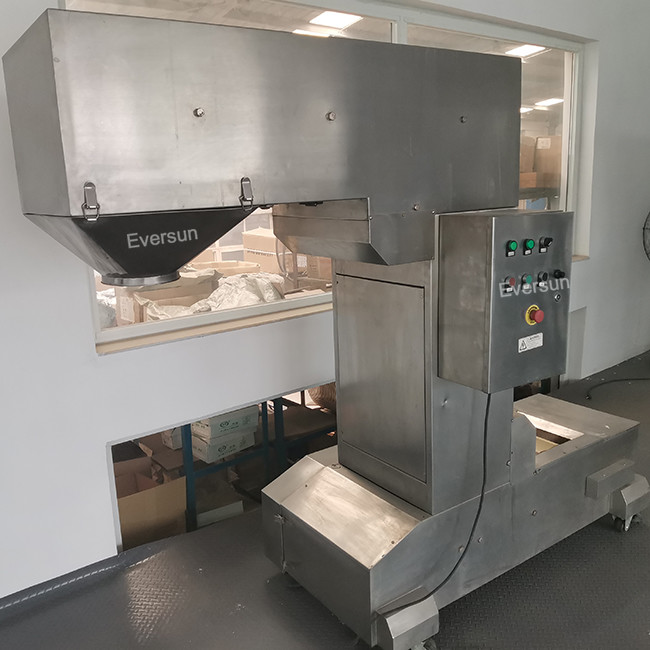

The Chain Bucket Elevator is a type of Z-bucket elevator designed for the vertical transportation of bulk materials. It is composed of a motor, hopper, chain and other components. The motor used can be General Motor or Explosion-proof Motor. The hopper can be made of Food Grade ABS Plastic, C.S or SS. The Z-bucket elevator has a capacity of 0-20m3/h and is powered by electricity with power ranging from 0.75-22KW. It can be controlled by frequency conversion or manually. With a robust and durable design, it is able to handle a wide range of materials for various industrial applications.
| Parameter | Value |
|---|---|
| Type | Frequency Conversion Control Or Manual |
| Bucket Volume | 1.8-10L Or Customized |
| Power | 0.75-22KW |
| Capacity | 0-20m3/h |
| Lifting Height | 50m |
| Material | Carbon Steel/ SS304/316 |
| Hopper | Food Grade ABS Plastic/C.S/SS |
| Application | Grain, Seeds, Food, Etc |
| Drive Type | Chain Drive |
| Motor | General Motor/ Explosion-proof Motor |
| Features | Customizable design Z-shaped conveyors, Food-grade Z-bucket elevator, Z-bucket elevator, Z-type bucket elevator, Chain bucket elevator |

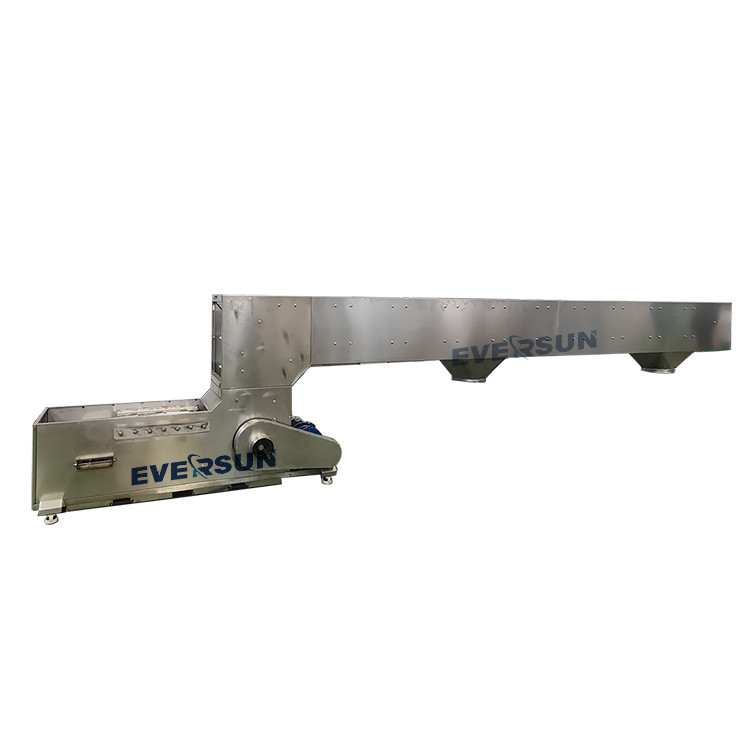

EVERSUN Chain Bucket Elevator is a customizable design with Z-shaped conveyors for different types of operations. It is driven by chain and has an automatic control system for frequency conversion or manual control. Z-type hoist is suitable for conveying powdery, granular and small block non-abrasive and small abrasive materials. For example, puffed food, feed, candy, dry and fresh fruit, PVC plastic particles, pet food, food processing, chemical medicine, hardware and electrical materials.
At EVERSUN, we are committed to providing superior technical support and service for our Chain Bucket Elevator. Our team of experienced professionals are available to help with any of your technical inquiries.
We offer a wide range of services to help you get the most out of your Chain Bucket Elevator. Our services include:
We also provide online resources and tools to help you get the most out of your Chain Bucket Elevator. Our resources include:
At EVERSUN, we are committed to providing you with the best technical support and service for your Chain Bucket Elevator. If you have any questions or need assistance, please contact us today.
