| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | DZSF |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Sand Vibrating Screen | Layer: | 1~6 Layer |
|---|---|---|---|
| Feed Size: | < 3（mm） | Capacity: | 5（t/h） |
| Motor: | Double Vibrating Machine | Sieve Mesh: | 1-500（mm） |
| High Light: | Linear Vibrating Screen 500mm,Stainless Steel 316L Sand Vibrating Screen,Sand Linear Vibrating Screen |
||
Product Introduction
Stainless Steel 304/316L Linear Vibrating Screen Sand Vibrating Screen
Linear Vibrating Screen has a completely closed structure, suitable for screening large amount of impurities, can automatically discharge materials, more suitable for 24 hours of assembly line operation. It is widely used in the screening of various powders and particles, Such as mechanical sand, natural sand, limestone, quartz sand, refractory, casting sand, bauxite, perlite, petroleum coke, broken tires, drying sand, silica gel particles, dry powder mortar, iron tailings, iron powder, coal mud, coal, gypsum powder, aluminum powder, pebbles, carbon, wood powder, construction waste, activated carbon, mixed mortar, chemical fertilizer, granite, river pebbles, kaolin, steel slag, marble Stone powder and other stone powder, mineral powder and granular materials.
Product Parameter
| Model | Layer | Screening Area(mm) |
Mesh size(mm) | Particle Size(mm) |
Capacity(t/h) | Power (kw) |
Double Amplitude(mm) |
| DZSF-612 | 1 to 5 | 600*1200 | 0.02-20 | ≤20 | ≤3 | 0.37×2 | 6 to 10 |
| DZSF-520 | 1 to 5 | 500*2000 | 0.02-20 | ≤20 | ≤5 | 0.37×2 | 6 to 10 |
| DZSF-525 | 1 to 5 | 500*2500 | 0.02-20 | ≤20 | ≤8 | 0.37×2 | 6 to 10 |
| DZSF-1020 | 1 to 5 | 1000*2000 | 0.02-20 | ≤20 | ≤12 | 0.75×2 | 6 to 10 |
| DZSF-1025 | 1 to 5 | 1000*2500 | 0.02-20 | ≤20 | ≤16 | 0.75×2 | 6 to 10 |
| DZSF-1030 | 1 to 5 | 1000*3000 | 0.02-20 | ≤20 | ≤20 | 1.1×2 | 6 to 10 |
| DZSF-1224 | 1 to 5 | 1200*2400 | 0.02-20 | ≤20 | ≤23 | 1.5×2 | 6 to 10 |
| DZSF-1525 | 1 to 5 | 1500*2500 | 0.02-20 | ≤20 | ≤28 | 1.5×2 | 6 to 10 |
| DZSF-1530 | 1 to 5 | 1500*3000 | 0.02-20 | ≤20 | ≤32 | 2.2×2 | 6 to 10 |
Product Feature
1. Multi-level control: The multi-layer screen produces several specifications of the screen material and the screen material, which are discharged from their respective outlets.
2. Green environmental protection: linear screen completely closed structure, dust does not overflow.
3. High output: low energy consumption, high output, simple structure, easy maintenance.
4. Unique loading structure: linear screen unique loading structure, no mixing, string material phenomenon.
5. Suitable for assembly line production: low energy consumption, high output, easy operation, easy cleaning, fully closed structure, automatic discharge, suitable for assembly line production.
6. Easy operation and maintenance: easy installation and commissioning, stable and reliable operation, easy operation and maintenance.
Scope of application
Suitable for the screening and classification of powder, granular materials, widely used in coal, hydropower, mining, building materials, chemical, plastics, abrasives, medicine, food, carbon, fertilizer and other industries.

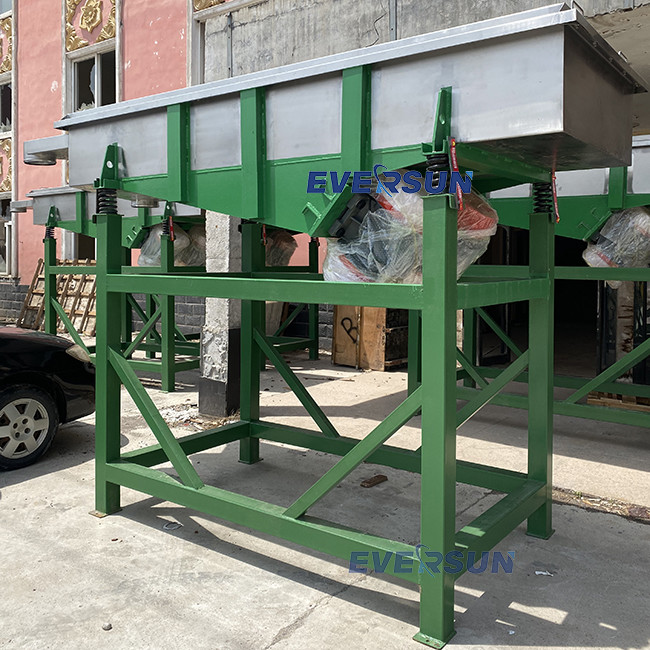

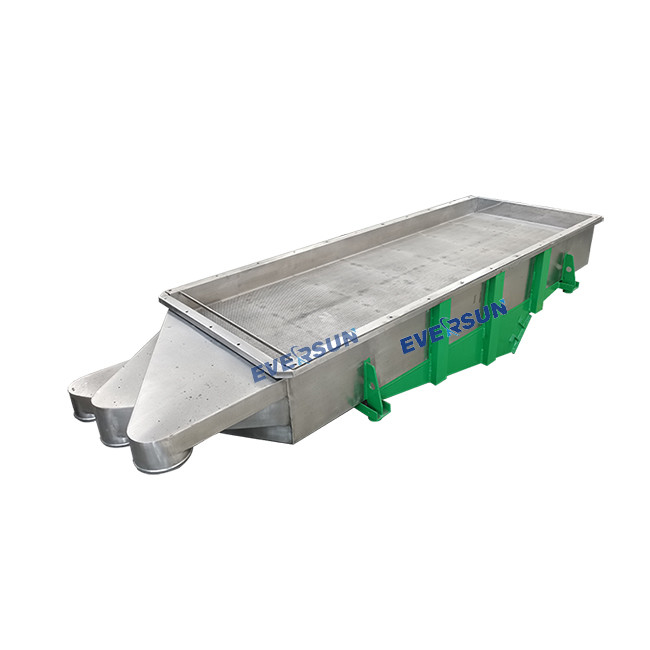

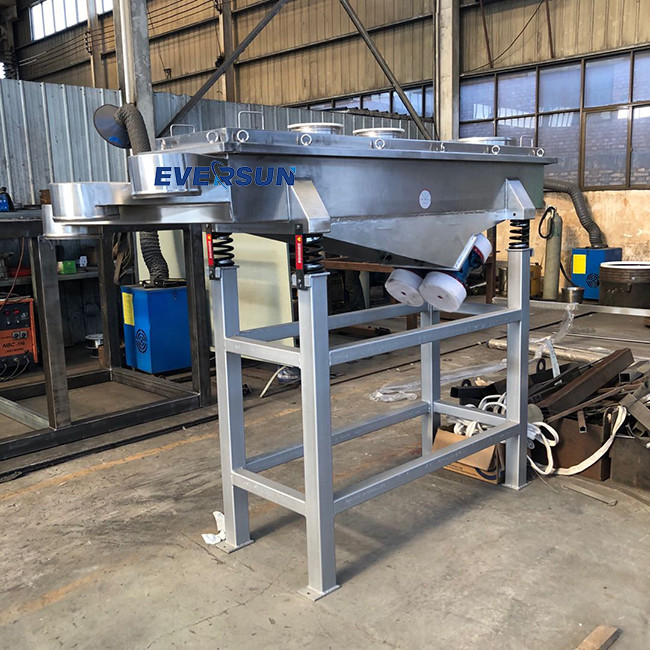

Product picture
