| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | ZS |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Linear Vibrating Sieve | Layer: | 1~5 Layer |
|---|---|---|---|
| Feed Size: | < 35mm | Amplitude: | 4mm |
| Capacity: | 5（t/h） | Box Plate Thickness: | 3-5mm |
| Sieve Mesh: | 0-190mesh | Screen Frame Material: | Wood Screen |
| High Light: | Ores Linear Vibrating Sieve Separator,3Layer Linear Vibrating Sieve Separator,Pills Linear Vibrating Sieve Separator |
||
Product Introduction
3 Layer Sifting Machine Linear Vibrating Sieve Separator For Pills Herbs Ores
The 3-layer linear vibrating sieve is a commonly used screening equipment used for screening and classifying granular materials. It consists of a screen box, a screen mesh, a vibration motor, etc. Through the excitation of the vibration motor, the material moves quickly in the screen box, thereby achieving screening of the material. Suitable for separation, filtration and classification of granular materials in various industries. It is widely used in mining, building materials, chemicals, food and other industries to improve production efficiency and product quality.
The screening accuracy of the linear screen can be ensured by selecting the appropriate screen aperture and appropriate material feed amount. In addition, timely cleaning of the screen and checking the wear of the screen can also help maintain screening accuracy.
Product Parameter
| Model | Sieve surface size | Layer | Mesh size(mm) | Number of vibrations | Capacity(t/h) | Power (kw) |
Double Amplitude(mm) |
| ZS520 | 500*2000 | 1-5 | 2-200 | 960 | 0.05-5 | 2×0.4 | 6-7 |
| ZS525 | 500*2000 | 1-5 | 2-200 | 960 | 0.06-8 | 2×0.4 | 5-7 |
| ZS1020 | 1000*2000 | 1-5 | 2-200 | 960 | 0.1220 | 2×0.75 | 6-8 |
| ZS1025 | 1000*2500 | 1-5 | 2-200 | 1450 | 0.1-15 | 2×0.4 | 5-7 |
| ZS1030 | 1000*3000 | 1-5 | 2-200 | 960 | 0.1-20 | 2×0.75 | 6-8 |
| ZS1224 | 1200*2400 | 1-5 | 0 | 960 | 0.1-23 | 2×0.75 | 6-8 |
Product Feature
1. Multi-layer screening: 3-layer linear vibrating sieve has three independent screen layers, and each screen layer is equipped with different specifications of screen mesh. By adjusting the screen specifications and vibration intensity of different layers, multi-level screening of materials can be achieved.
2. Efficient screening: The 3-layer linear vibrating sieve uses a vibrating motor as the vibration source to move materials quickly on the screen through vibration, thereby achieving efficient screening operations.
3. Automatic screen cleaning device: 3-layer linear vibrating sieve is usually equipped with an automatic screen cleaning device to ensure screening effect and continuous operation.
4. Easy maintenance: The structure of the 3-layer linear vibrating sieve is relatively simple and easy to maintain and clean. The screen box and screen are removable for easy replacement and cleaning.
Scope of application
3-layer linear vibrating sieve is widely used in many industries, including but not limited to the following fields:
1. Mining and metallurgical industry: used for screening and classifying materials such as ores, mineral sands and tailings
2. Building materials: used for screening and classifying granular materials such as sand, cement, concrete, etc.
3. Chemical industry: 3-layer linear screen is often used to screen and classify chemical raw materials, granular materials and powders.
4. Food processing: often used for screening food raw materials, such as flour, powdered sugar, cereals, etc.
5. Pharmaceutical industry: used for screening and grading medicinal materials, medicinal powders and preparations.
6. Powder coating: used for screening and classifying granular pigments, additives and other materials.

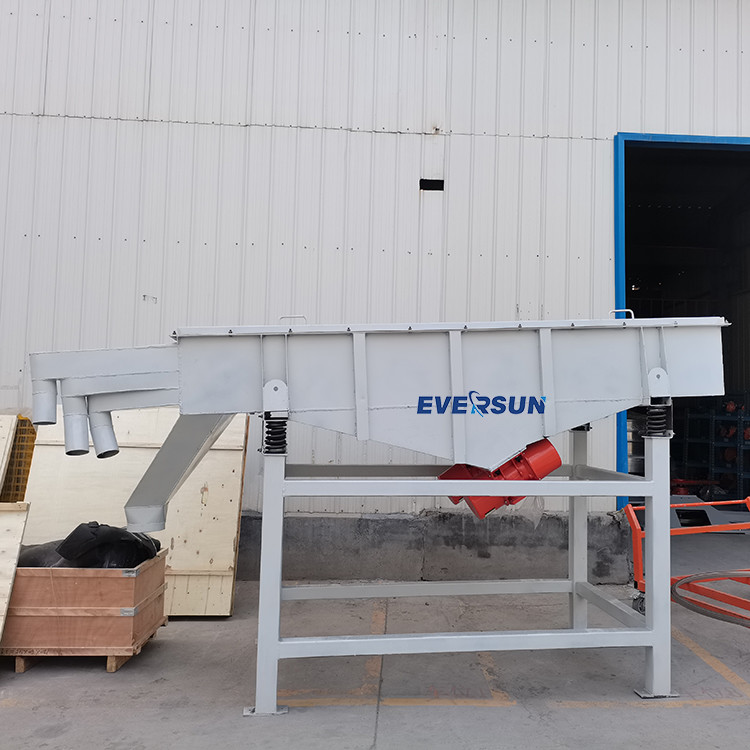

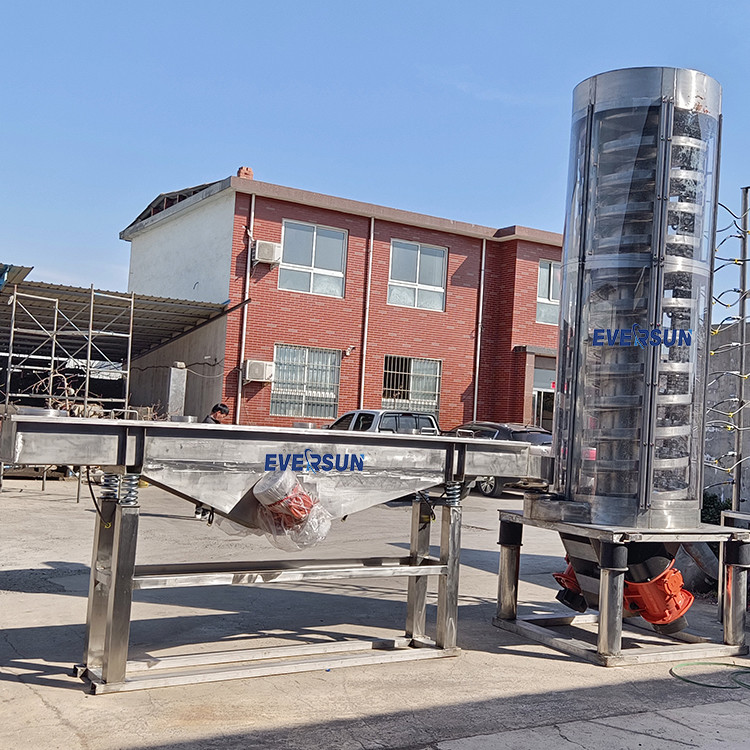

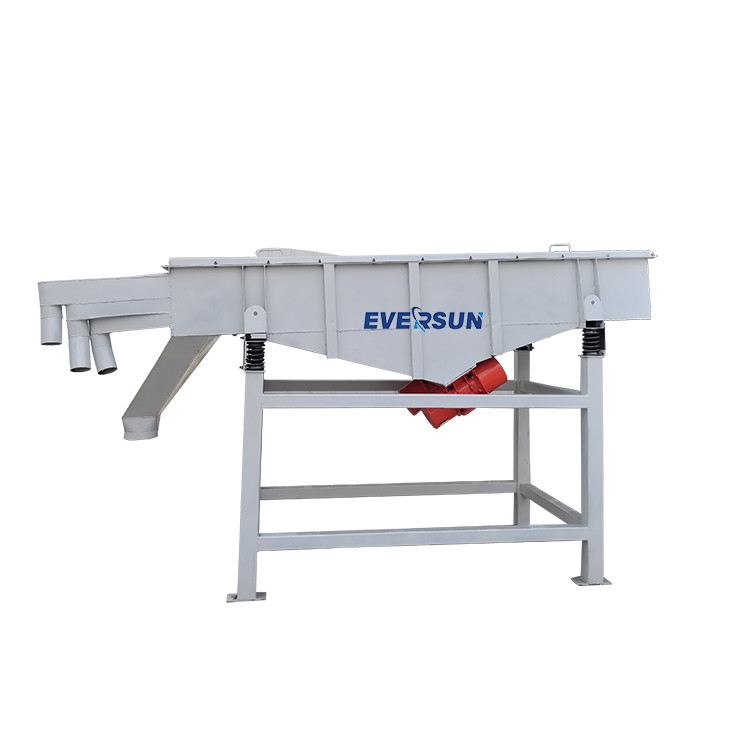

Product picture
FAQ
1. How to choose the mesh of 3-layer linear vibrating sieve?
The choice of screen mesh depends on the required screening particle size range and the characteristics of the material. Usually, the upper sieve mesh has a larger pore size and gradually becomes smaller toward the lower tier.
2. How to adjust the vibration parameters of the 3-layer linear vibrating sieve?
The adjustment of vibration parameters is usually achieved by adjusting the vibration intensity and vibration frequency of the vibration motor.
3. How to prevent screen clogging of 3-layer linear vibrating sieve?
3-layer linear vibrating sieves are usually equipped with automatic screen cleaning devices. These devices can automatically clear impurities and blockages from screens on a regular basis or as needed.
4. What aspects should be paid attention to in the maintenance of 3-layer linear vibrating sieve?
When maintaining a 3-layer linear vibrating sieve, the screen needs to be cleaned and replaced regularly to ensure the screening effect and the service life of the screen.
