| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | ESC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Auger Screw | Material: | Stainless Steel304/316L |
|---|---|---|---|
| Type: | LS/GX | Color: | Customized |
| Application: | Cement, Fly Ash, Lime, Food And Other | Angle: | 30° ~ 60° |
| High Light: | LS-Y Type Screw Conveyor Auger,304 Stainless Steel Screw Feeder Machine,Food Machinery Screw Conveyor Auger |
||
Product introduction

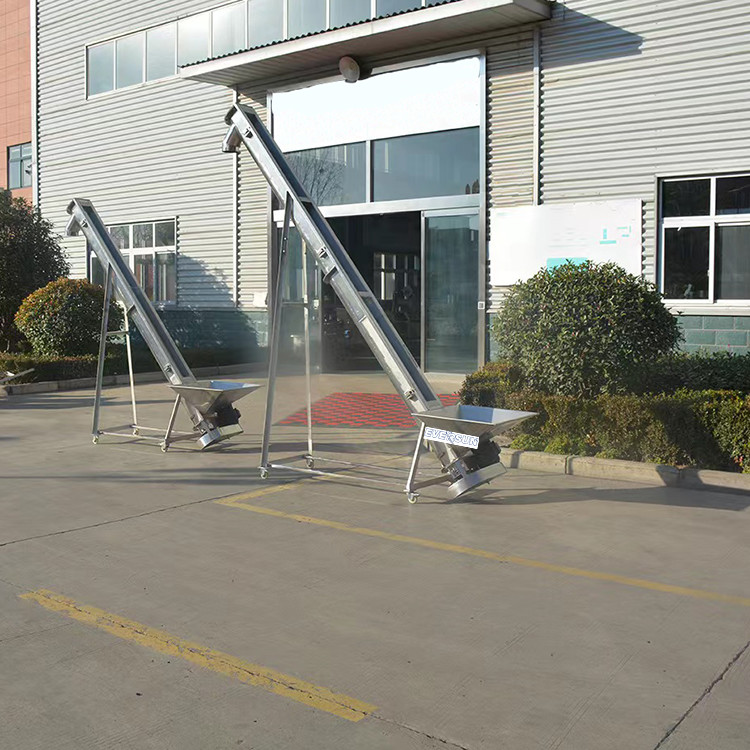

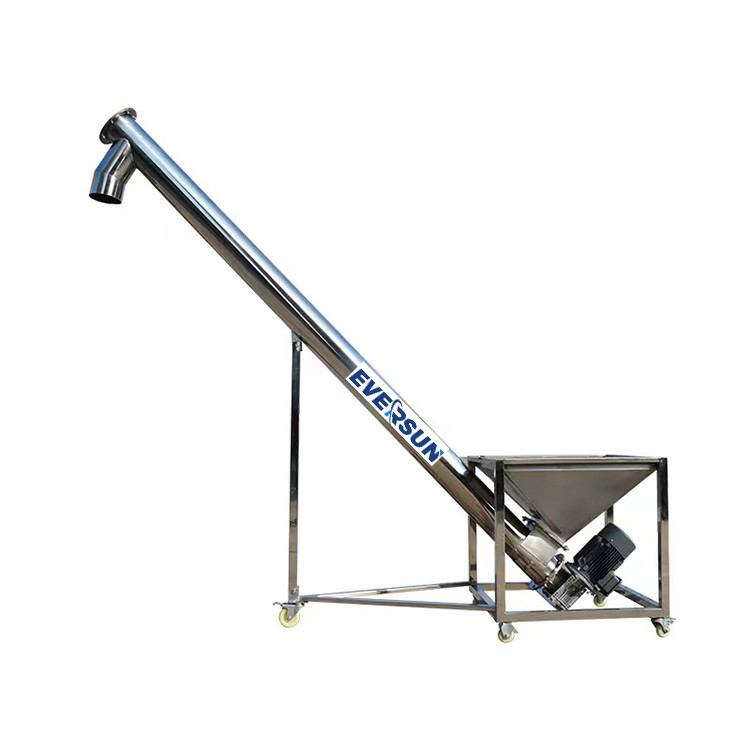

304 Stainless Steel LS-Y Type Screw Conveyor Auger Screw For Food Machinery
LS-Y type screw conveyor is the use of international standard products, equivalent to ISO1050-75 standards, is in accordance with JB/T7679-95 "screw conveyor" standard design and manufacturing, is the replacement of GX type screw conveyor products. LS-Y type screw conveyor is the use of rotating spiral will be transported along the material along the fixed housing and transport work. When the screw conveyor works, the material enters the trough by the feed port, and moves along the shell axially under the drive of the rotating spiral blade until the discharge port is discharged. Installation Angle is generally between 30° ~ 45°, if necessary, up to 60°.
Screw conveyor is widely used in various industries, such as building materials, chemical, electric power, metallurgy, coal, food and other industries, suitable for horizontal or inclined conveying powder, granular and small block materials, such as coal, ash, slag, cement, food, material temperature is less than 200℃. Screw conveyor is not suitable for conveying metamorphic, viscous, easy to caking material.
Product parameter
| LS models | 100 | 160 |
200 |
250 |
315 |
400 |
500 | 630 | 800 | 1000 | 1250 |
| Screw diameter(mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| Screw pitch(mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Rotate speed(r/min) | 140 | 120 | 90 | 90 | 75 | 75 | 60 | 60 | 45 | 35 | 30 |
| Delivery value Q φ=0.33 m3/h | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 | 458 |
| Power Pd 1=10m kw | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 5.1 | 8.6 | 12 | 16 | 24.4 |
| Power Pd 1=30m kw | 1.6 | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 | 73.3 |
| Machine can be customized based on your need | |||||||||||
Working principle
Screw conveyor is welded in a cylindrical shell with continuous spiral blades, and the shell rotates with spiral blades. Add the material due to the role of centrifugal force and friction with the housing rotation and is lifted, in the material under the action of gravity and along the spiral surface slide, so that the material with the spiral tube rotation together to achieve the forward movement of the material, as the screw along the rotation of the nut translation movement, to achieve the purpose of conveying materials.
Application
Screw conveyor according to the transmission form is divided into shaft screw conveyor and shaftless screw conveyor. According to the appearance, it is divided into U-shaped screw conveyor and tubular screw conveyor. Axial flow screw conveyor is suitable for cement, fly ash, lime, food and other non-viscous powder materials and small particle materials; Shaftless screw conveyor is suitable for conveying viscous, easily wound materials (such as sludge, biomass,), fibers, etc.
How to choose the right machine
Our engineers will provide suitable machine model based on the use condition of clients, so please contact us with your specific requirements.
