| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | CWC |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Vertical Spiral Elevator | Explosion-proof Form: | Explosion-proof Motor |
|---|---|---|---|
| Applied Material: | Powder, Granular And Bulk Solids | Discharge Particle Size: | 10mm |
| Optional Function: | Cooling, Drying, Screening | Structure Type: | Convey Vertically Upwards |
| Feeding Port Size: | 50mm | Lifting Speed: | 0.12（m/min） |
| High Light: | CWC Series Vertical Spiral Vibration Elevator,Acrylic Cover Vertical Spiral Vibration Elevator,Loading Vertical Spiral Vibration Elevator |
||
Product introduction

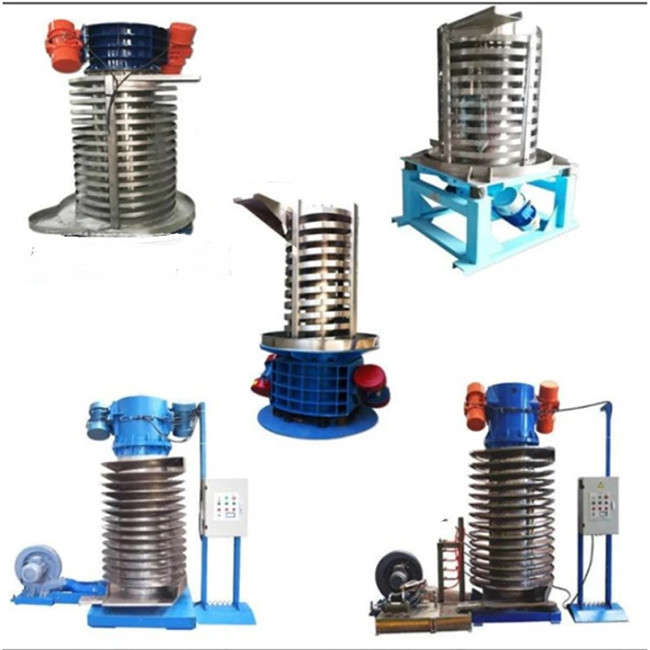

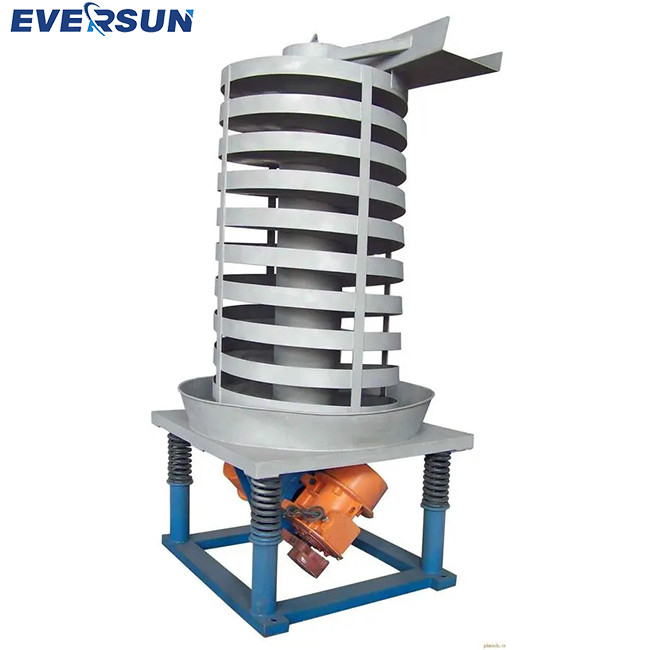

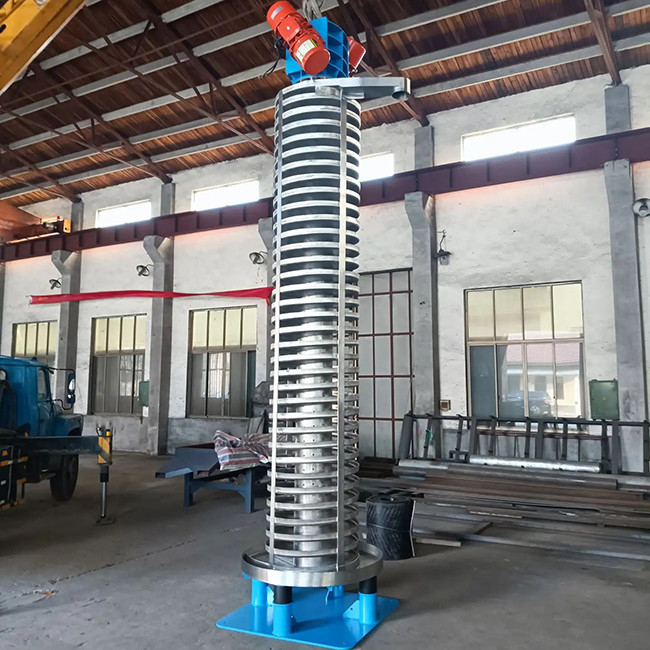

CWC Series Vertical Spiral Vibration Elevator Acrylic Cover Loading Machine
The acrylic cover vertical spiral vibration elevator is a special type of vertical spiral elevator, which is characterized by a vibration function and is equipped with an acrylic cover for protection. It is typically used in applications that require vibration handling or protection of materials.
The basic structure of the acrylic cover vertical spiral vibration elevator is similar to that of an ordinary vertical spiral elevator, consisting of a vertical pipe or tank and an internally installed spiral agitator. However, it also comes with a clear acrylic cover that completely encloses the area where the spiral agitator and material are located.
Acrylic cover vertical spiral vibration elevators are widely used in industries that require vibration processing and protection of materials, such as food processing, chemical industry, pharmaceuticals, powder processing, etc. It can be used to convey and lift powder, granular or crystalline materials, and promotes uniform flow and handling of materials through vibration.
Product parameter
The following parameters are for reference only. We support customized different specifications of the elevator, to meet your specific use needs.
| Model | Diameter of spiral | Lifting height(m) | Speed (r/min) | Double amplitude (mm) | Power(kw) |
| CWC30 | 300 | ≤4.0 | 960 | 6-8 | 2*0.4 |
| CWC500 | 500 | ≤6.0 | 960 | 6-8 | 2*0.75 |
| CWC600 | 600 | ≤8.0 | 960 | 6-8 | 2*1.5 |
| CWC800 | 800 | ≤8.0 | 960 | 6-8 | 2*2.2 |
| CWC900 | 900 | ≤8.0 | 960 | 6-8 | 2*3.0 |
| CWC1200 | 1200 | ≤8.0 | 960 | 6-8 | 2*4.5 |
| CWC1500 | 1500 | ≤8.0 | 960 | 6-8 | 2*5.5 |
| CWC1800 | 1800 | ≤8.0 | 960 | 6-8 | 2*6.5 |
| Customized model is available | |||||
Features
The main features of acrylic cover vertical spiral vibration elevator
The acrylic cover vertical spiral vibration elevator has the following characteristics:
1. Vibration function: The vibration mechanism gives the material a certain vibration force, which can promote the fluidity of the material, reduce accumulation and adhesion, and improve the transportation efficiency.
2. Material protection and environmental enclosure: Acrylic covers provide protection and enclosure for materials and the working environment. It can effectively prevent external dust, impurities and other substances from entering the pipe or tank and maintain the purity of the material.
3. Transparency: The acrylic cover is made of transparent material, allowing operators to clearly observe the flow and processing of materials, monitor possible problems or abnormalities, and facilitate operation and maintenance.
4. Customized design: The acrylic cover vertical spiral vibration elevator can be customized according to the specific needs of customers. Vibration intensity, vibration frequency, acrylic cover size, etc. can be customized
5. High efficiency and energy saving: Promoting material flow through vibration can reduce frictional resistance during transportation, improve transportation efficiency, and reduce energy consumption.
Application
The application of acrylic cover vertical spiral vibration elevator
Acrylic cover vertical spiral vibration elevators are widely used in many fields and industries. The following are some common application areas:
1. Food processing: used to transport and lift powdered, granular or crystallized food raw materials, such as flour, powdered sugar, cereals, puffed foods, etc.
2. Chemical and pharmaceutical industry: often used to transport and lift powder, granular or crystalline chemical raw materials or pharmaceuticals. Vibration can promote the uniform flow of materials and avoid clumping and sticking.
3. Powder handling: used to transport and lift various powder materials, such as cement, ore, limestone, quartz powder, etc. Vibration can improve the fluidity of materials and reduce pile-ups and bridges.
4. Mining and metallurgy: often used to transport and lift materials such as ore, ore powder, slag and so on.
Packing and shipping
1. Packaging:
Before shipping, the vertical spiral elevator is packed in wooden boxes to protect the equipment itself from damage. This may include wrapping the device with appropriate packaging materials (such as foam board, bubble wrap, etc.).
2. Transportation methods:
Vertical spiral elevators can be transported by different transportation methods, including land, sea or air transportation. The specific choice will depend on the size and weight of the equipment as well as the transportation distance and destination requirements.
FAQ
Q1: What is the difference between the acrylic cover vertical spiral vibration elevator and the ordinary vertical spiral elevator?
A: The main difference is the vibration function and acrylic cover protection.
Q2: What is the function of acrylic cover?
A: The acrylic cover mainly plays the role of protection and sealing. It can prevent external dust, impurities and other substances from entering the pipe or tank. At the same time, the acrylic cover can also prevent materials from splashing and scattering.
Q3: Which industries are the acrylic cover vertical spiral vibration elevator suitable for?
A: Acrylic cover vertical spiral vibration elevator is suitable for food processing, chemical industry, pharmaceutical, powder processing, mining, metallurgy, etc. It can be used to convey and lift powder, granular or crystalline materials.
Q4: Can the acrylic cover vertical spiral vibration elevator be customized according to specific needs?
A: Yes, the acrylic cover vertical spiral vibration elevator can be customized and designed according to the specific needs of customers.
