| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | EXZS-600 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden package |
| Delivery Time: | within 15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000SETS/YEAR |
| Name: | Rotary Vibrating Screen | Screen Mesh Number: | 2-500mesh |
|---|---|---|---|
| Usage: | Sieve, Filter, Classify | Diameter: | 200-2600mm |
| Feed Particle Size: | 1mm-11mm | Sieve Hole Size: | 3mm |
| High Light: | Chemical Screener Rotary Vibrating Screen,Food Equipment Rotary Vibrating Screen,EXZS Series Rotary Vibrating Screen |
||

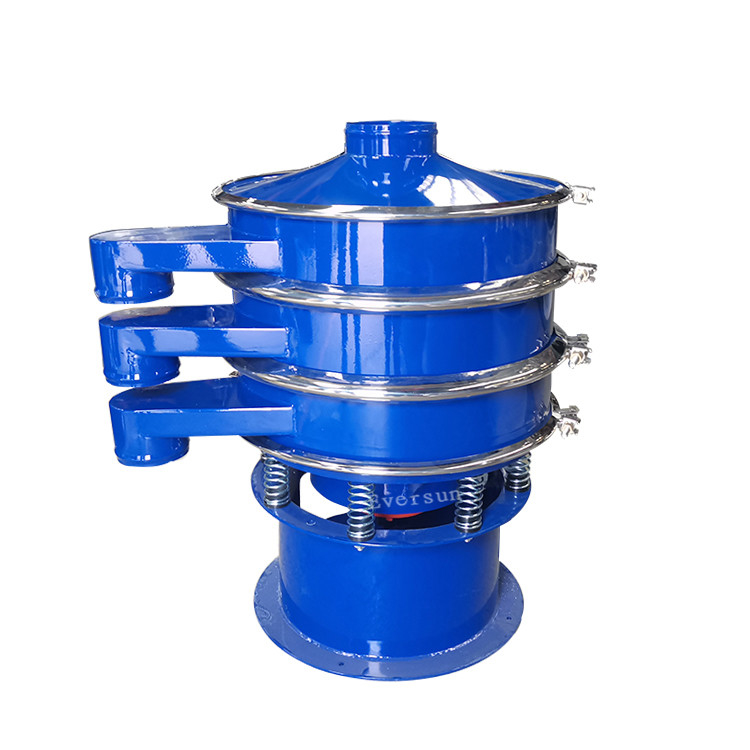

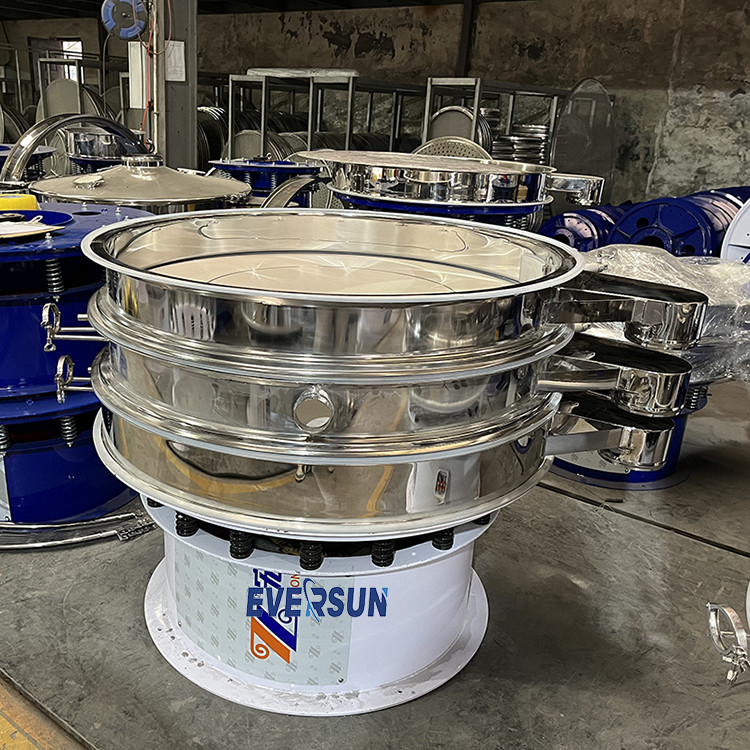

The EXZS series rotary vibrating screen is a high-precision screening and filtering machine designed on the basis of the S49 series rotary vibrating screen, absorbing advanced domestic and foreign technologies and adopting advanced processing technology. It is based on a vertical vibration motor or a special vibrator. Vibration source, vertical vibration motor (or exciter) is equipped with eccentric weights on the upper and lower ends, which can produce horizontal, vertical, and tilted three-dimensional movements.
By adjusting the phase angle of the upper and lower eccentric weights, the material on the screen surface is changed. Movement trajectory to achieve the purpose of screening various materials.
| Model | Equipment diameter | Power(KW) | Deck | Effective screening area(m2) | Screen mesh |
| EXZS-600 | 600mm/24inch | 0.25 | 1-5 | 0.2289 | 20 microns to 20 mm |
| EXZS-800 | 800mm/32inch | 0.55 | 0.4183 | ||
| EXZS-1000 | 1000mm/40inch | 0.75 | 0.6359 | ||
| EXZS-1200 | 1200mm/48inch | 1.1 | 0.9499 | ||
| EXZS-1500 | 1500mm/60inch | 1.5 | 1.5386 | ||
| EXZS-1800 | 1800mm/70inch | 3 | 1-4 | 2.2687 | |
| EXZS-2000 | 2000mm/78inch | 4.5 | 2.8893 |
Features & Advantages
The rotary vibrating screen has the following features and advantages:
1. Efficient screening: The rotary vibrating screen adopts rotational vibration mode and can achieve efficient screening effects by adjusting vibration parameters (such as vibration frequency and amplitude). It can quickly and accurately divide materials into different granularity levels, improving production efficiency.
2. Large processing capacity: The rotary vibrating screen has a large screening area and can handle a large amount of materials. It can complete the screening of large quantities of materials in a relatively short period of time and is suitable for high-volume production lines.
3. Multi-layer screening: Rotary vibrating screens usually have a multi-layer screen structure and can screen materials in multiple stages at the same time. By adjusting the screen apertures at different levels, the separation of coarse and fine particle sizes can be achieved, improving the screening effect and product quality.
4. Reliable and stable: The rotary vibrating screen is made of solid structural design and high-quality materials, with good mechanical strength and durability. It can operate stably and withstand large vibration forces and loads.
(Materials below are just parts of our material list, for complete list, please consult us)
1. Ore and ore: iron ore, copper ore, gold ore, zinc ore, etc.
2. Coal: screening, dust removal and classification of coal
3. Building materials: sand, gravel, mortar, cement, concrete, etc.
4. Chemical raw materials: granular plastics, rubber, fertilizers, pigments, pharmaceutical raw materials, etc.
5. Food processing: screening and grading of food raw materials and finished products. For example, screening of food raw materials such as grains, flour, powdered sugar, and cocoa powder.
6. Pharmaceutical Industry: Screening and grading of powders, granules and pharmaceutical raw materials in the pharmaceutical industry.
1.Packaging: When packaging the rotary vibrating screen, you need to pay attention to the following points:
(1) Cleaning: Before packaging, thoroughly clean the vibrating screen to remove dust and residues to ensure the cleanliness of the equipment.
(2) Packaging: Place the rotary vibrating screen into a wooden packaging box of appropriate size and seal the packaging box.
2.Transportation method: The transportation method of the rotary vibrating screen is usually determined based on its size, weight and destination. Common transportation methods include land transportation, sea transportation and air transportation.
FAQ
Q1: How to choose the right machine
A: Our engineers will provide suitable machine model based on the use condition of clients, so please let us know
below information:
What materials do you handle and the density.
What capacity do you need for one hour
What mesh number do you need
After knowing above info, our experts will work out the right model for your purpose.
Q2: How to deal with the noise produced by the vibrating screen during its operation?
A: The vibrating screen may produce noise during operation. The following measures can be taken to deal with it:
Ensure equipment is fixed and stable to reduce noise caused by vibration and resonance.
Regularly inspect and maintain equipment to ensure that all components are fastened and lubricated well.
Use soundproofing materials or noise reduction equipment, such as sound-absorbing mats, soundproof covers, etc., when necessary.
Comply with relevant noise safety standards and regulations and take appropriate personal protective measures, such as wearing earplugs or earmuffs.
