| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | EFYB |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Angle: | Adjustable | Function: | Screening\separation\sorting\sieving |
|---|---|---|---|
| Advantage: | Large Screening Area | Screen Mesh: | 2~500 Mesh |
| High Light: | 500mm Vibration Sifter,Rectangular Gyratory Vibration Sifter,Particles Slimes Rectangular Gyratory Sifter |
||

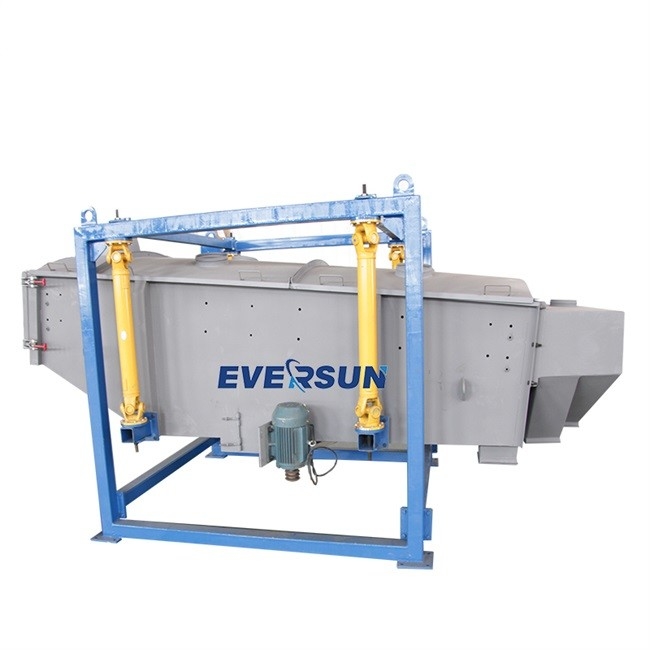

3-500mm rectangular gyratory sifter vibration sifter for particles slimes
The rectangular gyratory sifter is a low-noise and high-precision fine powder screening machine. It is suitable for sieving and filtering materials such as particles, powders, and slimes. Under normal conditions, the service life of the rectangular gyratory sifter can reach more than 20 years.
It is a screening equipment that can be designed and changed according to the customer’s material requirements. It can be made into a combination of a single box, double boxes, three boxes, and four boxes. It can also change the layer of the net in each layer of the box. Reasonably maximize the use of its screening advantages. One rectangular gyratory sifter can reach the screening efficiency of several traditional screening machines.
| Model | Layer | Effective screening area(m2) |
Angle degree |
Power (kw) |
Dimension (mm) |
| EFYB-1030 | 1~8 | 3 | 5~10 | 2.2 | 3600*1600*1800 |
| EFYB-1036 | 3.6 | 2.2 | 4200*1600*1800 | ||
| EFYB-1230 | 3.6 | 4 | 3600*1800*1800 | ||
| EFYB-1236 | 4.3 | 4 | 4200*1800*1800 | ||
| EFYB-1530 | 4.5 | 4 | 3600*2100*2000 | ||
| EFYB-1536 | 5.4 | 4 | 4200*2100*2000 | ||
| EFYB-1830 | 5.4 | 5.5 | 3600*2400*2400 | ||
| EFYB-1836 | 6.48 | 5.5 | 4200*2400*2400 | ||
| EFYB-2030 | 6 | 7.5 | 3600*2600*2400 | ||
| EFYB-2036 | 7.2 | 7.5 | 4200*2600*2400 |
One: wide application
The rectangular gyratory sifter is widely used in material screening, filtration, impurity removal, and classification in large-scale production lines in mineral processing, coal preparation, building materials, electric power, the chemical industry, and other industries. Such as mineral powder, slag, quartz ore, coke, petroleum coke, iron ore, sea placer, river sand, etc.
Two: better quality
The output per unit area of the rectangular gyratory sifter is up to 5 times; 6-stage separation, the screening efficiency is up to 90%; using silicone rubber balls, ultrasonic, and other cleaning equipment systems, the screen holes will not be blocked. Closed dust removal; the acceleration is 4-5 times lower than that of the vibrating screen, which can prolong the service life of the screening parts and reduce maintenance work; the noise is less than 75 decibels.
Three: The screening efficiency is relatively high
The mesh of the square swinging screen is generally between 3-50mm, and the processing capacity can reach 250t/h so that the screening does not block the hole; the fully enclosed solution is enough to prevent the material from spilling, and the sealing performance is good. At the same time, the square swinging screen is made of relatively high-quality steel, which is wear-resistant.
Four: Easy screen replacement
‘Quick chuck’ can automatically tighten the mesh surface and provide fast speed. The quick chuck is used to automatically tighten the screen and can fix the screen on the frame of the screen through the spring chuck. Maintaining a uniform tensile force on the entire screen surface ensures that the system has extremely high screening accuracy, reduces the problem of blockage, and increases the life of the screen. This design can quickly remove the screen, thereby greatly reducing downtime.
Application
Rectangular gyratory sifter is widely used in material screening, filtration, impurity removal, and classification in large-scale production lines in mineral processing, coal preparation, building materials, electric power, and chemical industries. Such as mineral powder, slag, quartz ore, coke, petroleum coke, iron ore, sea placer, river sand, etc. It is more convenient and faster to connect with the production line.
